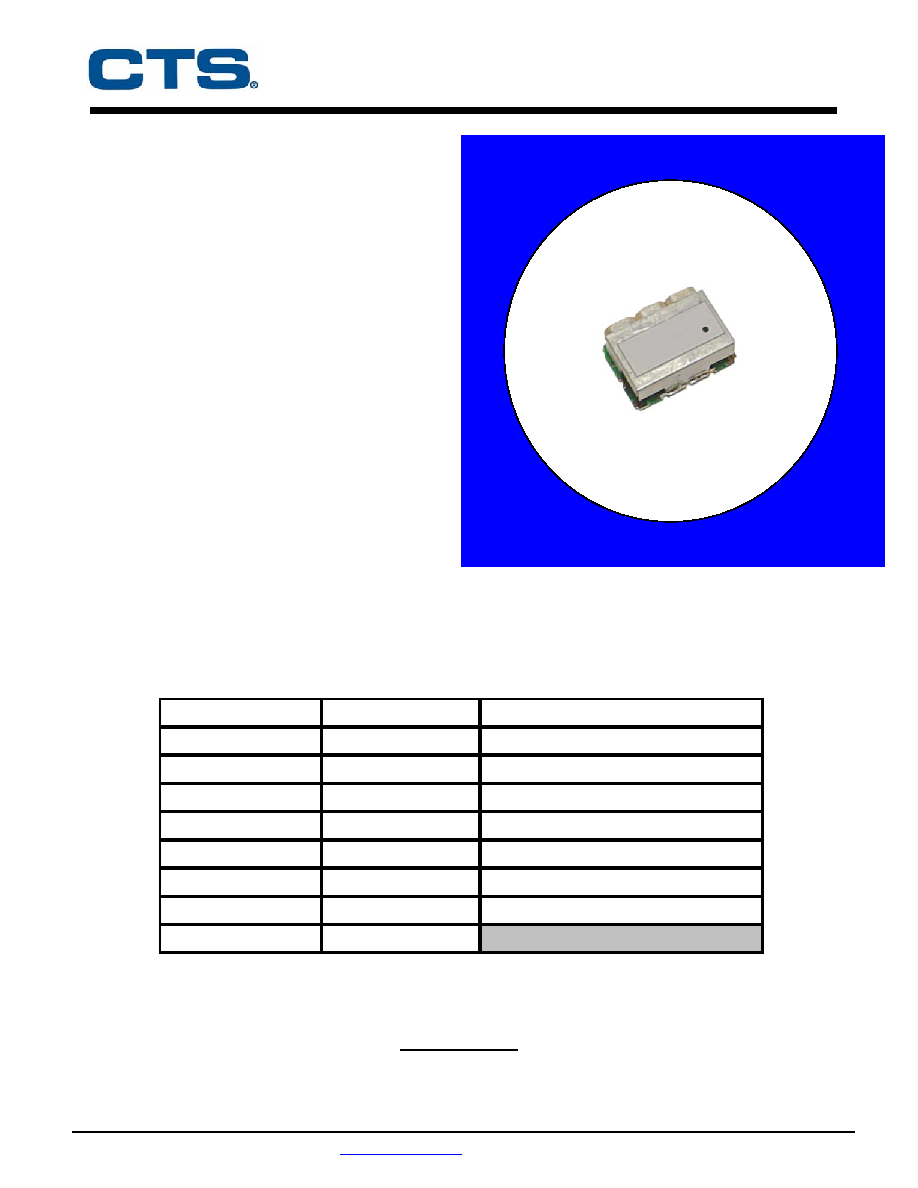

DCR0008A
881 MHz AMPS BPF
Rev 0 – Origin Date: November 13, 2006 – Revision Date November 13, 2006
Features
Low Loss
Symmetrical Attenuation
Surface Mount Device
Description
Silver (Ag) coated coupled ceramic
resonators mounted on PCB. Developed
for use AMPS telecommunications
infrastructure applications
Weight: 4.1 grams typical
Material: Filter is composed of coupled
ceramic resonators coated with AG
mounted on a FR4 PCB with cold rolled
steel shield
Filter complies with RoHS standards.
Electrical Specifications
Parameter
Frequency (MHz)
Specification @ -30
oC to 85oC
Insertion Loss
869 - 894
2.5 dB max
Return Loss
869 - 894
11 dB min
Ripple
869 - 894
1.0 dB max
Attenuation:
849
15 dB min
914
15 dB min
Power into any port
1 Watt max
Note: Supplier shall test each filter to the critical electrical specifications of the above table. Any subsequent audits may deviate from in value due to measurement
repeatability among different test systems. Such deviations shall not exceed the following limits:
Specification Allowance
Insertion Loss
0.1 dB
Return Loss
1.0 dB
Stopbands
1.0 dB
Document No. 008-0256-0
Page 1 of 2
Rev. X4VH
- CTS Electronic Components - www.ctscorp.com - 171 Covington Drive - Bloomingdale, IL 60108 -
