| 型號： | DG2043DN-T1-E4 |
| 廠商： | Vishay Siliconix |
| 文件頁數： | 1/13頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC SWITCH QUAD SPST 16QFN |
| 標準包裝： | 2,500 |
| 功能： | 開關 |
| 電路： | 4 x SPST - NC/NO |
| 導通狀態電阻： | 1.5 歐姆 |
| 電壓電源： | 單電源 |
| 電壓 - 電源，單路/雙路(±)： | 1.8 V ~ 5.5 V |
| 電流 - 電源： | 1nA |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-VQFN 裸露焊盤 |
| 供應商設備封裝： | 16-QFN（4x4） |
| 包裝： | 帶卷 (TR) |
Vishay Siliconix
DG2041, DG2042, DG2043
Document Number: 72091
S13-1285-Rev. C, 27-May-13
www.vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
For technical questions, contact: pmostechsupport@vishay.com
Low-Voltage, Low RON Quad SPST Analog Switch
DESCRIPTION
The DG2041/2042/2043 are quad single-pole/single-throw
monolithic
CMOS
analog
switch
designed
for
high
performance switching of analog signals. Combining low
power, fast switching, low on-resistance (RDS(on): 1 at
2.7 V) and small physical size, the DG2041/2042/2043 are
ideal for portable and battery powered applications requiring
high performance and efficient use of board space.
The DG2041/2042/2043 are built on Vishay Siliconix’s new
high density low voltage process. An epitaxial layer prevents
latchup.
Each switch conducts equally well in both directions when
on, and blocks up to the power supply level when off.
FEATURES
Low Voltage Operation (1.8 V to 5.5 V)
Low On-Resistance - RDS(on): 1
Fast Switching - 14 ns tON
Low Charge Injection - QINJ: 1 pC
Low Power Consumption
TTL/CMOS Compatible
TSSOP-16 and QFN-16 Packages
Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
BENEFITS
Reduced Power Consumption
Simple Logic Interface
High Accuracy
Reduce Board Space
APPLICATIONS
Cellular Phones
Communication Systems
Portable Test Equipment
Battery Operated Systems
Sample and Hold Circuits

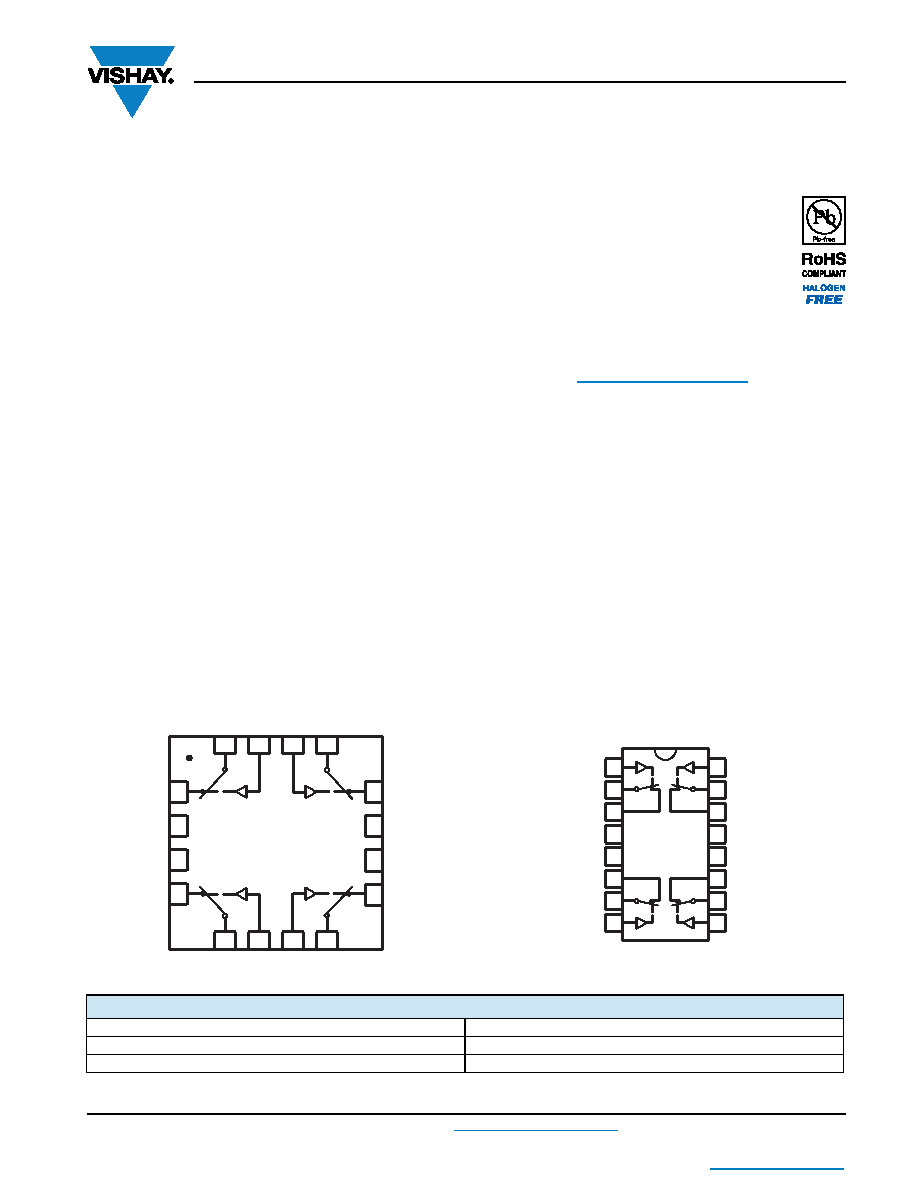

FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION - DG2041
Switches Shown for Logic “0” Input
DG2041DN
N.C.
V+
NC4
GND
NC3
N.C.
NC1
NC2
1
2
3
12
11
10
4
9
56
7
8
16
15
14
13
Top View
QFN-16 (4 x 4)
COM1
IN1
IN2
COM2
COM4
IN4
IN3
COM3
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
Top View
IN1
IN2
COM1
COM2
NC1
NC2
N.C.
V+
GND
N.C.
NC4
NC3
COM4
COM3
IN4
IN3
TSSOP
DG2041DQ
TRUTH TABLE - DG2041
Logic
Switch
0On
1Off
