MAX893L
1.2A, Current-Limited, High-Side
P-Channel Switch with Thermal Shutdown
_______________________________________________________________________________________
7
Thermal Shutdown
The MAX893L features thermal shutdown. The switch
turns off when the junction temperature exceeds
+165°C. Once the device cools by 10°C, the switch
turns back on. If the fault condition is not removed, the
switch will cycle on and off, resulting in a pulsed out-
put.
Fault Indicator
The MAX893L provides a fault output (FAULT). This
open-drain output goes low when in current limit or
when the die temperature exceeds +165°C. A 100k
pull-up resistor from FAULT to IN provides a logic-
control signal.
Fault Blanking
During start-up in USB applications, the MAX893L
charges the relatively large USB capacitance. This may
activate an unwanted fault signal if the charging current
exceeds the programmed current limit. To “blank out”
this start-up fault signal, add a simple lowpass RC
delay circuit as shown in Figure 3. This circuit provides
a 10ms delay.
Applications Information
Input Capacitor
To limit the input voltage drop during momentary output
short-circuit conditions, connect a capacitor no more
than 5mm from IN to GND. A 1F ceramic capacitor will
be adequate for most applications; however, higher
capacitor values will further reduce the voltage drop at
the input.
Output Capacitor
Connect a 0.1F capacitor from OUT to GND to prevent
inductive parasitics from pulling OUT negative during
turn-off.
Layout and Thermal-Dissipation
Considerations
To take full advantage of the switch-response time to
output short-circuit conditions, it is very important to
keep all traces as short as possible to reduce the effect
of undesirable parasitic inductance. Place input and
output capacitors as close to the device as possible
(no more than 5mm).
Under normal operating conditions, the package can
dissipate and channel heat away. Calculate the maxi-
mum power as follows:
P = (ILIMIT)2 RON
where RON is the on-resistance of the switch.
When the output is short circuited, the voltage drop
across the switch equals the input supply. Hence, the
power dissipated across the switch increases, as does
the die temperature. If the fault condition is not
removed, the thermal-shutdown protection circuitry
turns the switch off until the die temperature falls by
10°C. A ground plane in contact with the device will
help dissipate additional heat.
Chip Information
TRANSISTOR COUNT: 340
MAX893L
SET
RSET
GND

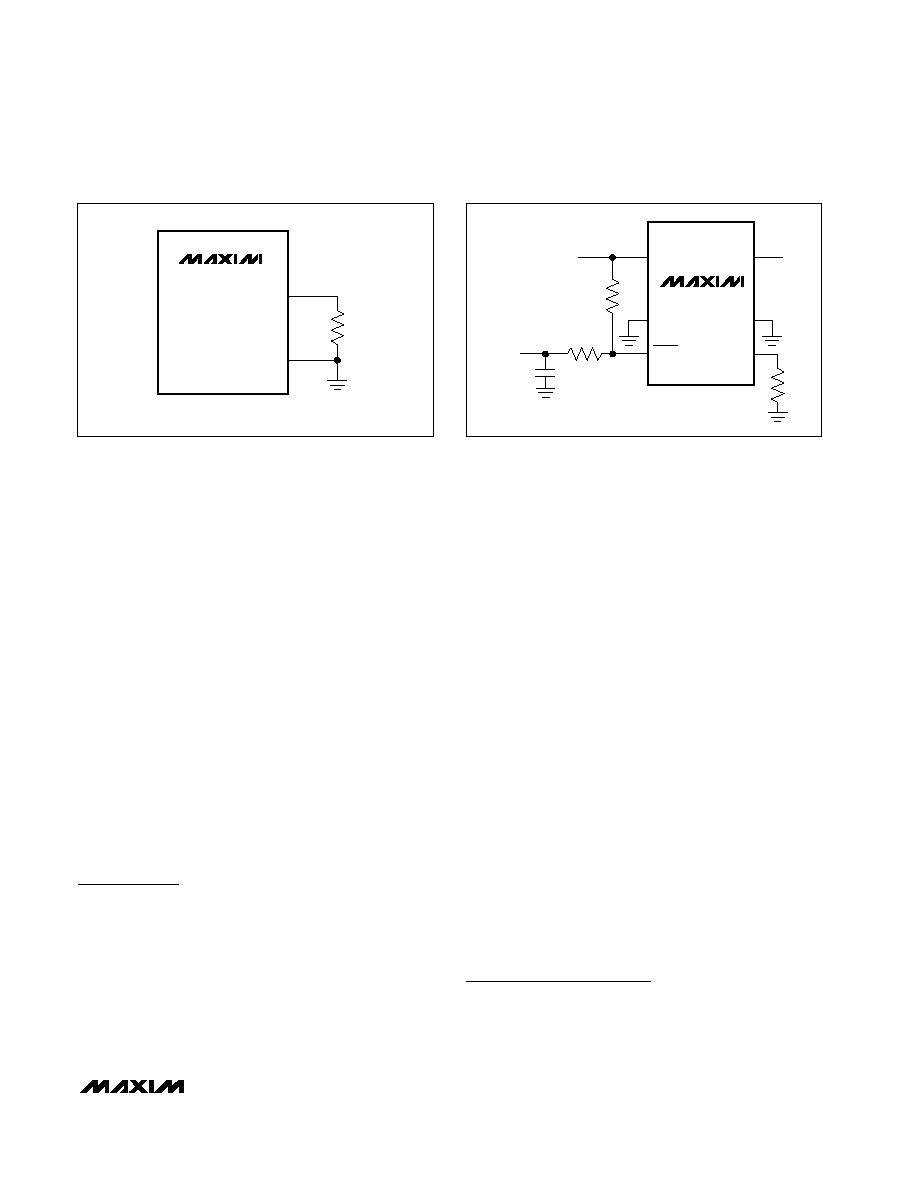

Figure 2. Setting the Current Limit
MAX893L
C
0.1
F
BLANKED
SIGNAL
TO P
R
100k
IN
VOUT
OUT
INPUT VOLTAGE
+5V
ON/OFF
GND
RSET
FAULT
SET
Figure 3. Fault-Blanking Circuit
