15801 Chemical Lane, Huntington Beach, CA 92649
Phone: (714) 898-0960
FAX: (714) 896-0971
NAME:
SHEET:
DATE:
RHOMBUS P/N:
CUST P/N:
Rhombus
Transformers & Magnetic Products
Industries Inc.
1 OF 1
1/26/00
F-172
www.rhombus-ind.com

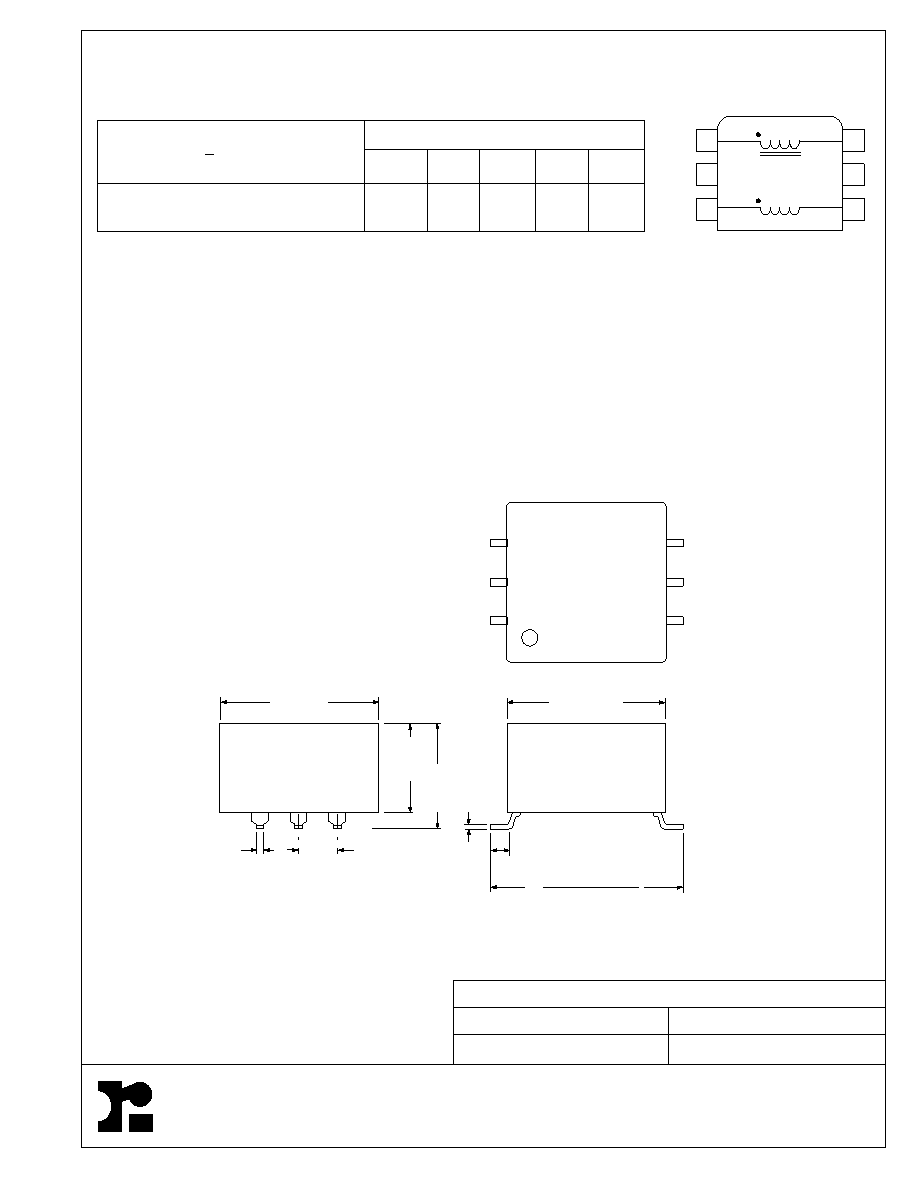

Physical
Dimensions
inches (mm)
6
4
2
5
3
1
MAX.
.260
(6.60)
MAX.
.300
(7.62)
MAX.
.410
.020
(0.51)
.100
(2.54)
TYP.
.010
(0.25)
.510 (12.95)
.480 (12.19)
MAX.
.410
(10.41)
.040
(1.02)
TYP.
(10.41)
TYP.
Surface Mount Common Mode Choke
Operating Temperature Range: -40 oC to +85 oC
Electrical Specifications at 25o C
Winding
DCR
Hi-Pot
Common Mode Attenuation Typ. (dB)
Part
OCL +30%
Max.
Min.
Number
( mH )
(
)
V
RMS
100k
500k
1M
5M
10M
F-172
4.7
1.0
1000
40
43
51
40
38
Schematic
Diagram
5
6
2
1
34
Designed and tested for reflow compatability.
100% incapsulated
Parts shipped in anti-static
tubes. 44 pieces per tube
Tape & Reel
Available
Flammability: Materials used in
the production of these units
meet requirements of UL94-VO
and IEC 695-2-2 needle flame
test.
