FAN8008
14
Rev. 1.0.1
February. 2000.
4. Regulator & Reset Function
The regulator and reset circuits are as illustrated in Figure 1.
where R1=R2.
The external circuit is composed of the transistor, KSB772 and a capacitor, about 33[
μ
F]. The capacitor is used as a ripple
eliminator and should have good temperature characteristics.
The regulator output voltage (pin 46) is decided as follows.
Vout = 2
×
1.65= 3.3[V] (where R1 = R2)
When the voltage of pin 43 (Vreset) is at 3.3[V], the regulator output voltage (pin 46) because 3.3[V]. If the voltage
of pin 43 is 0[V], the output voltage of pin 46 because 0[V].

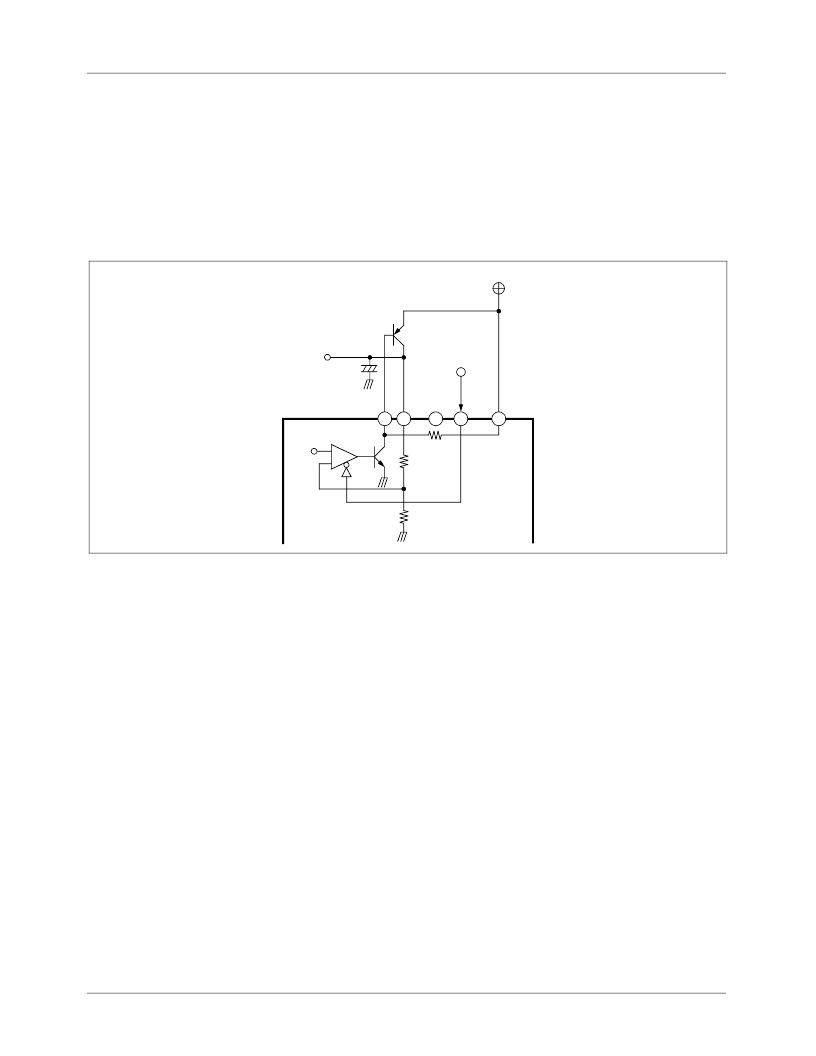

Figure 1. Regulator circuit
+
39
43
44
46
47
KSB772
REG OUT
V
CC
33
μ
F
2.5V
R1
R2
Vreset
+
FAN8008
