FP0100
Supertex inc.
1235 Bordeaux Drive, Sunnyvale, CA 94089
Tel: 408-222-8888
www.supertex.com

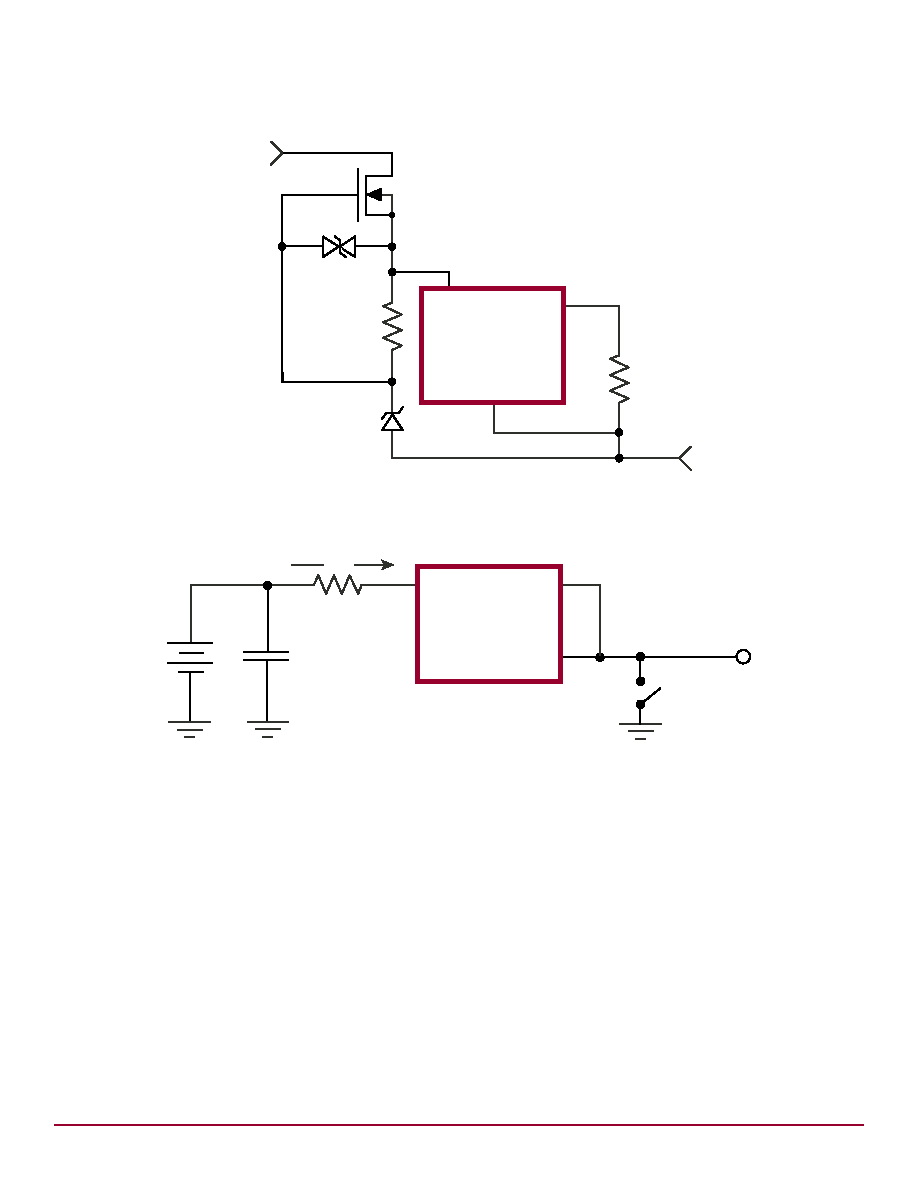

Figure 4. Higher Input Voltage Application
Figure 5. Short Circuit Test Performance
The FP0100 has a typical response time of less than 30ns.
The short circuit test set-up is shown in Figure 5. The output
is at 60V prior to a short. A 10Ω resistor is used to measure
the current going into the FP0100. A 220nF ceramic capaci-
tor is added on the input to supply any transient currents that
might occur. The waveform is shown in Figure 6. Channel 1
is the output voltage which is discharged to 0V. Channel 2 is
the voltage across the 10Ω resistor. The input current peaks
to 400mA then decays quickly within 20ns.
10
FP0100
+
60V
-
VIN
VOUT
RSEN
Short to
Ground
V
OUT
220nF
I
IN
FP0100
VIN
VOUT
RSEN
R
SEN
Input
0 to 450V
DN3545
±7.5V
150k
+
7.5V
-
Output
