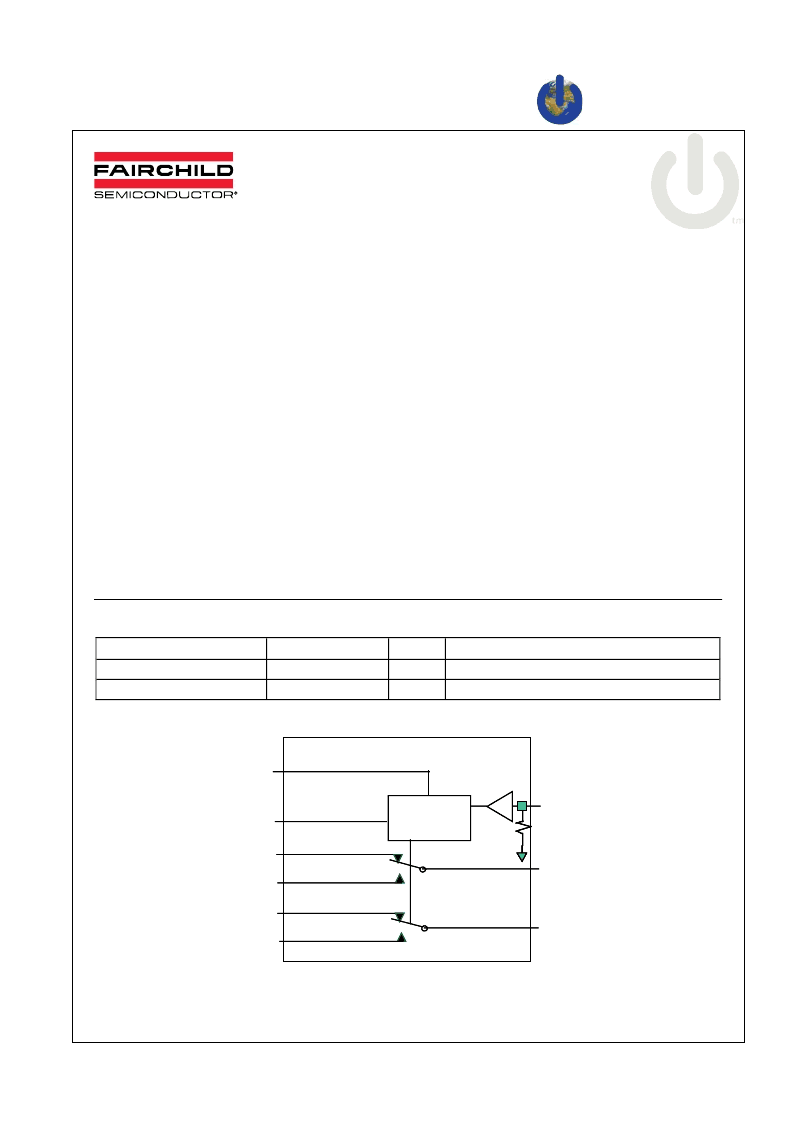

April 2007
2006 Fairchild Semiconductor Corporation
FSA201 Rev. 1.2.1
www.fairchildsemi.com
F
U
Click to see this datasheet
in Simplified Chinese!
FSA201 — USB2.0 Full-Speed and Audio
Switches with Negative Signal Capability
Features
3
Typical ON Resistance
-3db Bandwidth: > 250MHz
Low Power Consumption
Packaged in Pb-free 10-pin MSOP and
10-Lead MicroPak (1.6 x 2.1mm)
Power-off Protection on Common D+/R, D-/L Ports
Automatically Detects V
BUS
for Switch Path
Selection
Applications
Cell Phone, PDA, Digital Camera, and Notebook
LCD Monitor, TV, and Set-Top Box
Description
The FSA201 is a Double-Pole, Double Throw (DPDT)
multiplexer that combines a low-distortion audio and a
USB2.0 Full-Speed (FS) switch path. This configuration
enables audio and USB data to share a common
connector port. The architecture is designed to allow
audio signals to swing below ground. This means a common
USB and headphone jack can be used for personal media
players and similar portable peripheral devices.
Since USB2.0 is an industry standard for shared data-
path in portable devices, the FSA201 also incorporates
a V
BUS
detection capability. The FSA201 includes a
power-off feature to minimize current consumption when
V
BUS
is not present. This power-off circuitry is available
for the common D+/R, D-/L ports only. Typical
applications
involve
switching
consumer applications, such as cell phones, digital
cameras, and notebooks with hubs or controllers.
in
portables
and
Ordering Information
Part Number
Package Number Pb-Free
Packing Description
FSA201L10X
MAC010A
Yes
10-Lead MicroPak, JEDEC MO-255, 1.6 x 2.1mm
FSA201MUX
MUA10A
Yes
10-Lead MSOP, JEDEC MO-187, 3.0mm Wide
Vbus
Vaudio
Switch Select
Control Circuitry
D+/R
D-/L
D+
R
D-
L
ASel
R
pd
GND
Figure 1.
FSA201 Analog Symbol
