Ver: 0.4 Preliminary
Feb 03, 2005
TEL: 886-3-5788833
http://www.gmt.com.tw
9
G5920/G5921
Global Mixed-mode Technology Inc.

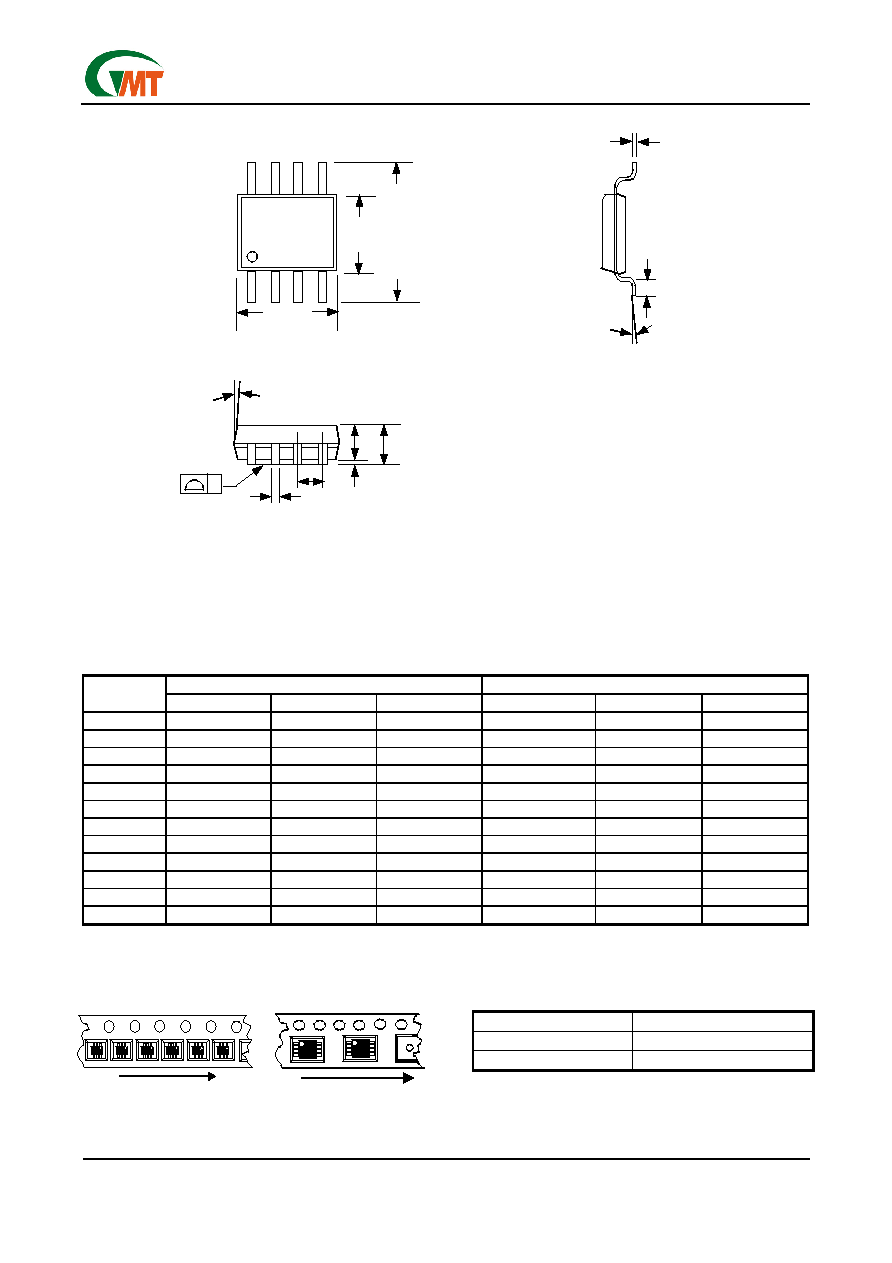

MSOP-8 (P8) Package
Note:
1. Package body sizes exclude mold flash and gate burrs
2. Dimension L is measured in gage plane
3. Tolerance 0.10mm unless otherwise specified
4. Controlling dimension is millimeter converted inch dimensions are not necessarily exact.
5. Followed from JEDEC MO-137
DIMENSION IN MM
DIMENSION IN INCH
SYMBOL
MIN.
NOM.
MAX.
MIN.
NOM.
MAX.
A
0.81
1.02
1.22
0.032
0.040
0.048
A1
0.00
-----
0.20
0.000
-----
0.008
A2
0.76
0.86
0.97
0.030
0.034
0.038
b
0.28
0.30
0.38
0.011
0.012
0.015
C
0.13
0.15
0.23
0.005
0.006
0.009
D
2.90
3.00
3.10
0.114
0.118
0.122
E
4.80
4.90
5.00
0.189
0.193
0.197
E1
2.90
3.00
3.10
0.114
0.118
0.122
e
-----
0.65
-----
0.026
-----
L
0.40
0.53
0.66
0.016
0.021
0.026
y
-----
0.10
-----
0.004
θ
0
-----
6
0
-----
6
Taping Specification
PACKAGE
Q’TY/REEL
SOT-23-6
3,000 ea
MSOP-8
2,500 ea
GMT Inc. does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and GMT Inc. reserves the right at any time without notice to change said circuitry and specifications.
D
E1
E
12
° (4X)
A1
A2
A
e
b
y
C
L
θ
D
E1
E
12
° (4X)
A1
A2
A
e
b
y
C
L
θ
Feed Direction
SOT- 23-6 Package Orientation
Feed Direction
Typical MSOP Package Orientation
Feed Direction
SOT- 23-6 Package Orientation
Feed Direction
Typical MSOP Package Orientation
