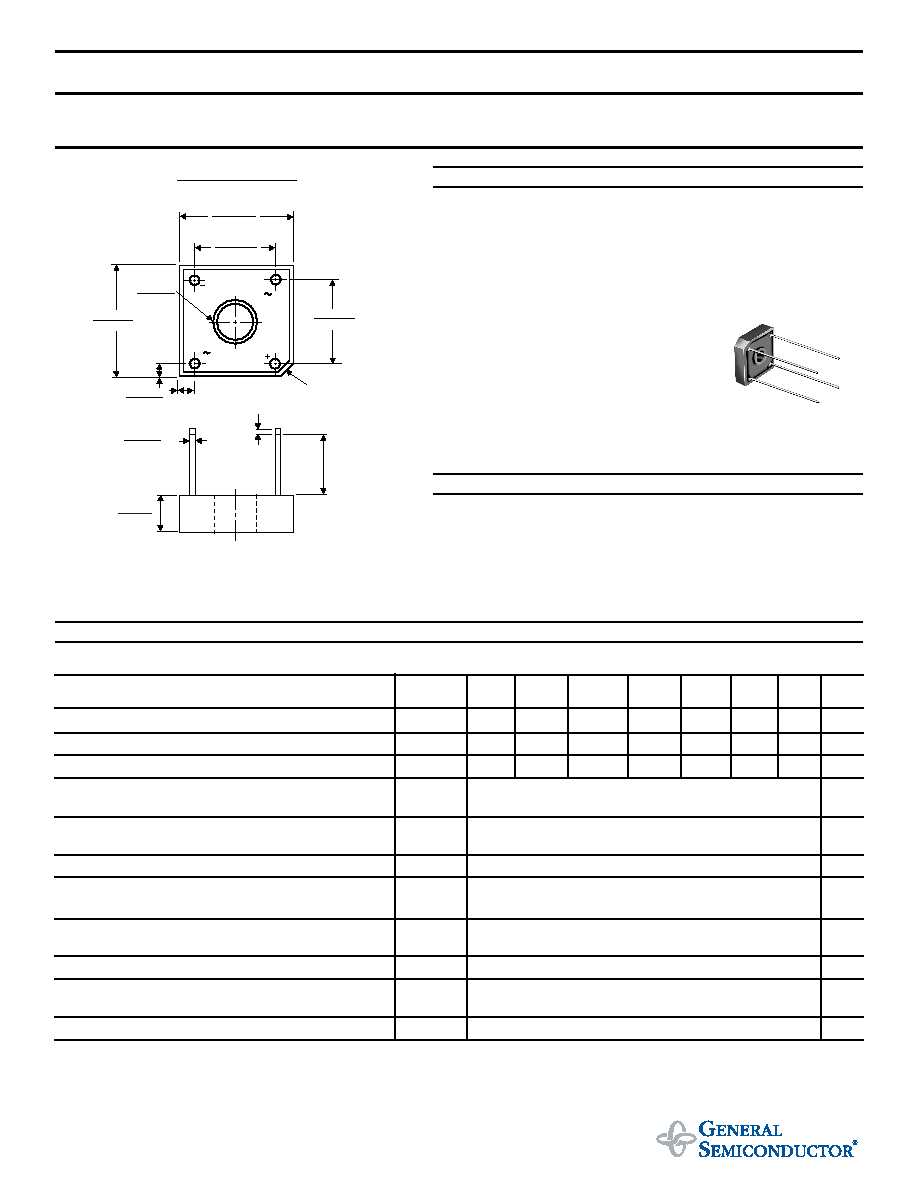

GBPC1005 THRU GBPC110
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Reverse Voltage - 50 to 1000 Volts
Forward Current - 3.0 Amperes
FEATURES
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
This series is UL listed under Recognized Component Index,
file number E54214
Glass passivated chip junctions
High case dielectric with standing voltage of 1500 VRMS
Typical IR less than 0.1A
High surge current capability
Ideal for printed circuit boards
High temperature soldering guaranteed:
260°C/10 seconds, 0.375" (9.5mm) lead length,
5lbs. (2.3kg) tension
MECHANICAL DATA
Case: Molded plastic body over passivated junctions
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position: Any (NOTE 1)
Mounting Torque: 5.0 in. - lb. max.
Weight: 0.1 ounce, 2.8 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
GBPC
SYMBOLS
1005
101
102
104
106
108
110
UNITS
Maximum repetitive peak reverse voltage
VRRM
50
100
200
400
600
800
1000
Volts
Maximum RMS bridge input voltage
VRMS
35
70
140
280
420
560
700
Volts
Maximum DC blocking voltage
VDC
50
100
200
400
600
800
1000
Volts
Maximum average forward
TC=60°C (NOTE 2)
3.0
rectified output current at
TA=25°C (NOTE 3)
I(AV)
2.0
Amps
Peak forward surge current single sine-wave
superimposed on rated load (JEDEC Method) TC=60°C
IFSM
60.0
Amps
Rating for fusing (t<8.3ms)
I2t
15.0
A2sec
Maximum instantaneous forward voltage drop
per leg at 1.5 Amperes
VF
1.0
Volts
Maximum DC reverse current at rated
TA= 25°C
5.0
DC blocking voltage per leg
TA=125°C
IR
500.0
A
Typical junction capacitance per leg (NOTE 4)
CJ
21.0
pF
Typical thermal resistance per leg (NOTE 2)
R
ΘJA
12.0
R
ΘJC
8.0
°C/W
Operating junction and storage temperature range
TJ, TSTG
-55 to +150
°C
NOTES:
(1) Bolt down on heat-sink with silicone thermal compound between bridge and mounting surface for maximum heat transfer with #6 screw
(2) Unit mounted on 4.0 x 4.0 x 0.11" thick (10.5 x 10.5 x 0.3cm) Al. Plate
(3) Unit mounted on P.C.B. at 0.375" (9.5mm) lead length with 0.5 x 0.5" (12 x 12mm) copper pads
(4) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
HOLE FOR
#6 SCREW
0.158 (4.01)
0.142 (3.61)
DIA.
0.128 (3.25)
0.048 (1.22)
0.200 (5.08)
0.160 (4.06)
0.750
(19.05)
MIN.
0.040 (1.02) TYP.
0.094 (2.4) x 45 degrees
0.445 (11.30)
0.405 (10.29)
0.630 (16.00)
0.590 (14.98)
AC
Polarity shown on side of case: Positive lead by beveled corner
0.445 (11.30)
0.405 (10.29)
0.630 (16.00)
0.590 (14.98)
0.032 (0.81)
0.028 (0.71)
DIA.
Case Style GBPC1
Dimensions in inches and (millimeters)
4/98
