HEAVY-DUTY RECTANGULAR
CONNECTORS WITH
REMOVABLE CONTACTS
Standard
Density
Rectangular
17
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Positronic Industries
.connectpositronic.com
GMCT
SERIES
17
DIMENSIONS ARE IN INCHES [MILLIMETERS].
ALL DIMENSIONS ARE SUBJECT TO CHANGE.
Conductor tensile strength values are derived using silver-tin plated copper wires.
Values may change depending upon what type of wire is used.
Wire Insulation,
Typical
Crimp to meet recommended
tensile strength.
Stripped wires compressed
for improved conduction.
8 Crimp
Indents
Crimp indents too close
to inspection hole.
Strands not visible
through inspection hole.
Strands visible beyond
insulation support.
Stripped part of
the wire too long.
Stripped part of
the wire too short.
Crimp indents
incorrectly located.
Step 3: Inspect the crimp.
For All Tools: - Strands to be visible through the inspection hole.
- Strands not to be visible beyond the insulation support.
- Crimped contact to meet recommended conductor tensile
force shown in chart.
- Check for peeled gold and bent contacts.
Correctly Crimped Contact
Cross Section
of Correctly Crimped Contact
Examples of Crimping Faults

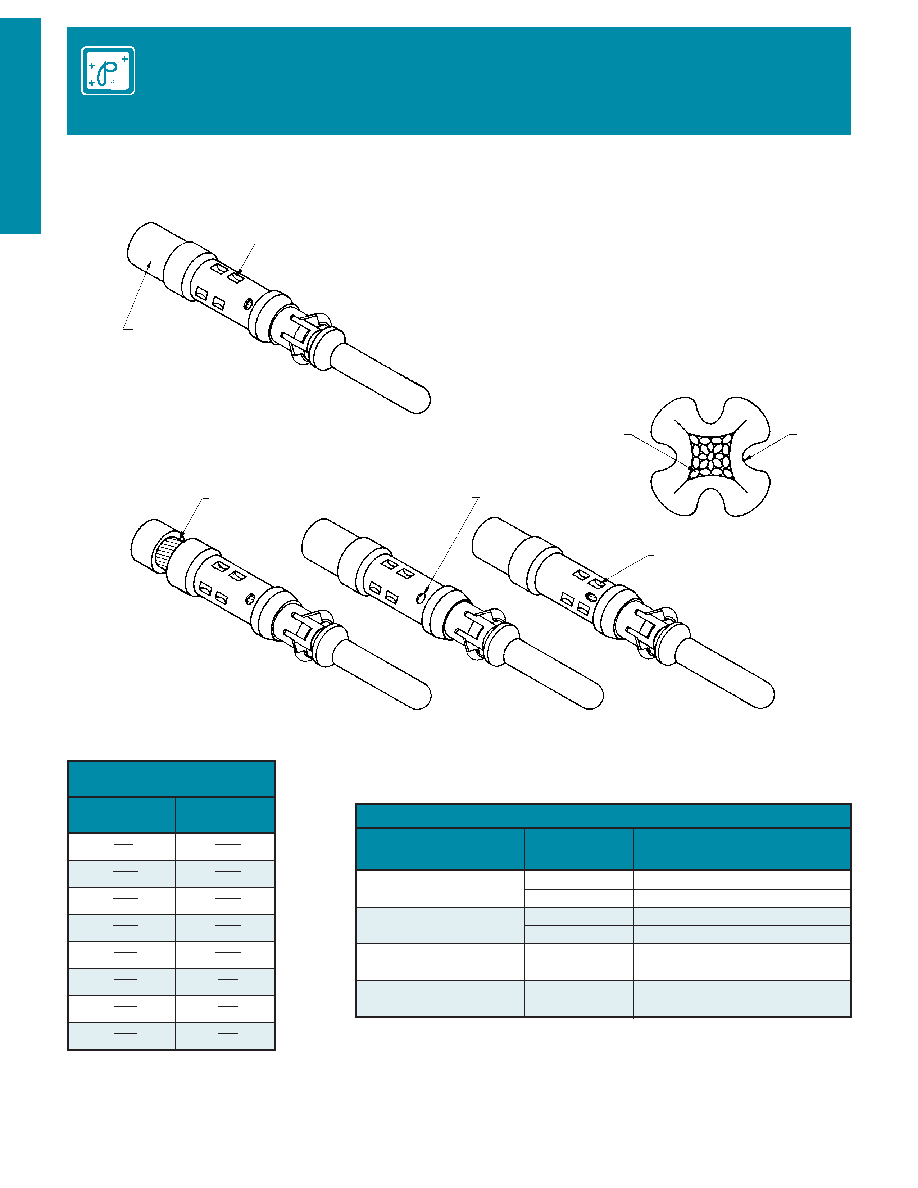

CRIMPING INFORMATION FOR GMCT SERIES CRIMP CONTACTS
Positronic Recommended
Conductor Tensile Strength
WIRE SIZE
AWG/[mm
2]
AXIAL LOAD
POUNDS/[N]
14
[2.5]
70
[311]
16
[1.5]
50
[222]
18
[1.0]
28
[125]
20
[0.5]
20
[89]
22
[0.3]
12
[53]
24
[0.25]
8
[36]
26
[0.12]
5
[22]
28
[0.08]
3
[13]
POSITRONIC RECOMMENDED TOOLS
TOOL TYPE
CONTACT SIZE
AWG [mm2]
TOOL NUMBERS
AUTOMATIC CRIMP TOOL:
14-24 [2.5-0.25]
9550-0-0-0
26-28 [0.12-0.08]
9550-1-0-0
HAND CRIMP TOOL:
14-24 [2.5-0.25]
9501-0-0-0 WITH 9502-1-0-0 POSITIONER
26-28 [0.12-0.08]
9507-0-0-0 WITH 9502-18-0-0 POSITIONER
INSERTION TOOL:
N/A
9099-0-0-0
EXTRACTION TOOL:
N/A
9081-0-0-0
