Page 6 of 9
Pin 1 (RMON) could be used for received power monitoring. Equivalent
internal circuit of RMON is shown in Figure 3. RMON should be connected
to VCC Via sensing resistor: Rs (Rs is recommended less than 150ohm.).
Typical response coefficient of the PD is 0.85 A/W. If this function is not
used, connect this pin to VCC directly.
8. Inspection
Inspection items are as follows:
(1) Appearance
(2) Dimensions
(3) Optical output power
(4) Optical waveform
(5) Optical input power
a) Average Sensitivity
b) Signal Detect / Decreasing Light Input
c) Signal Detect / Increasing Light Input
(6) Power supply current
9. Packing
The optical transceiver shall be packed in sturdy carton box(es) when
shipping.
Vcc

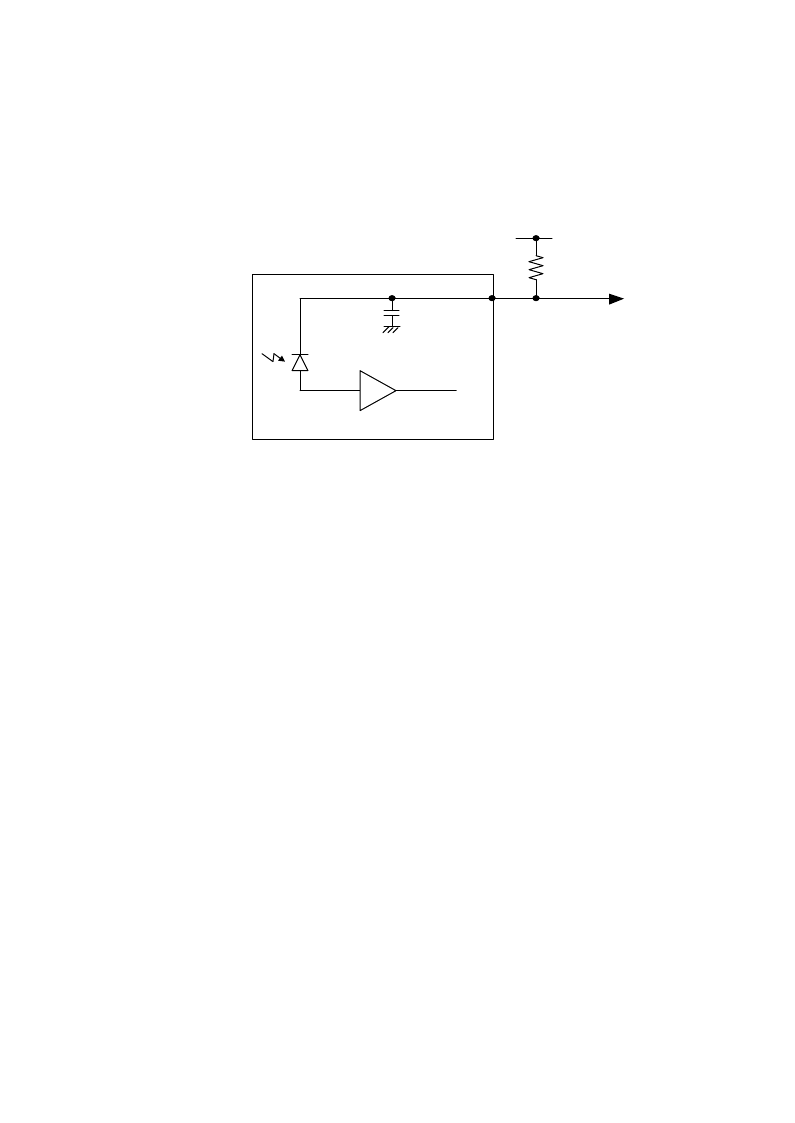

Figure 3. Equivalent internal Circuit of RMON
Rs
RMON
PD
Preamplifier
