參數資料
型號： IBM25PPC405GP-3BD266C
元件分類： 微控制器/微處理器
英文描述： RISC PROCESSOR, PBGA456
封裝： 35 MM, PLASTIC, BGA-456
文件頁數： 42/58頁
文件大?。?/td> 878K
代理商： IBM25PPC405GP-3BD266C

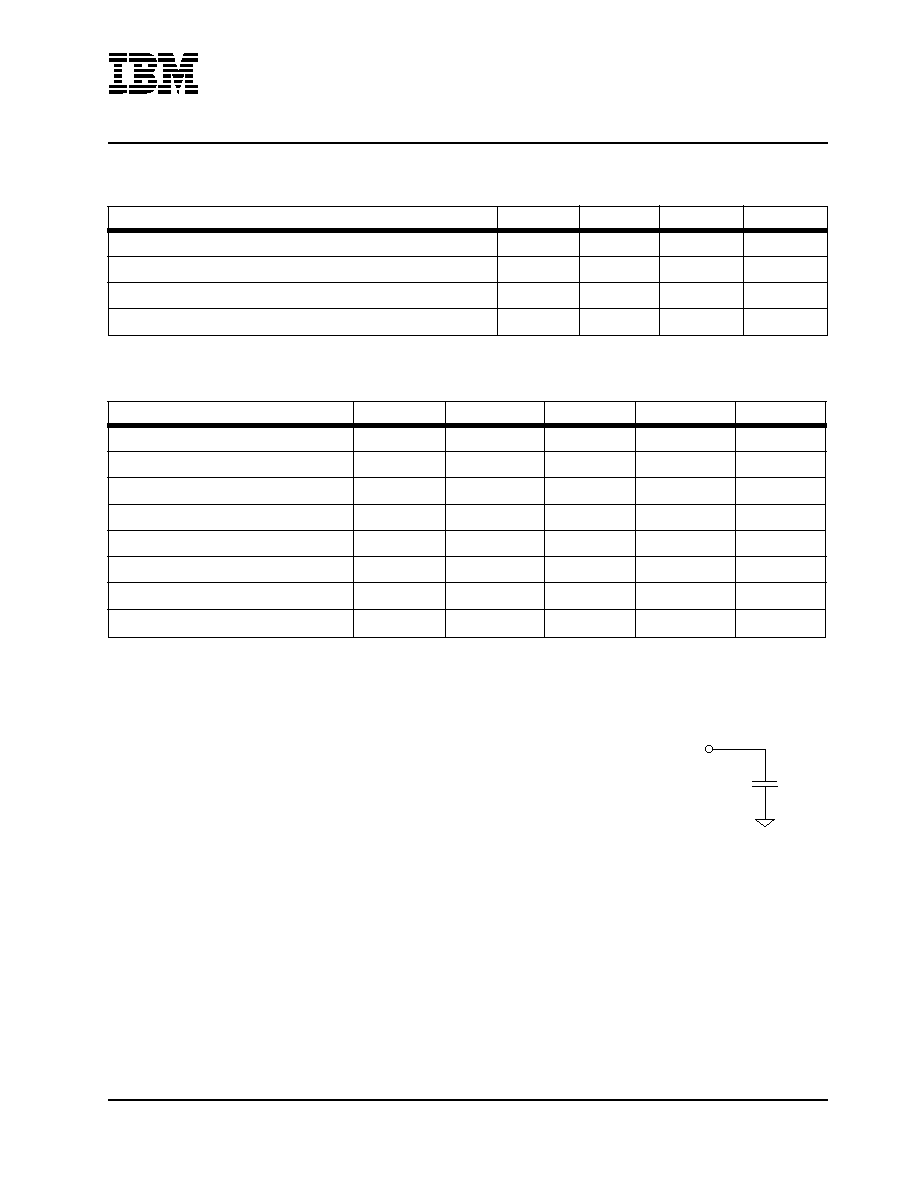

PowerPC 405GP Embedded Processor Data Sheet
47
Test Conditions
Clock timing and switching characteristics are specified in accordance
with operating conditions shown in the table “Recommended DC
Operating Conditions.” AC specifications are characterized at
VDD = 3.14V and TJ = 100C with the 50pF test load (CL) shown in
the figure at right.
Capacitance
Parameter
Symbol
Maximum
Unit
Notes
Input Capacitance Group 1 (3.3V LVTTL //O)
CIN1
2.5
pF
Input Capacitance Group 2 (5V tolerant LVTTL I/O)
CIN2
3.5
pF
Input Capacitance Group 3 (PCI I/O)
CIN3
5.0
pF
Input Capacitance Group 1 (RX only pins)
CIN4
0.75
pF
DC Electrical Characteristics
Parameter
Symbol
Minimum
Typical
Maximum
Unit
Active Operating Current (VDD)–200MHz
IDD
550
670
mA
Active Operating Current (VDD)–266MHz
IDD
730
880
mA
Active Operating Current (OVDD)–200MHz
IODD
35
37
mA
Active Operating Current (OVDD)–266MHz
IODD
37
40
mA
PLL Voltage (AVDD)VPLL
2.3
2.5
2.7
V
PLL VDD Input current
IPLL
16
23
mA
Active Operating Power–200MHz
PDD
1.5
2.01
W
Active Operating Power–266MHz
PDD
2.0
2.61
W
Notes:
1. VDD = 2.7V, OVDD = 3.6 V, TC = 85°C, PCI Clk = ???MHz, CPU/PLB/OPB/PCI = 266/133/66/33MHz.
Measurements taken across process (w/c silicon to b/c silicon), while running an instruction set designed to simulate a maximum
environment.
Output
Pin
CL
CL = 50pf for all signals
