參數資料
| 型號： | ICS83054AGILFT |
| 廠商： | IDT, Integrated Device Technology Inc |
| 文件頁數： | 1/8頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC CLOCK MUX 2:1 250MHZ 16-TSSOP |
| 標準包裝： | 2,500 |
| 系列： | HiPerClockS™ |
| 類型： | 多路復用器 |
| 電路數： | 4 |
| 比率 - 輸入:輸出： | 2:1 |
| 差分 - 輸入:輸出： | 無/無 |
| 輸入： | LVCMOS，LVTTL |
| 輸出： | LVCMOS，LVTTL |
| 頻率 - 最大： | 250MHz |
| 電源電壓： | 2.375 V ~ 3.465 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 16-TSSOP（0.173"，4.40mm 寬） |
| 供應商設備封裝： | 16-TSSOP |
| 包裝： | 帶卷 (TR) |
| 其它名稱： | 83054AGILFT |

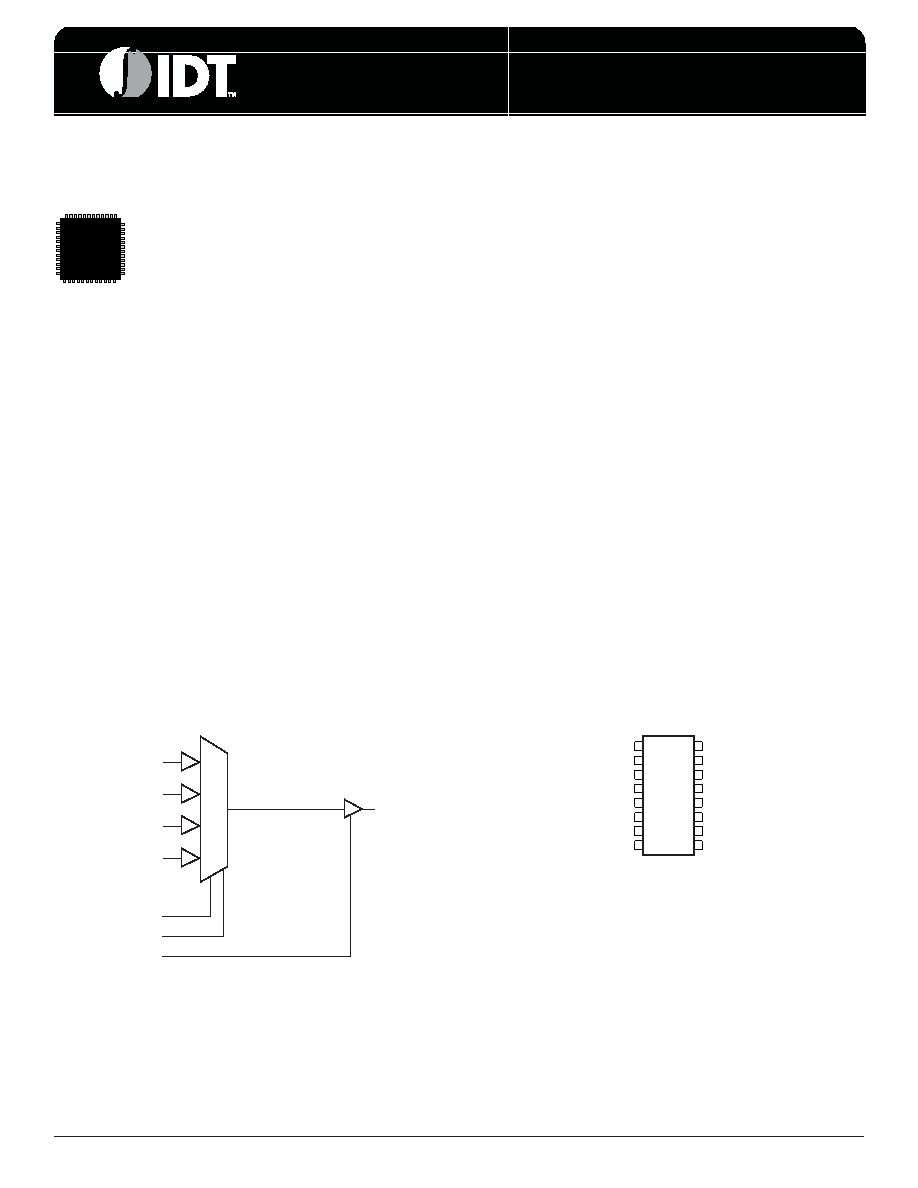

4:1, SINGLE-ENDED MULTIPLEXER
ICS83054I
IDT / ICS 4:1, SINGLE-ENDED MULTIPLEXER
1
ICS83054AGI REV. C MARCH 7, 2008
GENERAL DESCRIPTION
The ICS83054I is a low skew, 4:1, Single-ended
Multiplexer and a member of the HiPerClockS
family of High Performance Clock Solutions from
IDT. The ICS83054I has four selectable single-
ended clock inputs and one single-ended clock
output. The output has a V
DDO pin which may be set at 3.3V,
2.5V, or 1.8V, making the device ideal for use in voltage trans-
lation applications. An output enable pin places the output in
a high impedance state which may be useful for testing or
debug purposes. The device operates up to 250MHz and is
packaged in a 16 TSSOP package.
HiPerClockS
ICS
BLOCK DIAGRAM
PIN ASSIGNMENT
FEATURES
4:1 single-ended multiplexer
Q nominal output impedance: 7
Ω (V
DDO = 3.3V)
Maximum output frequency: 250MHz
Propagation delay: 3ns (maximum), V
DD = VDDO = 3.3V
Input skew: 225ps (maximum), V
DD = VDDO = 3.3V
Part-to-part skew: 780ps (maximum), V
DD = VDDO = 3.3V
Additive phase jitter, RMS: 0.19ps (typical), 3.3V/3.3V
Operating supply modes:
V
DD/VDDO
3.3V/3.3V
3.3V/2.5V
3.3V/1.8V
2.5V/2.5V
2.5V/1.8V
-40°C to 85°C ambient operating temperature
Available in both standard (RoHS 5) and lead-free (RoHS 6)
packages
CLK0
CLK1
CLK2
CLK3
SEL1
SEL0
OE
Q
nc
OE
CLK3
GND
nc
SEL1
CLK2
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VDDO
nc
CLK0
nc
VDD
nc
CLK1
ICS83054I
16-Lead TSSOP
4.4mm x 5.0mm x 0.92mm package body
G Package
Top View
