11/28/07
1
PD-xxxxx
IR3811MPbF
HIGHLY INTEGRATED 7A
WIDE-INPUT VOLTAGE, SYNCHRONOUS BUCK REGULATOR
Features
Wide Input Voltage Range 2.5V to 21V
Wide Output Voltage Range 0.6V to 12V
Continuous 7A Load Capability
600kHz High Frequency Operation
Programmable Over-Current-Protection
Hiccup Current Limit
Tracking capability for Memory Application
Precision Reference Voltage (0.6V)
Programmable Soft-Start
Pre-Bias Start-up
Thermal Protection
Thermally Enhanced Package
Small Size 5mmx6mm QFN
Pb-Free (RoHS Compliant)

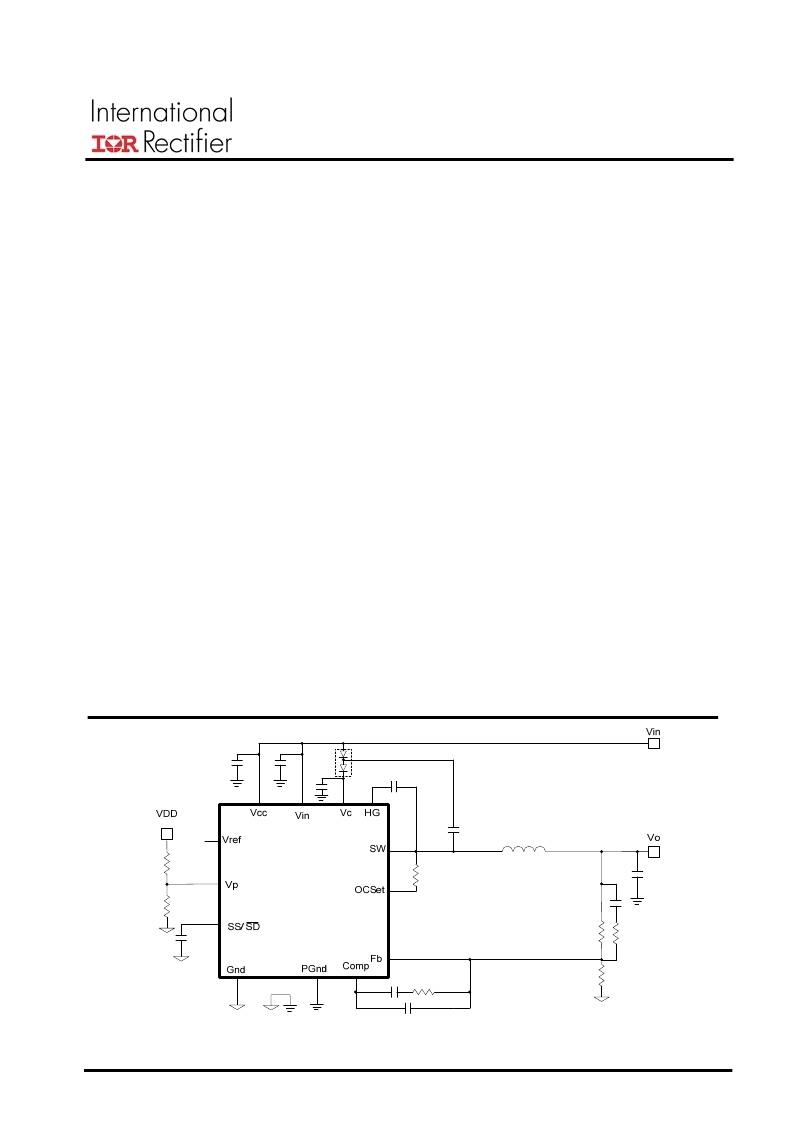

Fig. 1. Typical application diagram
Description
The IR3811
Sup
IR
Buck
TM
is an easy-to-use, fully
integrated and highly efficient DC/DC regulator.
The onboard switching controller and MOSFETs
make the IR3811 a space-efficient solution,
providing accurate power delivery for low output
voltage applications.
The IR3811 operates from a 4.5V to 14V input
supply
and
generates
adjustable from 0.6V to 0.80*Vin at loads up to 7A.
an
output
voltage
IR3811
applications to generate termination voltage (VTT)
for memory applications.
can
be
configured
for
tracking
A versatile regulator offering programmability of
start up time and current limit, the IR3811’s fixed
600kHz switching frequency allows the use of
small external components.
IR3811
functions, such as Pre-Bias startup, hiccup
current limit and thermal shutdown to provide the
required system level security in the event of fault
conditions.
also
features
important
protection
Applications
Distributed Point-of-Loads
Server and Workstations
Embedded Systems
Storage Systems
DDR Applications
Graphics Cards
Game Consoles
Computing Peripheral Voltage Regulators
Sup
IR
Buck
TM
