IRU1261
1
Rev. 2.0
09/19/02
www.irf.com
PACKAGE ORDER INFORMATION
TYPICAL APPLICATION
DESCRIPTION
The IRU1261, using a proprietary process, combines a
dual low dropout regulator with fixed outputs of 1.5V and
2.5V in a single package with the 1.5V output having a
minimum of 6A and the 2.5V having a 1A output current
capability. This product is specifically designed to pro-
vide well regulated supplies from 3.3V to generate 1.5V
for GTL+ termination resistor supply and 2.5V clock
supply for the new generation of the Pentium
II
TM
pro-
cessor applications.
DUAL 6A AND 1A LOW DROPOUT
POSITIVE FIXED 1.5V AND 2.5V REGULATOR

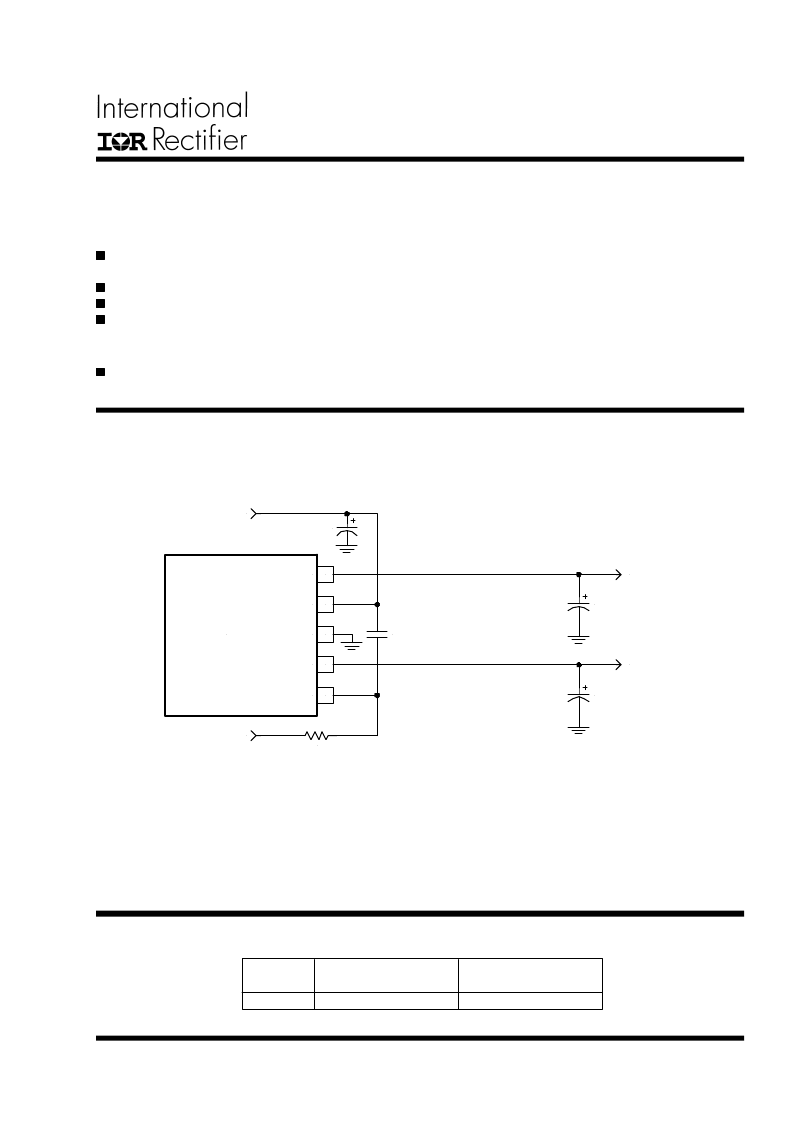

Figure 1 - Typical application of IRU1261 in a Pentium
II
TM
processor application.
Note:
Pentium
II
TM
is trademark of Intel Corp.
T
J
(
°
C) 5-PIN PLASTIC 5-PIN PLASTIC
TO-263 (M) Ultra Thin-Pak
TM
(P)
0 To 150 IRU1261CM IRU1261CP
Data Sheet No. PD94139
Pentium
II
TM
Processor Applications
FEATURES
Guaranteed to Provide 1.5V and 2.5V Supplies
with 3.1V Input
Fast Transient Response
1% Voltage Reference Initial Accuracy
Built-In Thermal Shutdown
APPLICATIONS
3.3V
2.5V / 1A
IRU1261
1.5V / 6A
C1
C3
C4
5V
C2
R1
1
2
3
4
5
V
CTRL
V
OUT
2
Gnd
V
IN
V
OUT
1
相關PDF資料
PDF描述
IRU3004 RES 374R 1/10W 1% 805 TF
IRU3004CF 5-BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC WITH DUAL LDO CONTROLLER
IRU3004CW 5-BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC WITH DUAL LDO CONTROLLER
IRU3007 5-BIT PROGRAMMABLE SYNCHRONOUS BUCK, NON-SYNCHRONOUS,ADJUSTABLE LDO AND 200mA ON-BOARD LDO
IRU3007CW 5-BIT PROGRAMMABLE SYNCHRONOUS BUCK, NON-SYNCHRONOUS,ADJUSTABLE LDO AND 200mA ON-BOARD LDO
