1
TM
File Number
4780.2
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
Intersil and Design is a trademark of Intersil Corporation.
Copyright Intersil Corporation 2000
Star*Power is a trademark of Intersil Corporation.
IS-1009RH
Radiation Hardened 2.5V Reference
The Star*Power Radiation Hardened
IS-1009RH is a 2.5V shunt regulator
diode designed to provide a stable 2.5V
reference over a wide current range.
The device is exceptionally stable over a wide current range
and is designed to maintain stability over the full miitary
temperature range and over time. It operates and is
specified at a lower minimum current than other 1009 types.
The 0.2% reference tolerance is achieved by on-chip
trimming.
An adjustment terminal is provided to allow for the calibration
of system errors. The use of this terminal to adjust the
reference voltage does not effect the temperature
coefficient.
Constructed with the Intersil dielectrically isolated EBHF
process, these devices are immune to Single Event Latch-up
and have been specifically designed to provide highly
reliable performance in harsh radiation environments.
Specifications for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed here must be used when ordering.
Detailed Electrical Specifications for these devices are
contained in SMD 5962-00523. A “hot-link” is provided
on our homepage for downloading.
www.intersil.com/spacedefense/space.htm

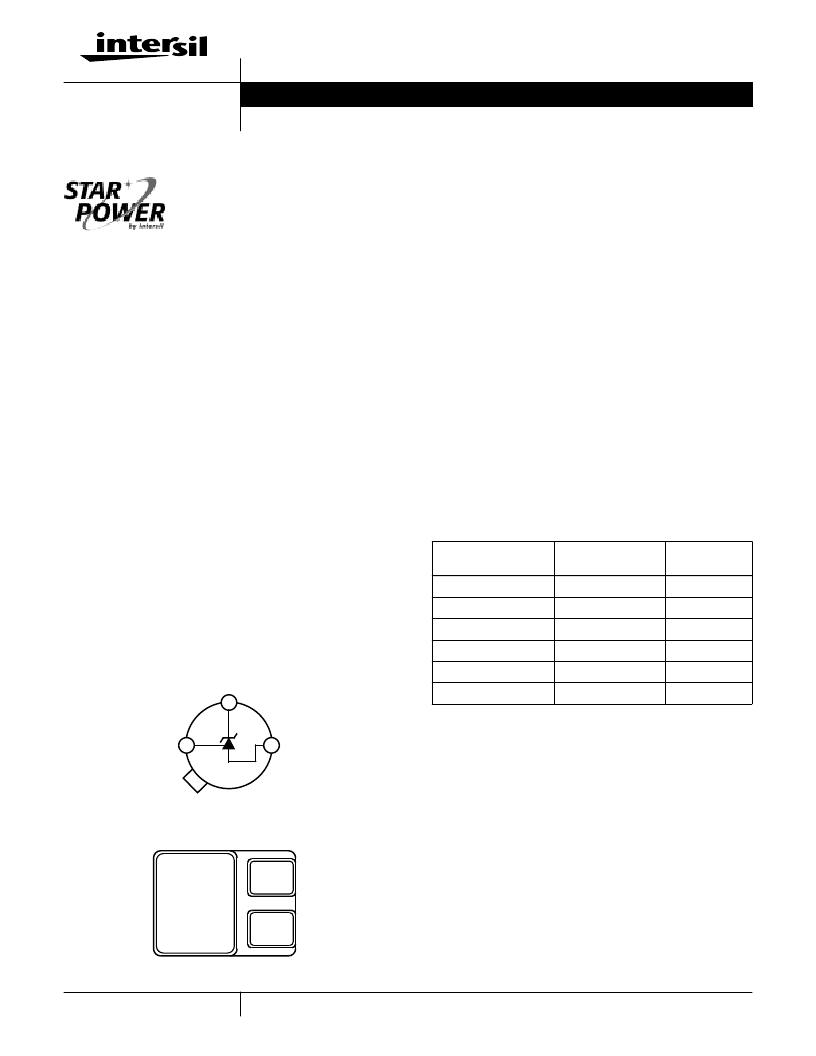

Pinouts
IS2-1009RH (TO-206AB CAN)
BOTTOM VIEW
ISYE-1009RH (SMD.5)
BOTTOM VIEW
Features
Electrically Screened to SMD # 5962-00523
QML Qualified per MIL-PRF-38535 Requirements
Radiation Environment
- Total Dose. . . . . . . . . . . . . . . . . . . . .300 krad(Si) (Max)
- Latch-up Immune . . . . . . . . . . . . .Dielectrically Isolated
Lower I
MIN
than Other 1009 Types . . . . . . . . . . . . 100
μ
A
Reverse Breakdown Voltage (V
Z
). . . . . . . . . . . . . . . . 2.5V
V
Z
vs. Change in Current (100
μ
A to 10mA). . . . . . . . 6mV
V
Z
vs. Temp (-55
o
C to 125
o
C) . . . . . . . . . . . . . . . . . 15mV
Max Reverse Breakdown Current . . . . . . . . . . . . . . 20mA
Interchangeable with 1009 and 136 Industry Types
Applications
Power Supply Monitoring
Reference for 5V Systems
A/D and D/A Reference
TM
2
1
3
V-
V+
ADJ
1
2
3
ADJ
V-
V+
Ordering Information
ORDERING NUMBER
INTERNAL
MKT. NUMBER
TEMP. RANGE
(
o
C)
5962F0052301VXC
IS2-1009RH-Q
-55 to 125
5962F0052301QXC
IS2-1009RH-8
-55 to 125
5962F0052301VYC
ISYE-1009RH-Q
-55 to 125
5962F0052301QYC
ISYE-1009RH-8
-55 to 125
IS2-1009RH/Proto
IS2-1009RH/Proto
-55 to 125
ISYE-1009RH/Proto
ISYE-1009RH/Proto
-55 to 125
Data Sheet
November 2000
