K4S280432B
CMOS SDRAM
Rev. 0.0 Aug. 1999
The
K4S280432B
is 134,217,728 bits synchronous high data
rate Dynamic RAM organized as 4 x 8,388,608 words by 4 bits,
fabricated with SAMSUNG
′
s high performance CMOS technol-
ogy. Synchronous design allows precise cycle control with the
use of system clock I/O transactions are possible on every clock
cycle. Range of operating frequencies, programmable burst
length and programmable latencies allow the same device to be
useful for a variety of high bandwidth, high performance mem-
ory system applications.
JEDEC standard 3.3V power supply
LVTTL compatible with multiplexed address
Four banks operation
MRS cycle with address key programs
-. CAS latency (2 & 3)
-. Burst length (1, 2, 4 & 8 Page )
-. Burst type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system
clock.
Burst read single-bit write operation
DQM for masking
Auto & self refresh
64ms refresh period (4K Cycle)
GENERAL DESCRIPTION
FEATURES

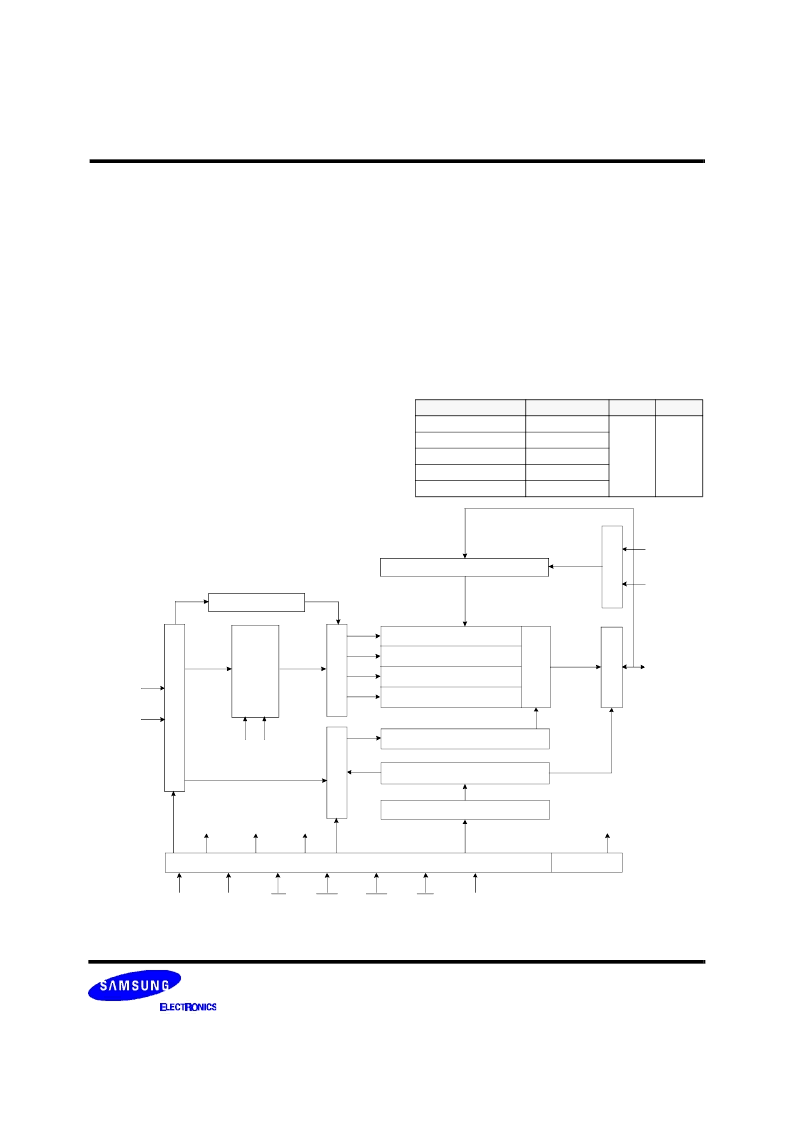

FUNCTIONAL BLOCK DIAGRAM
8M x 4Bit x 4 Banks Synchronous DRAM
Bank Select
Data Input Register
8M x 4
8M x 4
S
O
I
Column Decoder
Latency & Burst Length
Programming Register
A
R
R
R
C
L
L
LCKE
LRAS
LCBR
LWE
LDQM
CLK
CKE
CS
RAS
CAS
WE
DQM
LWE
LDQM
DQi
CLK
ADD
LCAS
LWCBR
8M x 4
8M x 4
Timing Register
* Samsung Electronics reserves the right to change products or specification without notice.
ORDERING INFORMATION
Part No.
Max Freq.
133MHz(CL=3)
125MHz(CL=3)
100MHz(CL=2)
100MHz(CL=3)
66MHz(CL=2 &3)
Interface Package
K4S280432B-TC/L75
K4S280432B-TC/L80
K4S280432B-TC/L1H
K4S280432B-TC/L1L
K4S280432B-TC/L10
LVTTL
54
TSOP(II)
