August 2000
Copyright 1999, 2000 by LSI Logic Corporation. All rights reserved.
1
L64733/L64734
Tuner and Satellite
Receiver Chipset
Datasheet
The L64733/34 chipset is designed specifically to meet the needs of
satellite broadcast digital TV and is compliant with the European digital
video broadcast (DVB-S) standard and the technical specifications for
DSS systems. The chipset forms a complete “L-Band to bits” system.
A typical application of the L64733/34 chipset is satellite digital TV
reception in accordance with ETS 300 421.
Figure 1
shows the
L64733/34 chipset satellite receiver implemented in a typical satellite
receiver set-top decoder box.

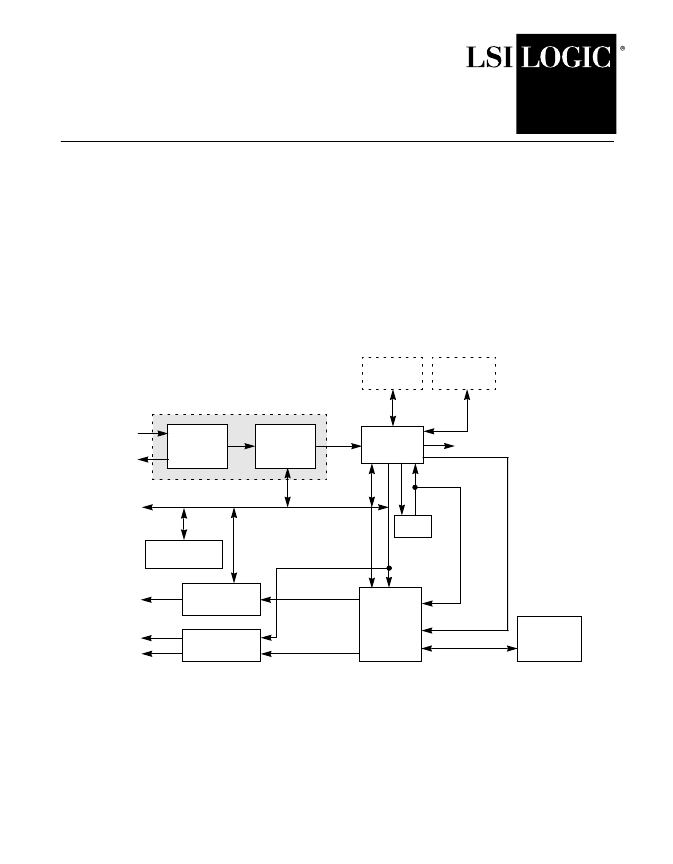

Figure 1
Block Diagram of Set-Top Decoder Box Using the L64733/34 Chipset
The L64733/34 chipset consists of the L64734 Satellite Receiver IC, the
L64733 Tuner IC, and an on-chip synthesizer.
Figure 2
shows a simplified
block diagram of this chipset.
CO
[7:0]
PCM
L64733
Transport
Demux
256K x 16
VCXO
256K x 64
256K x 32
DRAM
SDRAM
PAL / NTSC
Encoder
NTSC
PAL
S-Video
L-Speaker
R-Speaker
27 MHz
Audio/Video PES
CCIR601VIDEO
/
PCM AUDIO
Audio DAC
Satellite In
64/32
16
High-Speed
Port
8
Audio
Oversampling
Clock
/
/
8
/
8
3
/
2
/
Audio/Video
Decoder
Decryption
Engine
Optional
8
/
Microprocessor
L64733/L64734 Chipset
Optional
Microprocessor
Data and
Address Bus
L64734
RF Out
(Loop Through)
