Package information
L9407F
12/14
4
Package information
In order to meet environmental requirements, ST offers these devices in ECOPACK
packages. These packages have a lead-free second level interconnect. The category of
second level interconnect is marked on the package and on the inner box label,
incompliance with JEDEC Standard JESD97. The maximum ratings related to
solderingconditions are also marked on the inner box label. ECOPACK is an ST
trademark.ECOPACK specifications are available at www.st.com.
Figure 11.

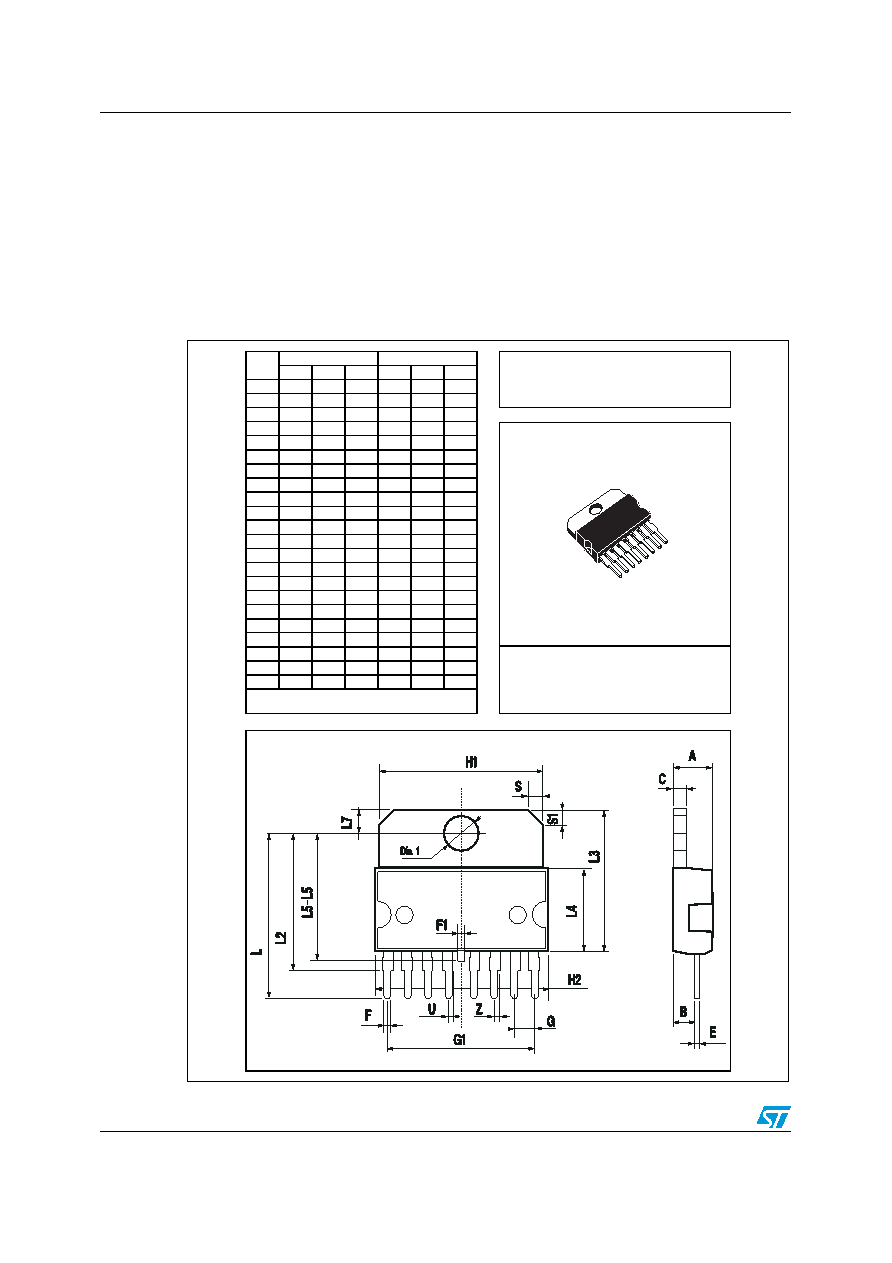

Multiwatt8 mechanical data and package dimensions
OUTLINE AND
MECHANICAL DATA
0043674 F
*
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A5
0.197
B
2.65
0.104
C1.6
0.063
E
0.49
0.55
0.019
0.022
F
0.78
0.85
0.030
0.033
F1
0.68
0.75
0.027
0.029
G
2.40
2.54
2.68
0.094
0.10
0.105
G1
17.64
17.78
17.92
0.69
0.70
0.71
H1
19.6
0.772
H2
20.2
0.795
L
20.35
20.65
0.80
0.81
L2
17.05
17.20
17.35
0.67
0.68
L3
17.25
17.5
17.75
0.679
0.689
0.699
L4
10.3
10.7
10.9
0.406
0.421
0.429
L5
15.45
15.75
0.61
0.62
L5*
15.05
15.35
0.59
0.60
L7
2.65
2.9
0.104
0.114
S
1.9
2.6
0.075
0.102
S1
1.9
2.6
0.075
0.102
U
0.40
0.55
0.015
0.022
Z
0.70
0.85
0.028
0.034
Dia1
3.65
3.85
0.144
0.152
L5 = with wedged frame std.
L5* = with wedged frame anchor holes.
Multiwatt8 (Floating)
