LA7358M
No.A0247-8/17

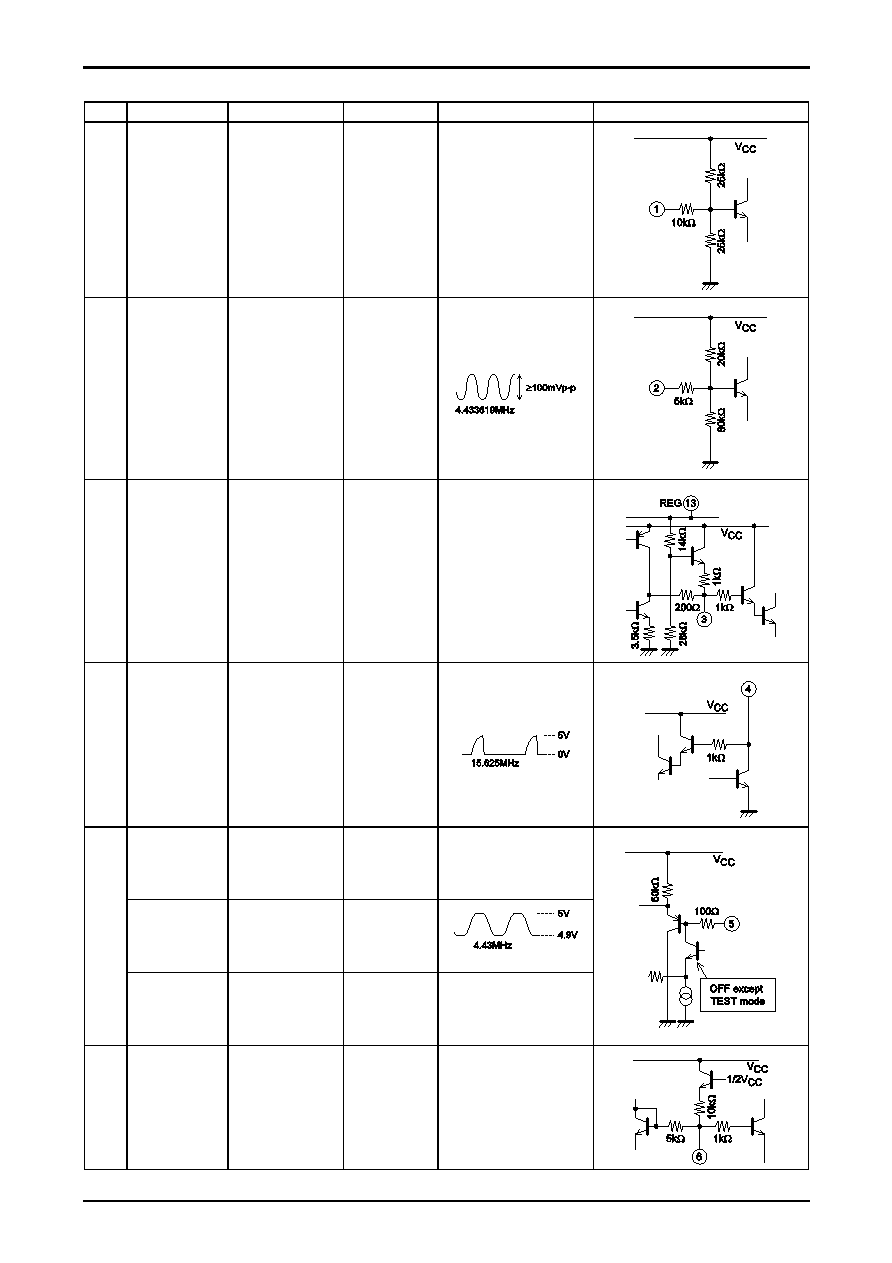

Pin equivalent circuit
Pin No.
Pin name
Function
DC voltage
Signal wave form
Equivalent circuit
1
MODE IN
2.5V
DC
2
CLK IN
4.0V
3
AFC-FILTER
3.5V
DC
4
BGP TIMING
1 to 5V
DET SENSE
An adjusting
sensitivity terminal
for SECAM detecting
circuit.
Add DC voltage
of 2V to 4V.
DC
VCO OUT
TEST MODE
4.9V
(TEST mode:
connect 1k
between VCC.)
5
TEST CTL
A setting terminal
for TEST mode.
Add DC voltage
of 4.5V to VCC.
DC
6
SH3
A terminal for
holdinglimiter
voltage of phase
detection output of
SECAM detection.
3.1V
DC
Continued on next page.
