LC86E7248
16/19
Table 1. Ceramic resonator oscillation guaranteed constant (main clock)
Oscillation type
Maker
6MHz ceramic resonator
oscillation
3MHz ceramic resonator
oscillation
Oscillator
C1
C2
* Both C1 and C2 must use K rank (
±
10%) and SL characteristics.
Table 2. Crystal oscillation recommended constant (sub clock)
Oscillation type
Maker
32.768kHz crystal
oscillation
Oscillator
C3
C4
Rd
* Both C3 and C4 must use J rank (
±
5%) and CH characteristics.
(It is about the application which is not in need of high precision. Use K rank (
±
10%) and SL characteristics.)
(Notes) Since the circuit pattern affects the oscillation frequency, place the oscillation-related parts as close
to the oscillation pins as possible with the shortest possible pattern length.
If you use other oscillators herein, we provide no guarantee for the characteristics.

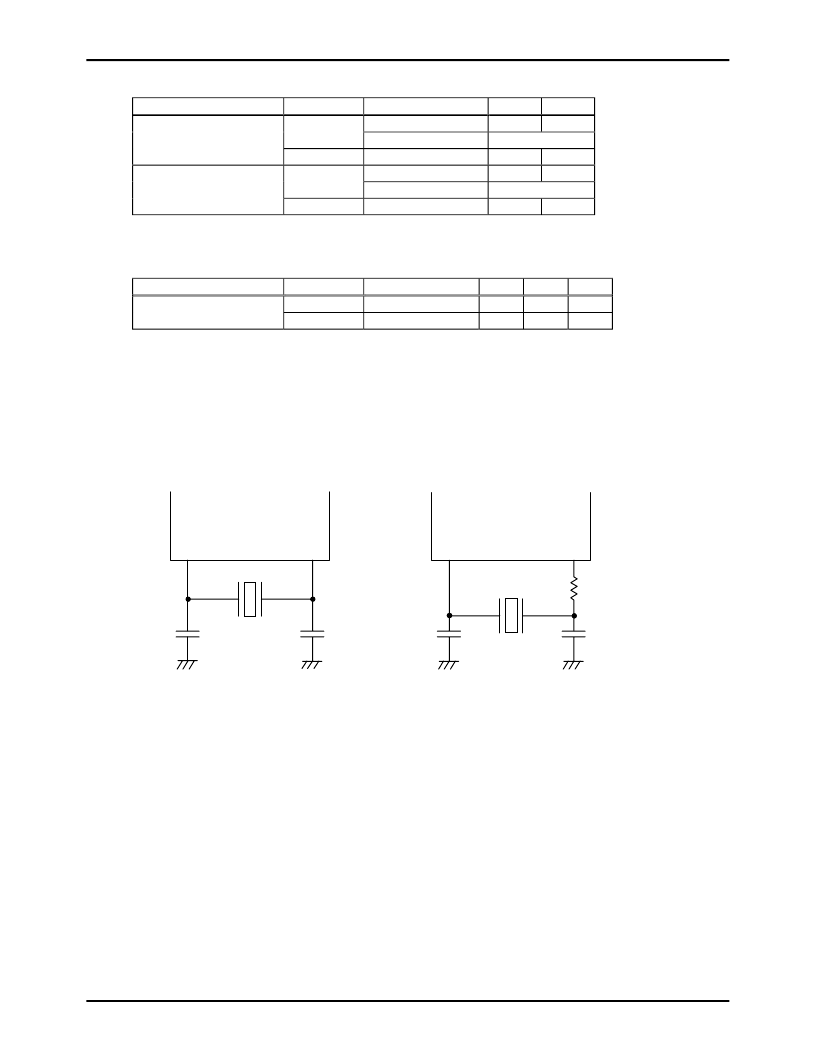

Figure 1 Ceramic oscillation circuit
Figure 2 Crystal oscillation circuit
CF1
CF2
C2
C1
CF
XT1
XT2
C4
C3
X’tal
Rd
