LC86P5032
No. 5631-18/22

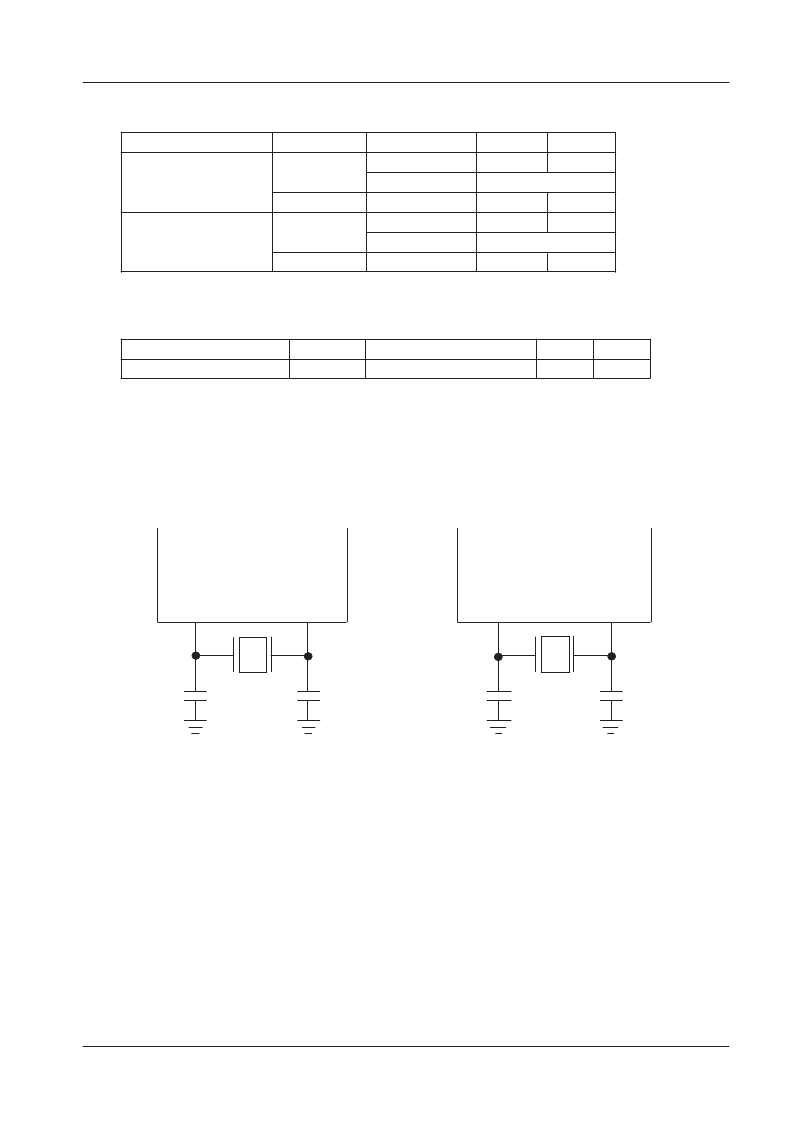

Main-clock circuit
Ceramic Resonator Oscillation
Sub-clock circuit
Crystal Oscillation
Figure 1
Figure 2
Table 1. Ceramic Resonator Oscillation Guaranteed Constants (Main clock)
Oscillation type
Supplier
Oscillator
C1
C2
12 MHz ceramic resonator
Murata
CSA12.0MTZ
33 pF
33 pF
oscillation
CST12.0MTW
on chip
Kyocera
KBR-12.0M
33 pF
33 pF
3 MHz ceramic resonator
Murata
CSA3.00MG040
100 pF
100 pF
oscillation
CST3.00MGW040
on chip
Kyocera
KBR-3.0MS
47 pF
47 pF
For both C1 and C2, the K rank (
±
10%) and SL characteristics must be used.
Table 2. Crystal Oscillaion Guaranteed Constants (Sub-clock)
Oscillation type
Supplier
Oscillator
C3
C4
32.768 kHz crystal oscillation
For both C3 and C4, the J rank (
±
5%) and CH characteristics must be used.
(If high precision is not necessary, use K rank (
±
10%) and SL characteristics.)
Kyocera
KF-38G-13P0200
18 pF
18 pF
Notes Since the circuit pattern affects the oscillation frequency, place the oscillation-related parts as close to the oscillation pins
as possible with the shortest possible pattern length.
If you use other oscillators herein, we provide no guarantee for the characteristics.
CF1
XT1
CF
X tal
C1
C2
C3
C4
XT2
CF2
