Single Ended Application Circuit (Continued)
External Components Description (Continued)
(
Figures 1, 2)
Components
Functional Description
5.
C
B
Bypass pin capacitor which provides half supply filtering. Refer to Application Information section for
proper placement and selection of bypass capacitor.
6. C
f (Note 10)
Used when a differential gain of over 10 is desired. C
f in conjunction with Rf creates a low-pass filter
which bandwidth limits the amplifier and prevents high frequency oscillation bursts. f
C = 1/(2π Rf Cf)
Note 10: Optional component dependent upon specific design requirements. Refer to the Application Information section for more in formation.

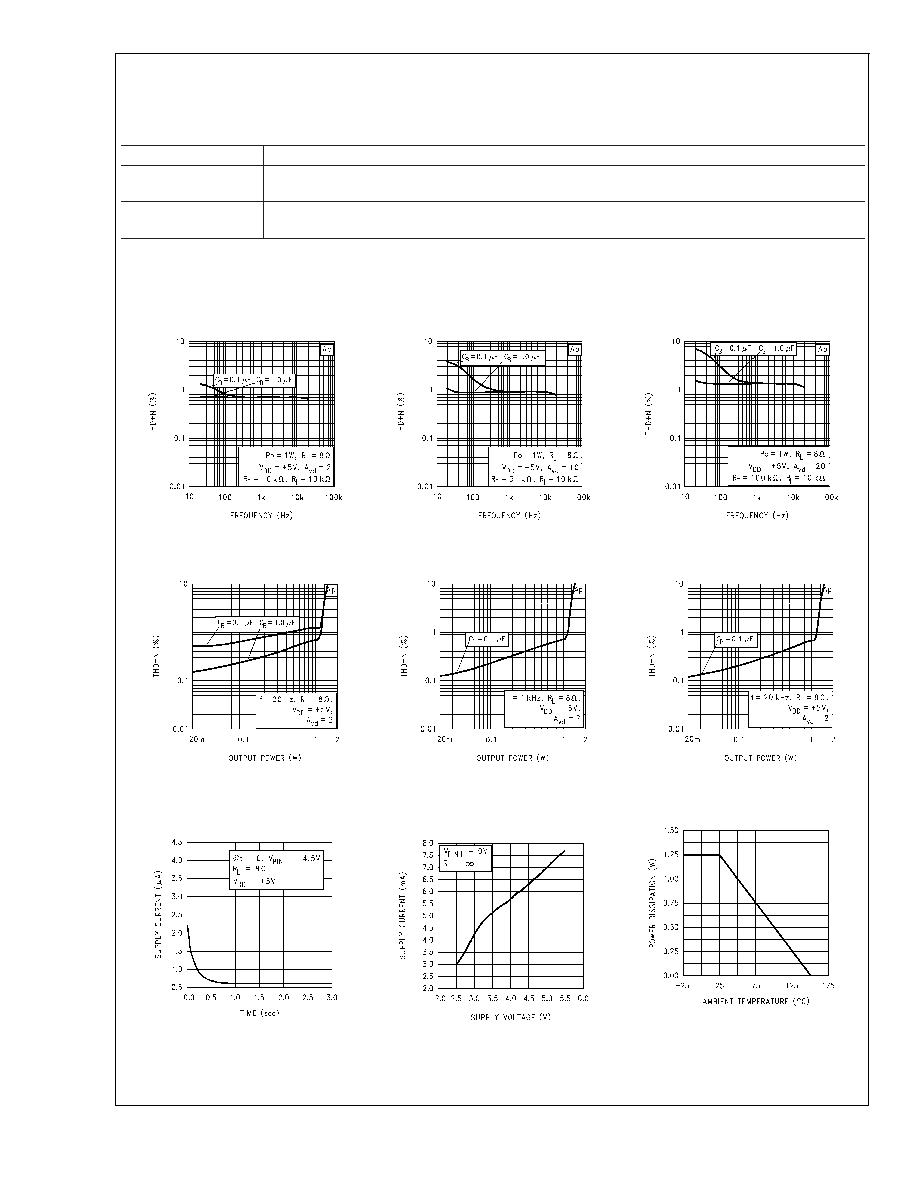

Typical Performance Characteristics
THD+N vs Frequency
DS011988-9
THD+N vs Frequency
DS011988-10
THD+N vs Frequency
DS011988-11
THD+N vs Output Power
DS011988-12
THD+N vs Output Power
DS011988-13
THD+N vs Output Power
DS011988-14
Supply Current vs Time
in Shutdown Mode
DS011988-15
Supply Current vs
Supply Voltage
DS011988-16
Power Derating Curve
DS011988-17
LM4860
www.national.com
4
