External Components Description
Components
1.
Functional Description
C
i
This is the input coupling capacitor. It blocks the DC voltage and couples the input signal to the
amplifier’s input terminals. C
IN
also creates a highpass filter with an internal 20k
resistor at f
c
=
1/(2
π
.20000.C
i
).
This is the supply bypass capacitor. It filters the supply voltage applied to the V
DD
pin and helps
reduce the noise at the V
DD
pin.
This capacitor creates a low pass filter with an internal 4k
resistor at f
c
= 1/(2
π
*4000*C
filt
). This pole
set at f
c
determines the high cutoff frequency for the low band PWM color LED driver output, LED1.
2.
C
S
3.
C
filt
Typical Performance Characteristics
(Note 11)

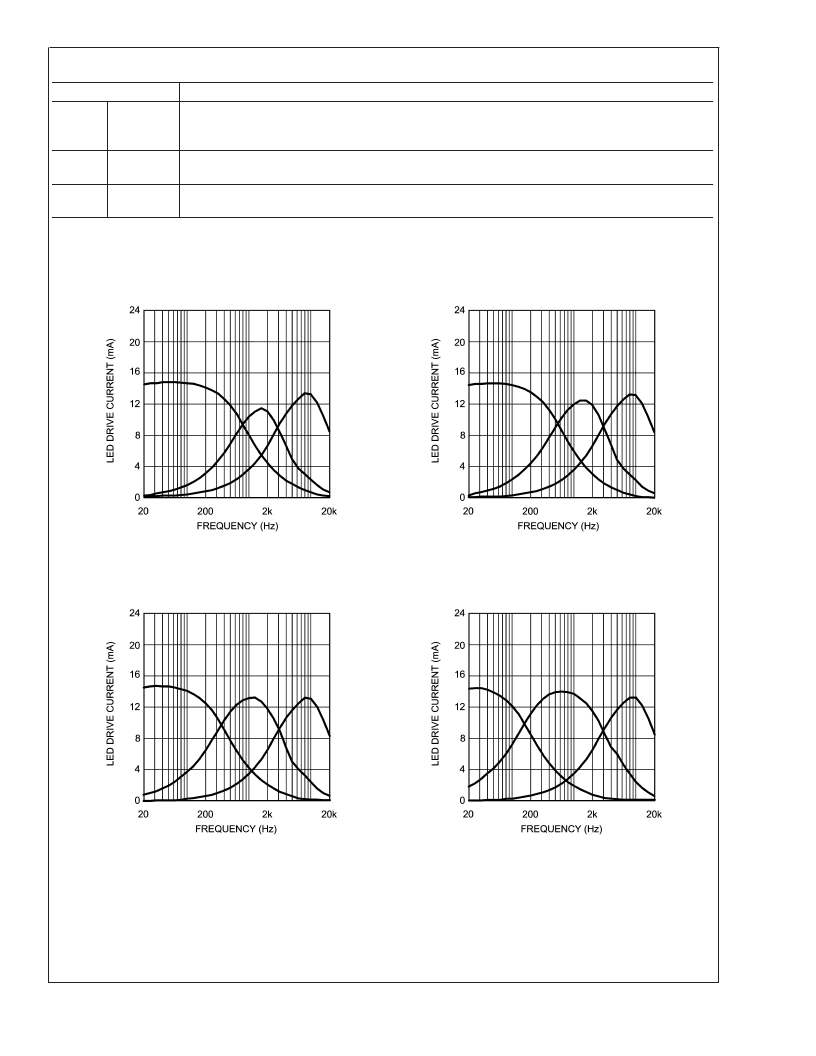

Audio Sync LED Frequency Response
(Left - lowband, Mid - midband, Right - highband)
(Cfilt = 0.047μF, HPF = 3.5kHz setting)
Audio Sync LED Frequency Response
(Left - lowband, Mid - midband, Right - highband)
(Cfilt = 0.068μF, HPF = 3.5kHz setting)
20121265
20121266
Audio Sync LED Frequency Response
(Left - lowband, Mid - midband, Right - highband)
(Cfilt = 0.1μF, HPF = 3.5kHz setting)
Audio Sync LED Frequency Response
(Left - lowband, Mid - midband, Right - highband)
(Cfilt = 0.22μF, HPF = 3.5kHz setting)
20121267
20121268
L
www.national.com
5
