Overload Protection Timer
(Continued)
3.
Delayed Hiccup:
The most common configuration as
previously described, is a programmed interval of cycle-
by-cycle limiting before initiating a hiccup mode restart.
The advantage of this configuration is short term over-
load conditions will not cause a hiccup mode restart,
however during extended overload conditions the aver-
age dissipation of the power converter will be very low.
4.
Externally Controlled Hiccup:
The RES pin can also
be used as an input. By externally driving the pin to a
level greater than the 2.5V hiccup threshold, the control-
ler will be forced into the delayed restart sequence. If the
RES pin is used as an input, the driving source should
be current limited to less than 5 mA. For example, the
external trigger for a delayed restart sequence could
come an over-temperature protection circuit.
Oscillator and Sync Capability
The LM5026 oscillator frequency is set by the external resis-
tance connected between the RT pin and ground (AGND).
To set a desired oscillator frequency (F) the necessary value
of total R
T
resistance can be calculated from:
The R
T
resistor(s) should be located very close to the device
and connected directly to the pins of the IC (RT and AGND).
The SYNC pin can be used to synchronize the internal
oscillator to an external clock. An open drain output is the
recommended interface between the external clock to the
LM5026 SYNC pin as illustrated in
Figure 8
. The clock pulse
width must be greater than 15 ns. The external clock fre-
quency must be a higher than the free running frequency set
by the R
T
resistance.

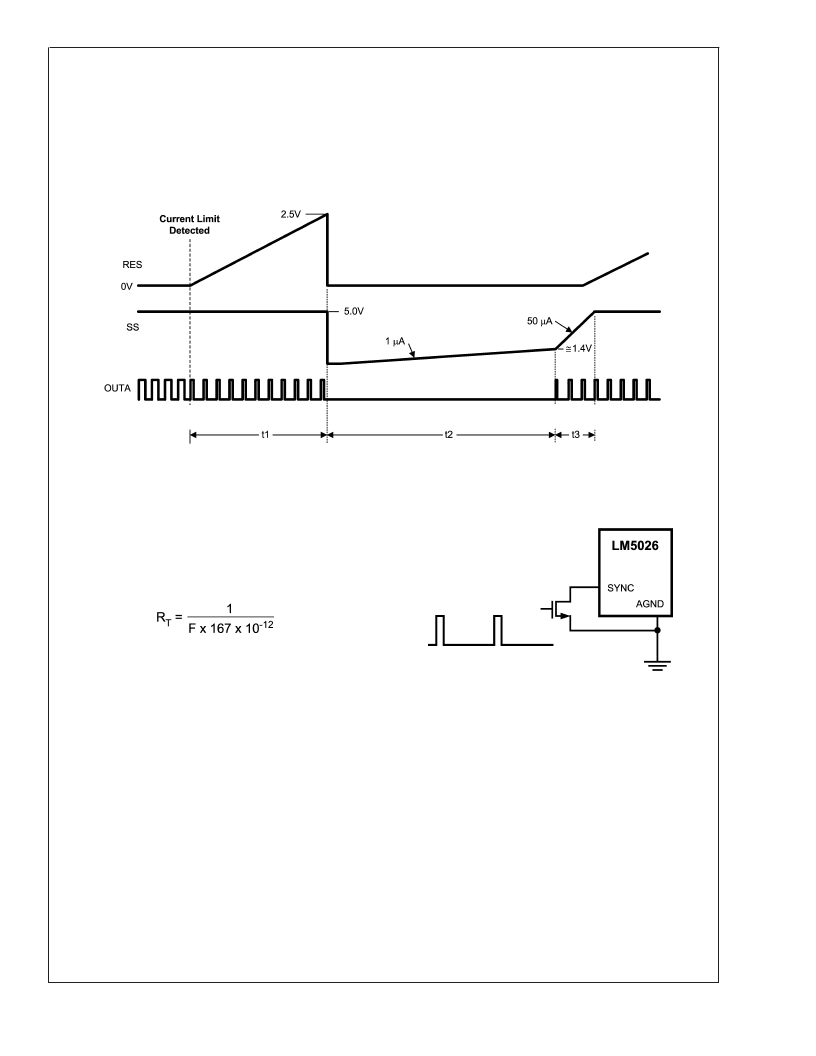

20147918
FIGURE 7. Hiccup Over-Load Restart Timing
20147919
FIGURE 8. Sync from External Clock
L
www.national.com
15
