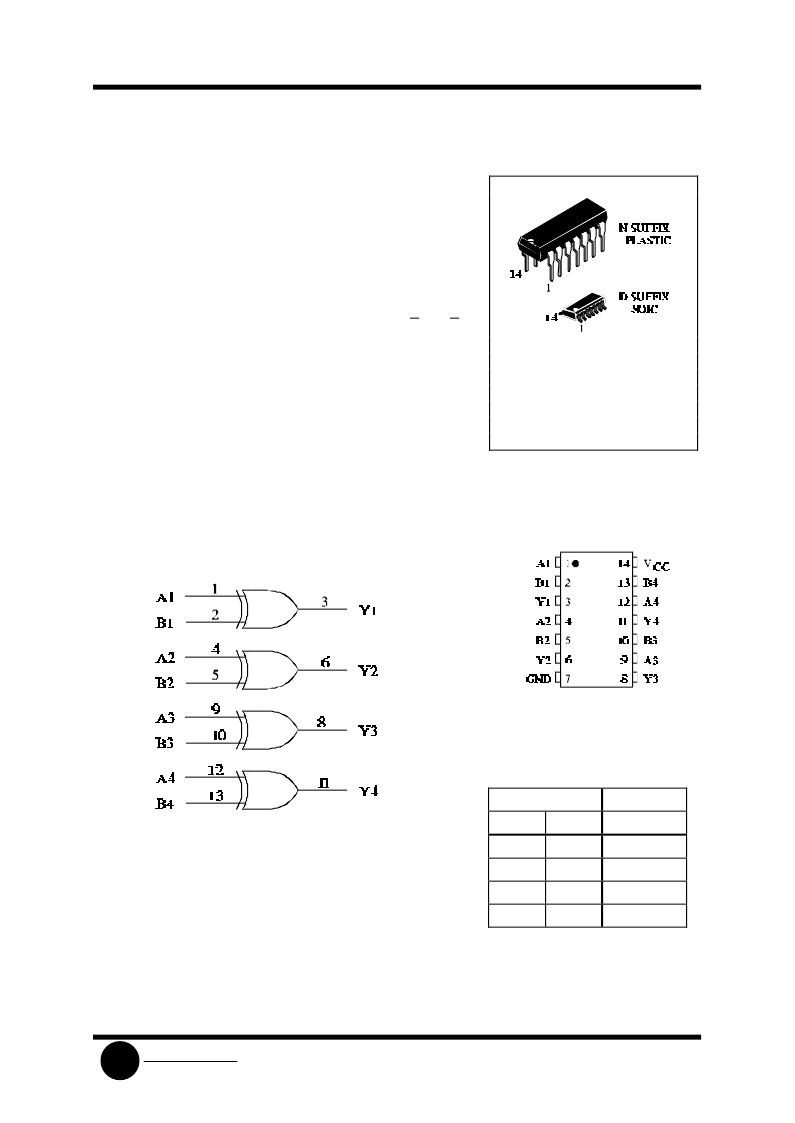

SL74LS86
S ystem Logic
Semiconductor
SLS
Quad 2-Input Exclusive OR
Gate
This device contains four independent 2-input Exclusive-OR gates.
It performs the Boolean functions Y=A
⊕
B=AB+AB in positive logic.
ORDERING INFORMATION
SL74LS86N Plastic
SL74LS86D SOIC
T
A
= 0
°
to 70
°
C for all
packages
LOGIC DIAGRAM
PIN 14 =V
CC
PIN 7 = GND
PIN ASSIGNMENT
FUNCTION TABLE
Inputs
Output
A
B
Y
L
L
L
L
H
H
H
L
H
H
H
L
