| 型號： | LTC1069-1IN8 |
| 廠商： | Linear Technology |
| 文件頁數： | 3/10頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC FILTR 8TH ORDER LOWPASS 8-DIP |
| 標準包裝： | 50 |
| 濾波器類型： | 橢圓，低通開關電容器 |
| 頻率 - 截止或中心： | 12kHz |
| 濾波器數： | 1 |
| 濾波器階數： | 8th |
| 電源電壓： | ±1.57 V ~ 5.5 V |
| 安裝類型： | 通孔 |
| 封裝/外殼： | 8-DIP（0.300"，7.62mm） |
| 供應商設備封裝： | 8-PDIP |
| 包裝： | 管件 |

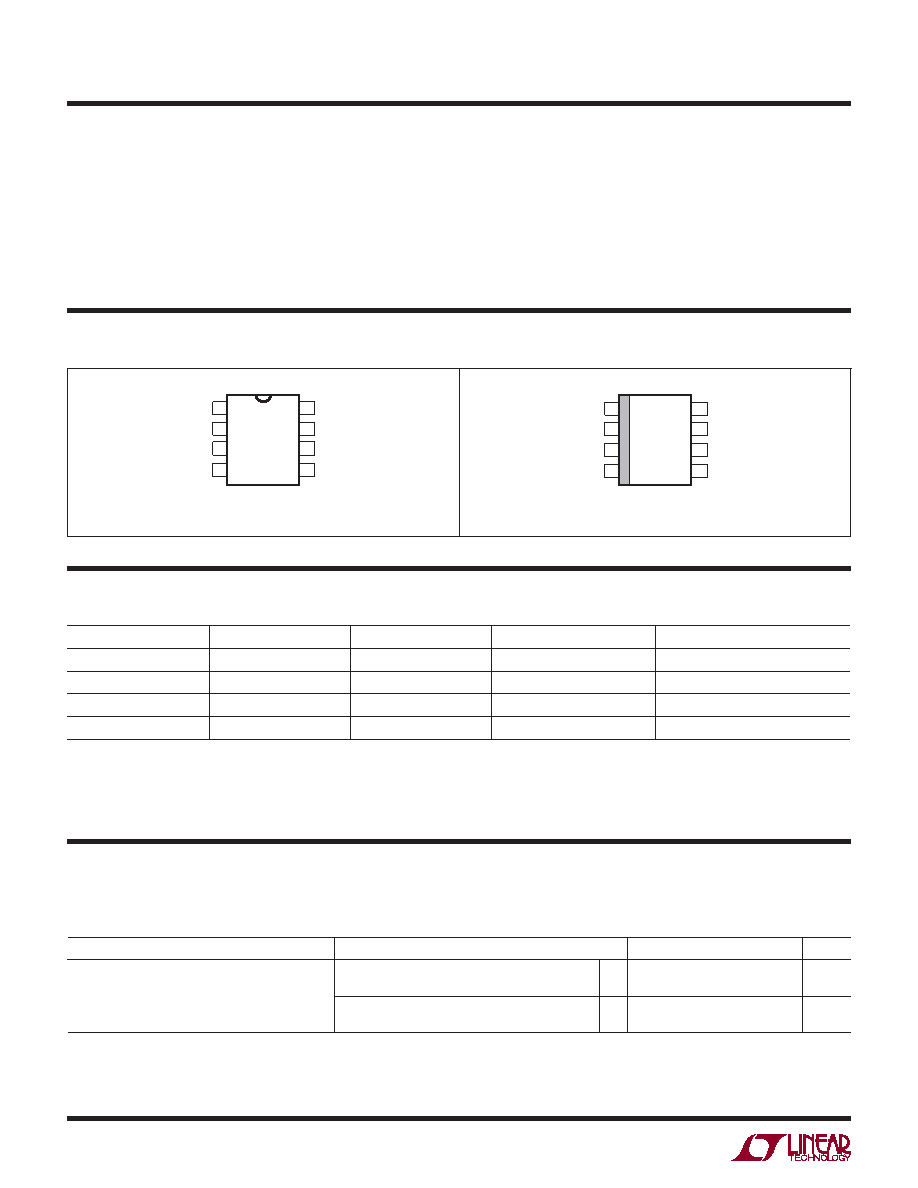

LTC1069-1
2
10691fa
ABSOLUTE MAXIMUM RATINGS
Total Supply Voltage (V+ to V–) .................................12V
Maximum Voltage at
Any Pin .............................(V– – 0.3V) ≤ V ≤ (V+ + 0.3V)
(Note 1)
ORDER INFORMATION
PIN CONFIGURATION
1
2
3
4
8
7
6
5
TOP VIEW
AGND
V+
NC
VIN
VOUT
V–
NC
CLK
N8 PACKAGE
8-LEAD PLASTIC DIP
TJMAX = 110°C, θJA = 100°C/W
1
2
3
4
8
7
6
5
TOP VIEW
VOUT
V–
NC
CLK
AGND
V+
NC
VIN
S8 PACKAGE
8-LEAD PLASTIC SO
TJMAX = 125°C, θJA = 130°C/W
Operating Temperature Range
LTC1069C-1 ............................................. 0°C to 70°C
LTC1069I-1 .......................................... –40°C to 85°C
Storage Temperature Range................... –65°C to 150°C
Lead Temperature (Soldering, 10 sec) .................. 300°C
ELECTRICAL CHARACTERISTICS The l denotes the specications which apply over the full operating
temperature range, otherwise specications are at TA = 25°C. fCUTOFF is the lter’s cutoff frequency and is equal to fCLK/100. The
fCLK signal level is TTL or CMOS (clock rise or fall time ≤ 1μs), VS = 3.3V to ±5V, RL = 10k, unless otherwise noted. All AC gains are
measured relative to the passband gain.
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
Passband Gain (fIN ≤ 0.25fCUTOFF)VS = ±5V, fCLK = 500kHz
fTEST = 1.25kHz, VIN = 1VRMS
l
–0.30
–0.35
0.2
0.70
0.75
dB
VS = 3.3V, fCLK = 200kHz
fTEST = 0.5kHz, VIN = 0.5VRMS
l
–0.30
–0.35
0.2
0.70
0.75
dB
LEAD FREE FINISH
TAPE AND REEL
PART MARKING*
PACKAGE DESCRIPTION
SPECIFIED TEMPERATURE RANGE
LTC1069-1CN8#PBF
LTC1069-1
8-Lead Plastic DIP
0°C to 70°C
LTC1069-1IN8#PBF
LTC1069-1
8-Lead Plastic DIP
–40°C to 85°C
LTC1069-1CS8#PBF
LTC1069-1CS8#TRPBF
10691
8-Lead Plastic SO
0°C to 70°C
LTC1069-1IS8#PBF
LTC1069-1IS8#TRPBF
10691I
8-Lead Plastic SO
–40°C to 85°C
Consult LTC Marketing for parts specied with wider operating temperature ranges. *The temperature grade is identied by a label on the shipping container.
Consult LTC Marketing for information on non-standard lead based nish parts.
For more information on lead free part marking, go to: http://www.linear.com/leadfree/
For more information on tape and reel specications, go to: http://www.linear.com/tapeandreel/
