6
LTC1693-5
APPLICATIO
S I
N
FOR
ATIO
U
Overview
The LTC1693-5 single driver allows 3V- or 5V-based digi-
tal circuits to drive power P-channel MOSFETs at high
speeds. A power MOSFET’s gate-charge loss increases with
switching frequency and transition time. The LTC1693-5
is capable of driving a 1nF load with 16ns rise and fall times
using a V
CC
of 12V. This eliminates the need for higher
voltage supplies, such as 18V, to reduce the gate charge
losses.
The LTC1693-5’s 360
μ
A quiescent current is an order of
magnitude lower than most other drivers/buffers. This
improves system efficiency in both standby and switching
operation. Since a power MOSFET generally accounts for
the majority of power loss in a converter, addition of the
LT1693-5 to a high power converter design greatly im-
proves efficiency, using very little board space.
W
U
Input Stage
The LTC1693-5 employs 3V CMOS compatible input thresh-
olds that allow a low voltage digital signal to drive standard
power P-channel MOSFETs. The LTC1693-5 incorporates
a 4V internal regulator to bias the input buffer. This allows
the 3V CMOS compatible input thresholds (V
IH
= 2.6V, V
IL
= 1.4V) to be independent of variations in V
CC
. The 1.2V
hysteresis between V
IH
and V
IL
eliminates false triggering
due to ground noise during switching transitions. The
LTC1693-5’s input buffer has a high input impedance and
draws less than 10
μ
A during standby.
Output Stage
The LTC1693-5’s output stage is essentially a CMOS
inverter, as shown by the P- and N-channel MOSFETs in
Figure 1 (P1 and N1). The CMOS inverter swings rail-to-
rail, giving maximum voltage drive to the load. This large
voltage swing is important in driving external power
P-channel MOSFETs, whose R
DS(ON)
is inversely propor-
tional to its gate overdrive voltage (V
GS
– V
T
).
P1
C
GS
POWER
MOSFET
C
GD
OUT
GND
LTC1693-5
LOAD
1693-5 F01
N1
V
CC

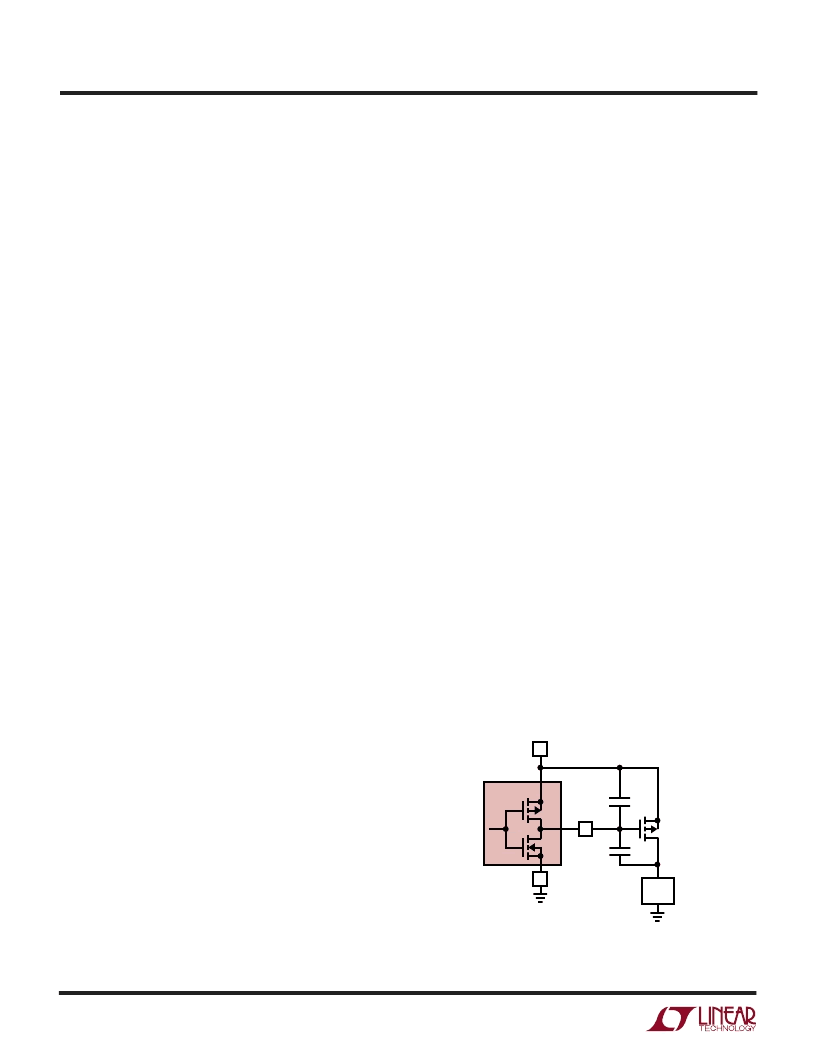

Figure 1. Capacitance Seen by OUT During Switching
The LTC1693-5’s peak output currents are 1.4A (P1) and
1.7A (N1) respectively. The N-channel MOSFET (N1) has
higher current drive capability so it can charge the power
MOSFET’s gate capacitance during high-to-low signal
transitions. When the power MOSFET’s gate is pulled high
by the LTC1693-5, its drain voltage is pulled low by its load
(e.g., a resistor or inductor). The slew rate of the drain
voltage causes current to flow back to the MOSFETs gate
through its gate-to-drain capacitance. If the MOSFET
driver does not have sufficient source current capability
(low output impedance), the current through the power
MOSFET’s Miller capacitance (C
GD
) can momentarily pull
the gate low, turning the MOSFET back on.
Rise/Fall Time
Since the power MOSFET generally accounts for the ma-
jority of power lost in a converter, it’s important to quickly
turn it either fully “on” or “off” thereby minimizing the tran-
sition time in its linear region. The LTC1693-5 has rise and
fall times on the order of 16ns, delivering about 1.4A to 1.7A
of peak current to a 1nF load with a V
CC
of only 12V.
The LTC1693-5 rise and fall times are determined by the
peak current capabilities of P1 and N1. The predriver,
shown in Figure 1 driving P1 and N1, uses an adaptive
method to minimize cross-conduction currents. This is
done with a 6ns nonoverlapping transition time. N1 is fully
turned off before P1 is turned-on and vice-versa using this
6ns buffer time. This minimizes any cross-conduction
currents while N1 and P1 are switching on and off yet is
short enough to not prolong their rise and fall times.
