M93S66, M93S56, M93S46
4K/2K/1K (x16) SERIAL MICROWIRE BUS EEPROM
with BLOCK PROTECTION
PRELIMINARY DATA
September 1998
1/24
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
AI02020
D
VCC
M93Sx6
VSS
C
Q
PRE
W
S

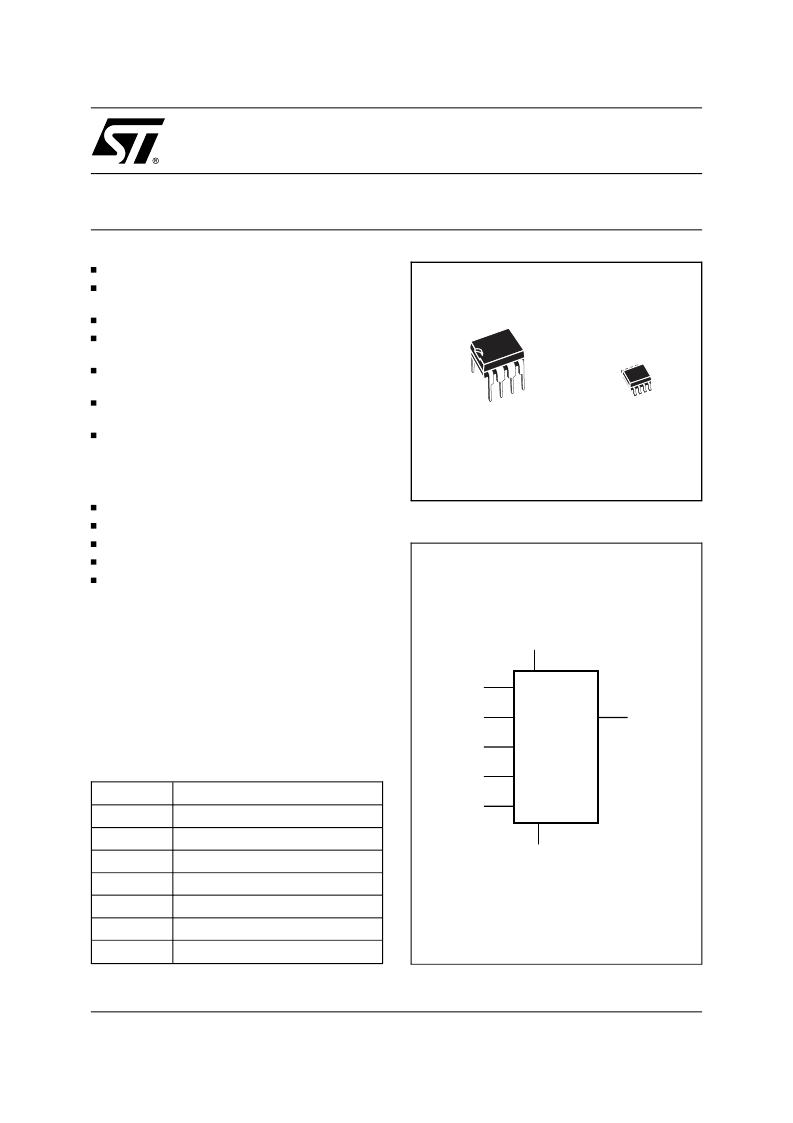

Figure 1. Logic Diagram
INDUSTRY STANDARD MICROWIRE BUS
1 MILLION ERASE/WRITE CYCLES, with
40 YEARS DATA RETENTION
SINGLE ORGANIZATION by WORD (x16)
WORD and ENTIRE MEMORY
PROGRAMMING INSTRUCTIONS
SELF-TIMED PROGRAMMING CYCLE with
AUTO-ERASE
READY/BUSY SIGNAL DURING
PROGRAMMING
SINGLE SUPPLY VOLTAGE:
– 4.5V to 5.5V for M93Sx6 version
– 2.5V to 5.5V for M93Sx6-W version
– 1.8V to 5.5V for M93Sx6-R version
USER DEFINED WRITE PROTECTED AREA
PAGE WRITE MODE (4 words)
SEQUENTIAL READ OPERATION
5ms TYPICAL PROGRAMMING TIME
ENHANCED ESD and LATCH-UP
PERFORMANCES
DESCRIPTION
This M93S46/S56/S66 specification covers a
range of 4K/2K/1K bit serial EEPROM products
respectively. In this text, products are referred to as
M93Sx6. The M93Sx6 is an Electrically Erasable
Programmable Memory (EEPROM) fabricated with
STMicroelectronics’ High Endurance Single
Polysilicon CMOS technology.
S
Chip Select Input
D
Serial Data Input
Q
Serial Data Output
C
Serial Clock
PRE
Protect Enable
W
Write Enable
V
CC
Supply Voltage
V
SS
Ground
Table 1. Signal Names
8
1
SO8 (MN)
150mil Width
8
1
PSDIP8 (BN)
0.25mm Frame
