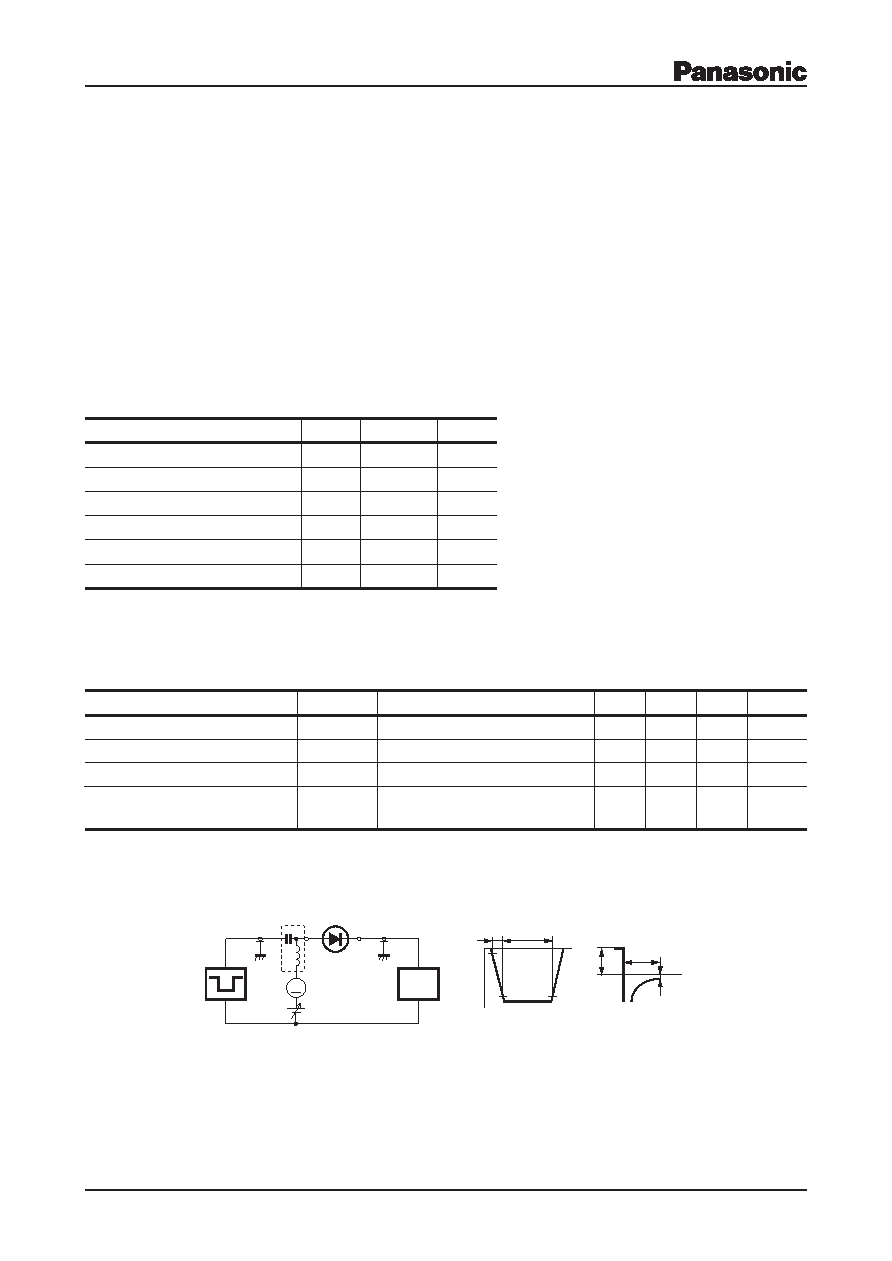

Fast Recovery Diodes (FRD)
Publication date: November 2007
SKJ00017AED
1
This product complies with RoHS Directive (EU 2002/95/EC).
MA22F20
Silicon epitaxial planar type
For high speed switching circuits
Features
Super high speed switching characteristic (trr = 8 ns typ.)
At the same time as lowering the wiring inductance and increasing the peak
surge forward current, the resistance to surge damage at power on has been
increased by adopting clip connection package (TMP).
Absolute Maximum Ratings Ta = 25°C
Parameter
Symbol
Rating
Unit
Repetitive peak reverse voltage
VRRM
200
V
Non-repetitive peak reverse surge voltage
VRSM
200
V
Forward current *1
IF
1.0
A
Non-repetitive peak forward surge current *2
IFSM
15
A
Junction temperature
Tj
–40 to +150
°
C
Storage temperature
Tstg
–40 to +150
°
C
Note) *1: Mounted on an alumina PC board
*2: 50 Hz sine wave 1 cycle (Non-repetitive peak current)
Electrical Characteristics Ta = 25°C±3°C
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
Forward voltage
VF
IF = 1.0 A
0.85
0.98
V
Reverse current
IRRM
VRRM = 200 V
20
m
A
Terminal capacitance
Ct
VR = 0 V, f = 1 MHz
45
pF
Reverse recovery time *
trr
IF = 0.5 A, IR = 1 A
Irr = 0.25 A
8
35
ns
Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7031 measuring methods for diodes.
2. This product is sensitive to electric shock (static electricity, etc.). Due attention must be paid on the charge of a human body and the leakage
of current from the operating equipment.
3. *: trr measurement circuit
Bias Application Unit (N-50BU)
90%
Pulse Generator
(PG-10N)
Rs = 50
Wave Form Analyzer
(SAS-8130)
Ri = 50
tp = 2 s
tr = 0.35 ns
δ =
0.05
IF = 100 mA
IR = 200 mA
RL = 100
10%
Input Pulse
Output Pulse
Irr = 0.1 × IR
tr
tp
trr
VR
IF
t
A
Package
Code
Mini2-F1
Pin Name
1: Anode
2: Cathode
Marking Symbol: FB
Ma
int
en
an
ce
/
Dis
co
nti
nu
ed
Maintenance/Discontinued
includes
following
four
Product
lifecy
cle
stage.
planed
maintenance
type
maintenance
type
planed
discontinued
typed
discontinued
type
Please
visit
following
URL
about
latest
information.
http://panasonic.net/sc/en
