參數資料
型號： MB96F326RSBPMC-GSE2
廠商： Fujitsu Semiconductor America Inc
文件頁數： 100/108頁
文件大?。?/td> 0K
描述： IC MCU FLASHK/ROM MEMORY 80LQFP
標準包裝： 1
系列： F²MC MB96320
核心處理器： F²MC-16FX
芯體尺寸： 16-位
速度： 56MHz
連通性： CAN，EBI/EMI，I²C，LIN，SCI，UART/USART
外圍設備： DMA，LVD，LVR，POR，PWM，WDT
輸入/輸出數： 66
程序存儲器容量： 288KB（288K x 8）
程序存儲器類型： 閃存
RAM 容量： 12K x 8
電壓 - 電源 (Vcc/Vdd)： 3 V ~ 5.5 V
數據轉換器： A/D 18x10b
振蕩器型： 內部
工作溫度： -40°C ~ 125°C
封裝/外殼： 80-LQFP
包裝： 托盤
產品目錄頁面： 722 (CN2011-ZH PDF)
其它名稱： 865-1082
MB96320 Series
FME-MB96320 rev 7
91

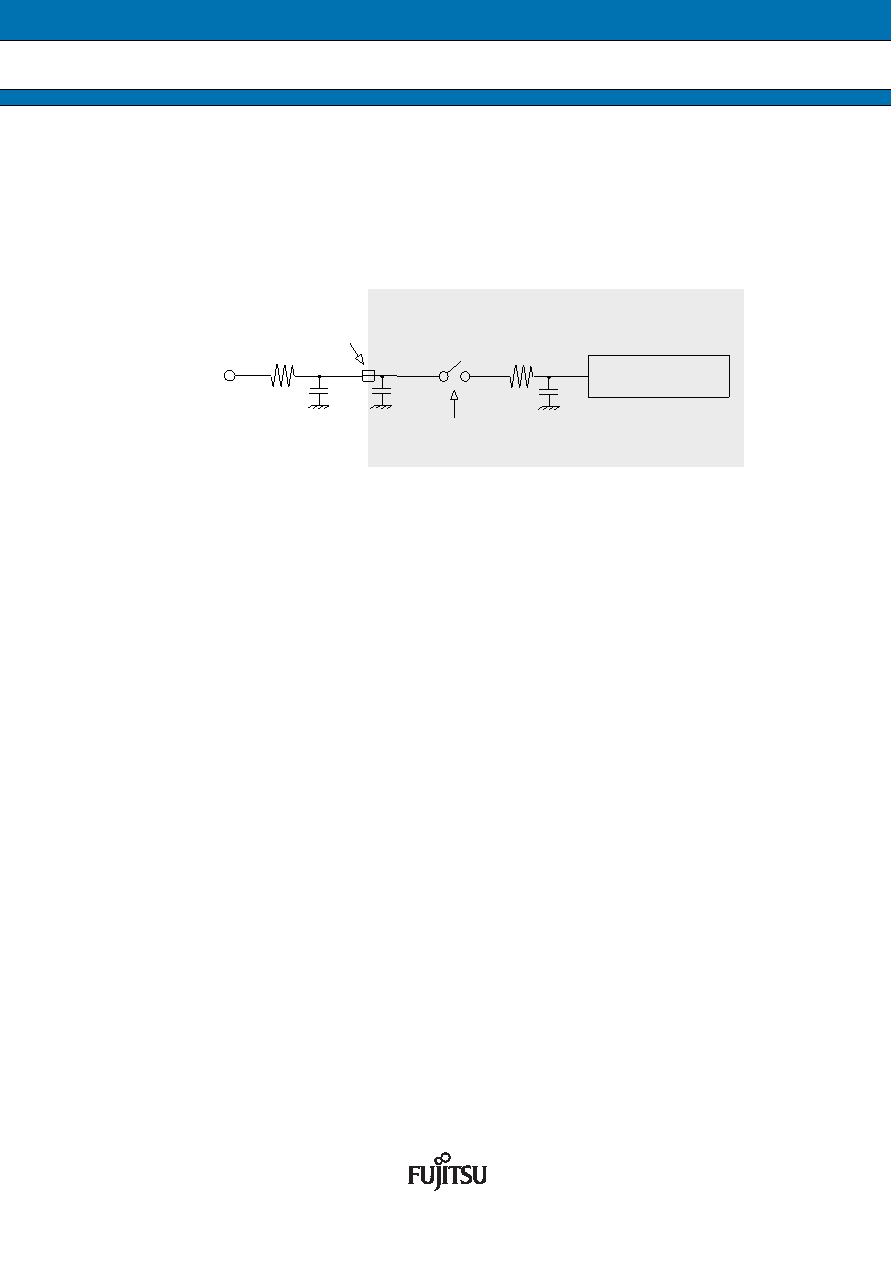

Accuracy and setting of the A/D Converter sampling time
If the external impedance is too high or the sampling time too short, the analog voltage charged to the internal
sample and hold capacitor is insufcient, adversely affecting the A/D conversion precision.
To satisfy the A/D conversion precision, a sufcient sampling time must be selected. The required sampling time
depends on the external driving impedance Rext, the board capacitance of the A/D converter input pin Cext and
the AVcc voltage level. The following replacement model can be used for the calculation:
The sampling time should be set to minimum “7
τ“. The following approximation formula for the replacement
model above can be used:
Tsamp [min] = 7
× (Rext × (Cext + CIN) + (Rext + RADC) × CADC)
Do not select a sampling time below the absolute minimum permitted value
(0.5
s for 4.5V ≤ AVcc ≤ 5.5V; 1.2 s for 3.0V ≤ AVcc < 4.5V).
If the sampling time cannot be sufcient, connect a capacitor of about 0.1
F to the analog input pin. In this
case the internal sampling capacitance CADC will be charged out of this external capacitance.
A big external driving impedance also adversely affects the A/D conversion precision due to the pin input
leakage current IIL (static current before the sampling switch) or the analog input leakage current IAIN (total
leakage current of pin input and comparator during sampling). The effect of the pin input leakage current IIL
cannot be compensated by an external capacitor.
The accuracy gets worse as |AVRH - AVRL| becomes smaller.
Comparator
Sampling switch
RADC
CADC
Analog
Rext
Cext
input
MCU
Source
Rext: external driving impedance
Cext: capacitance of PCB at A/D converter input
RADC: resistance within MCU: 2.6k
(max) for 4.5V ≤ AVcc ≤ 5.5V
12k
(max) for 3.0V ≤ AVcc < 4.5V
CADC: sampling capacitance within MCU: 10pF (max)
CIN
CIN: capacitance of MCU input pin: 15pF (max)
