Semiconductor Components Industries, LLC, 2006
March, 2006 Rev. 0
1
Publication Order Number:
MBR3045/D

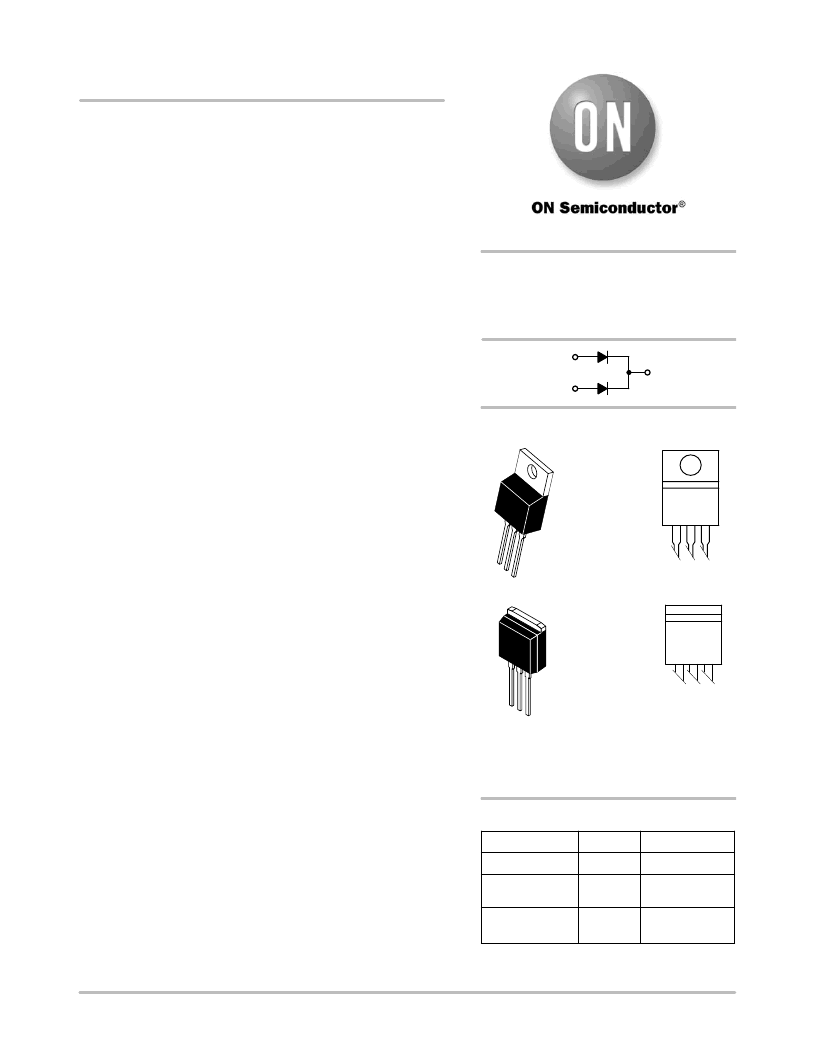

MBR3045
SWITCHMODE
Power Rectifier
Features and Benefits
Dual Diode Construction Terminals 1 and 3 May Be Connected for
Parallel Operation at Full Rating
45 V Blocking Voltage
30 A Total (15 A Per Diode Leg)
Low Forward Voltage Drop
175
°
C Operating Junction Temperature
Applications
Power Supply Output Rectification
Power Management
Instrumentation
Mechanical Characteristics
Case: Epoxy, Molded
Weight (Approximately): 1.9 Grams (TO220AB)
1.5 Grams (TO262)
Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead Temperature for Soldering Purposes:
260
°
C Max. for 10 Seconds
ESD Rating: Human Body Model 3B
Machine Model C
Epoxy Meets UL 94 V0 @ 0.125 in
TO220AB
CASE 221A
STYLE 6
3
4
1
SCHOTTKY BARRIER
RECTIFIER
30 AMPERES, 45 VOLTS
3
1
2, 4
2
AY
B3045G
AKA
WW
MARKING
DIAGRAMS
A
Y
WW
AKA
G
= Assembly Location
= Year
= Work Week
= Polarity Designator
= PbFree Device
I
2
PAK (TO262)
CASE 418D
PLASTIC
AYWW
B3045CTG
A K A
3
4
12
http://onsemi.com
Device
Package
Shipping
ORDERING INFORMATION
TO220
50 Units/Rail
MBR3045ST
TO220
(PbFree)
MBR3045STG
50 Units/Rail
TO262
(PbFree)
MBRB3045CT1G
50 Units/Rail
