參數資料
| 型號： | MC12093MNR4G |
| 廠商： | ON Semiconductor |
| 文件頁數： | 2/5頁 |
| 文件大小： | 0K |
| 描述： | IC PRESCALER 1.1GHZ LP 8-DFN |
| 標準包裝： | 1,000 |
| 類型： | 預定標器 |
| 輸入： | CML，ECL |
| 輸出： | ECL |
| 電路數： | 1 |
| 頻率 - 最大： | 1.1GHz |
| 除法器/乘法器： | 是/無 |
| 電源電壓： | 2.7 V ~ 5.5 V |
| 工作溫度： | -40°C ~ 85°C |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 8-VFDFN 裸露焊盤 |
| 供應商設備封裝： | 8-DFN（2x2） |
| 包裝： | 帶卷 (TR) |
| 其它名稱： | MC12093MNR4G-ND MC12093MNR4GOSTR |

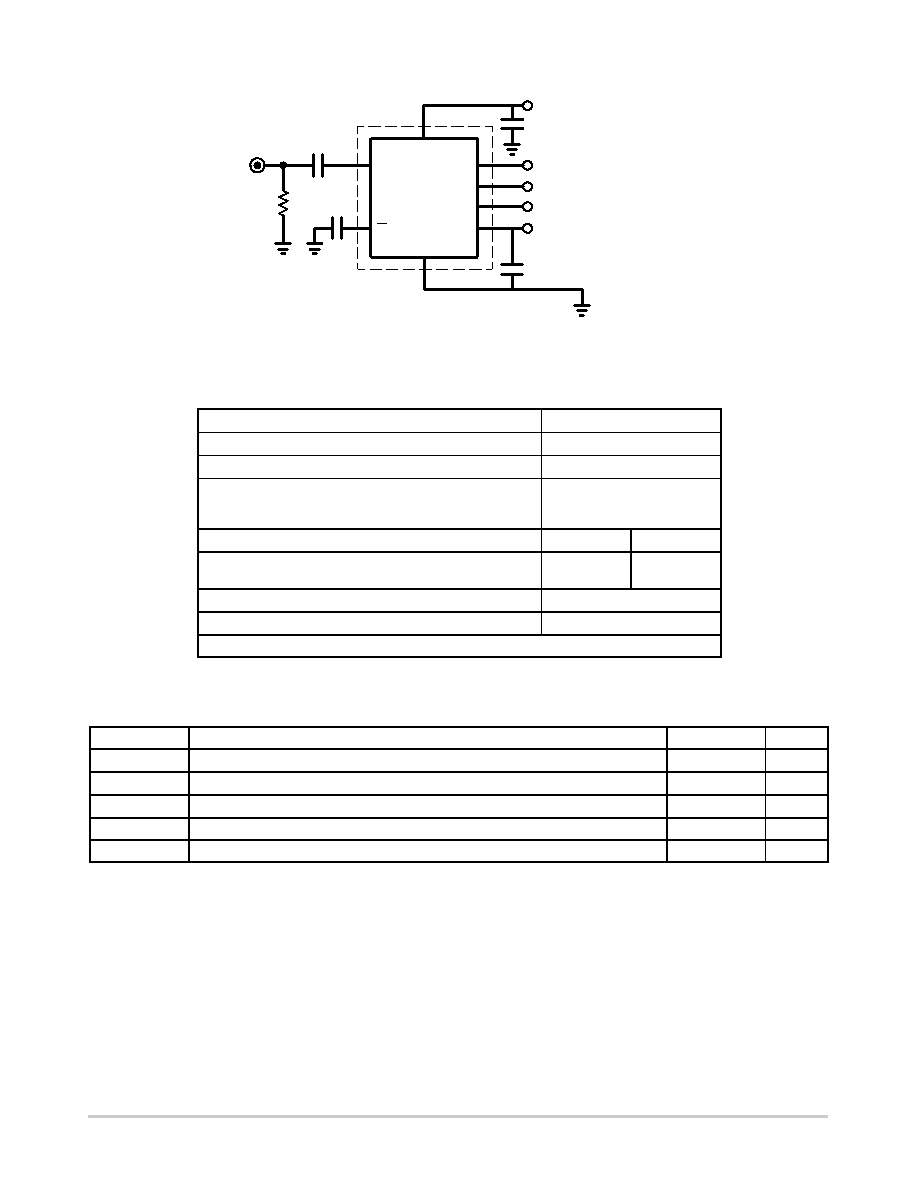

MC12093
http://onsemi.com
2
Figure 2. AC Test Circuit
SB
SW1
SW2
OUT
GND
C4
IN
50
W
C2
C1
VCC
C3
EXTERNAL
COMPONENTS
C1 = C2 = 1000 pF
C3 = 0.1
mF
C4 = 2.0 pF Load
VCC = 2.7 to 5.5 V
Table 2. ATTRIBUTES
Characteristics
Value
Internal Input Pulldown Resistor
N/A
Internal Input Pullup Resistor
N/A
ESD Protection
Human Body Model
Machine Model
Charged Device Model
> 4 kV
> 200 V
> 2 kV
Moisture Sensitivity, Indefinite Time Out of Drypack (Note 1)
Pb Pkg
PbFree Pkg
SOIC8
DFN8
Level 1
Flammability Rating
Oxygen Index: 28 to 34
UL 94 V0 @ 0.125 in
Transistor Count
125 Devices
Meets or exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
1. For additional information, see Application Note AND8003/D.
Table 3. MAXIMUM RATINGS
Symbol
Rating
Value
Unit
VCC
Power Supply Voltage, Pin 2
0.5 to 6.0
Vdc
TA
Operating Temperature Range
40 to 85
°C
Tstg
Storage Temperature Range
65 to 150
°C
IO
Maximum Output Current, Pin 4
4.0
mA
qJC
Thermal Resistance (JunctiontoCase) (Note 2) DFN8
35 to 40
°C/W
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.
NOTE: ESD data available upon request.
2. JEDEC standard multilayer board 2S2P (2 signal, 2 power). For DFN8 only, thermal exposed pad must be connected to a sufficient thermal
conduit. Electrically connect to the most negative supply (GND) or leave unconnected, floating open.
