MC14585B
http://onsemi.com
2

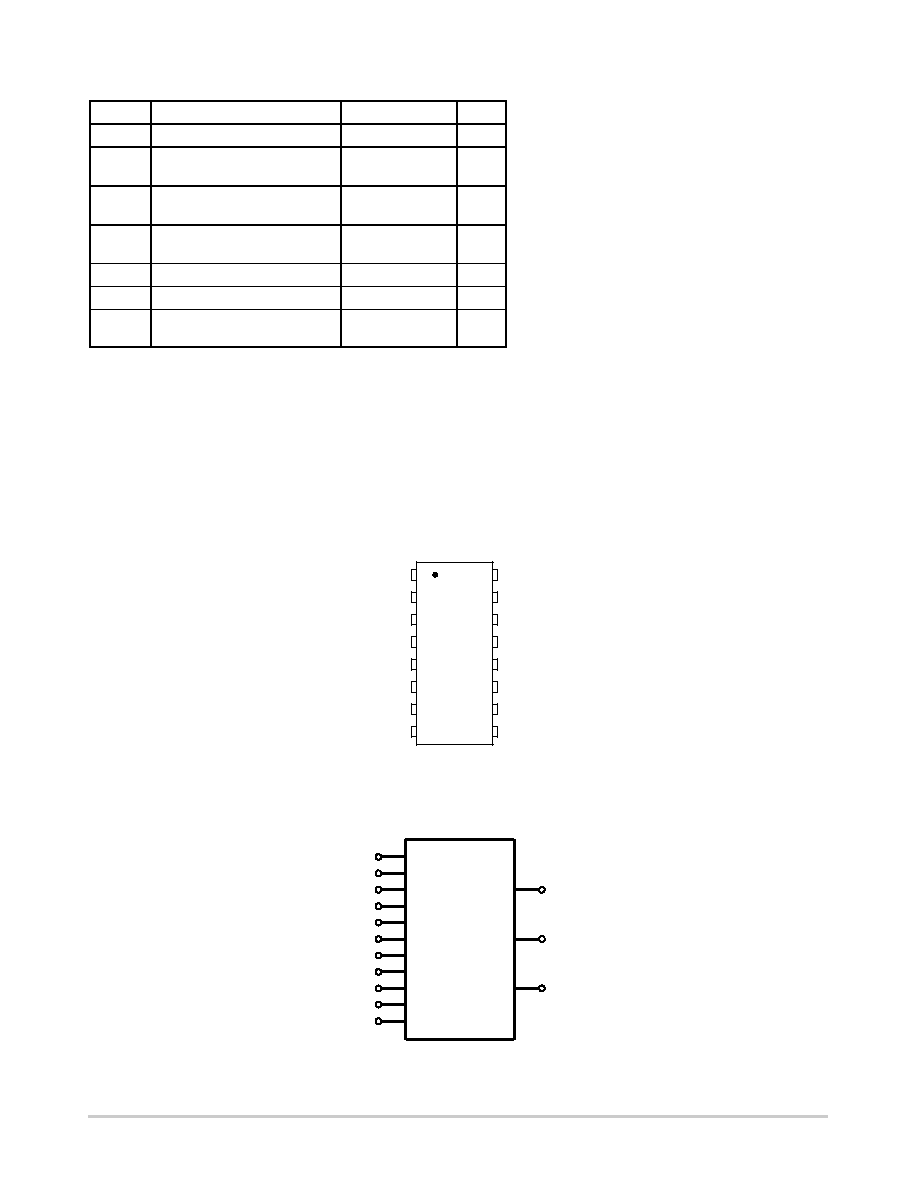

MAXIMUM RATINGS (Voltages Referenced to VSS) (Note 2.)
Symbol
Parameter
Value
Unit
VDD
DC Supply Voltage Range
0.5 to +18.0
V
Vin, Vout
Input or Output Voltage Range
(DC or Transient)
0.5 to VDD + 0.5
V
Iin, Iout
Input or Output Current
(DC or Transient) per Pin
±10
mA
PD
Power Dissipation,
per Package (Note 3.)
500
mW
TA
Ambient Temperature Range
55 to +125
°C
Tstg
Storage Temperature Range
65 to +150
°C
TL
Lead Temperature
(8Second Soldering)
260
°C
2. Maximum Ratings are those values beyond which damage to the device
may occur.
3. Temperature Derating:
Plastic “P and D/DW” Packages: – 7.0 mW/_C From 65_C To 125_C
This device contains protection circuitry to guard against damage due to high
static voltages or electric fields. However, precautions must be taken to avoid
applications of any voltage higher than maximum rated voltages to this
highimpedance circuit. For proper operation, Vin and Vout should be constrained
to the range VSS v (Vin or Vout) v VDD.
Unused inputs must always be tied to an appropriate logic voltage level (e.g.,
either VSS or VDD). Unused outputs must be left open.
PIN ASSIGNMENT
13
14
15
16
9
10
11
12
5
4
3
2
1
8
7
6
(A t B)out
(A u B)out
B3
A3
VDD
B1
A0
B0
(A u B)in
(A = B)out
A2
B2
VSS
A1
(A = B)in
(A t B)in
BLOCK DIAGRAM
14
15
1
2
9
7
11
10
5
6
4
13
3
12
VDD = PIN 16
VSS = PIN 8
(A>B) in
(A=B) in
(A<B) in
A0
B0
A1
B1
A2
B2
A3
B3
(A>B) out
(A=B) out
(A<B) out
