| 型號： | MC44C402AC |
| 廠商： | Freescale Semiconductor |
| 文件頁數： | 11/12頁 |
| 文件大?。?/td> | 0K |
| 描述： | IC STEREO ENCODER MTS 32-LQFP |
| 標準包裝： | 1,250 |
| 類型： | 音頻編碼器 |
| 應用： | 機頂盒，視頻播放器，錄音機 |
| 電壓 - 電源，模擬： | 2.97 V ~ 3.63 V |
| 電壓 - 電源，數字： | 1.62 V ~ 1.98 V |
| 安裝類型： | 表面貼裝 |
| 封裝/外殼： | 32-LQFP |
| 供應商設備封裝： | 32-TQFP（7x7） |
| 包裝： | 托盤 |
| 配用： | MC44C402EVK-ND - KIT EVAL MC44C402 MTS ENCODER |
8
Freescale Semiconductor
MC44C402
SETTING LEVEL FOR MODULATOR/ENCODER
INTERFACE
1.
Verify calibration of the equipment. This requires a
modulator and precision signal source. The audio signal
cannot be passed through the stereo encoder for this
setup. Suggest using 10396.48 Hz audio test signal
directly into first Bessel null on a spectrum analyzer.
The null will occur at precisely 25 KHz deviation of the
10396.48 Hz audio test signal. Please see Figure 8 for
test equipment setup.
2.
Input 1800 Hz @ 0.4 V p-p into left channel and set
adjust attenuation between stereo encoder and the
modulator for optimum separation using calibrated
demodulator and decoder.

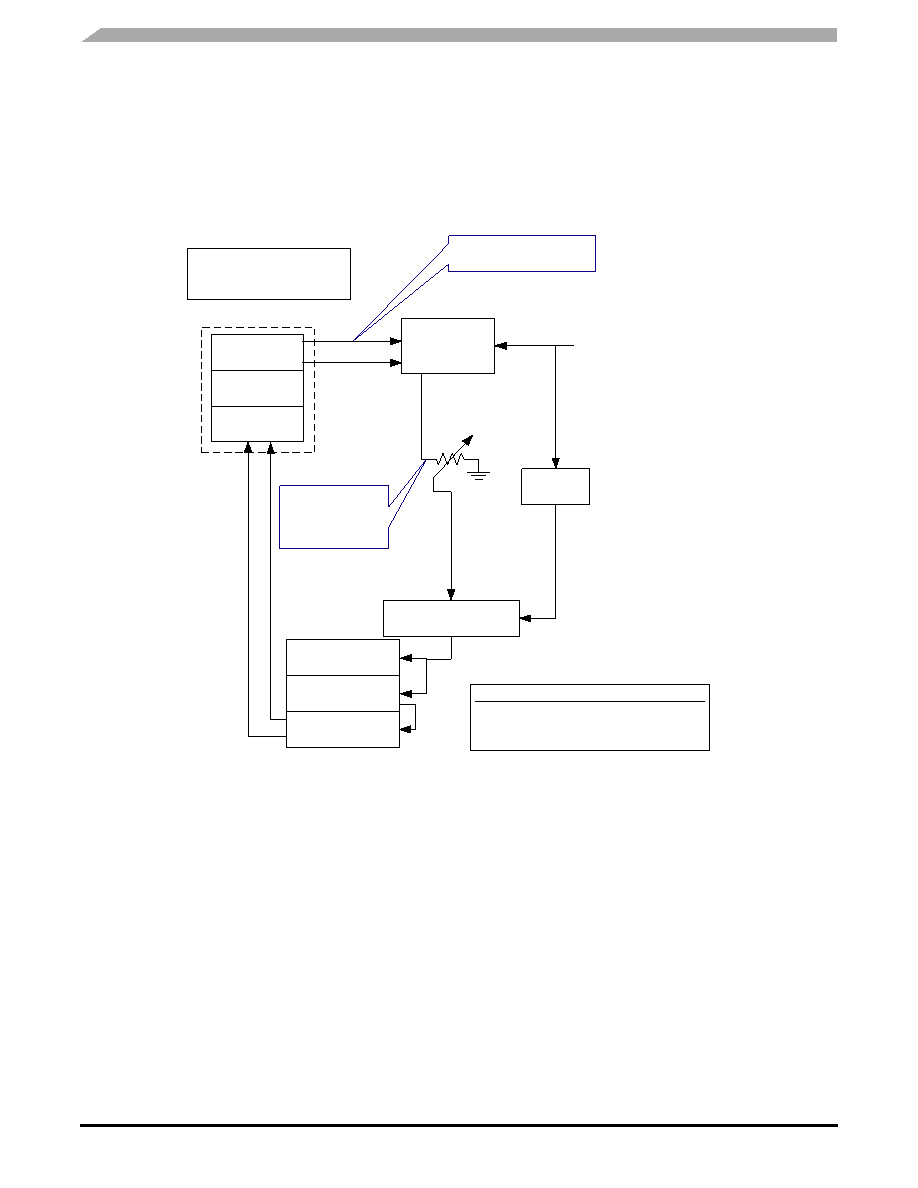

Figure 8. MC44C402 Level Setup
Audio Generator
Precision
Demoodulator
TEK 1450-1
Precision MTS Decoder
Modulation Sciences SRD1
Audio Spectrum
Analyzer
Modulator
No Audio Pre-emphasis
Stereo Encoder
Spectrum Analyzer
Audio Analyzer
Audio Precision SYS2
Wide Band
Output
Composite Video
Left In
Right In
Adjust for optimal
separation with
only Left channel
driven 1800Hz
44C402 Level Setup
Input Left Channel only
1800Hz 400 mV p-p
CVBS in
4.5MHz
Notch Filter
0db / 25KHz deviation =
1.45Vp-p @ 1KHz Mono
(both channels driven)
Demodulator / MTS Decoder Calibration
25KHz deviation Check = 1 0396 Hz
@25KHz deviation gives bessel nul l and
Ref Level on SRD-1
Composite Video
Attenuator
1) Calibrate MTS Decoder to Demodulator connection using Bess el Null Technique
2) input 1.8KHz 0.4 V p-p on left channel only and optimiz e stereo separation with
attenuator.
