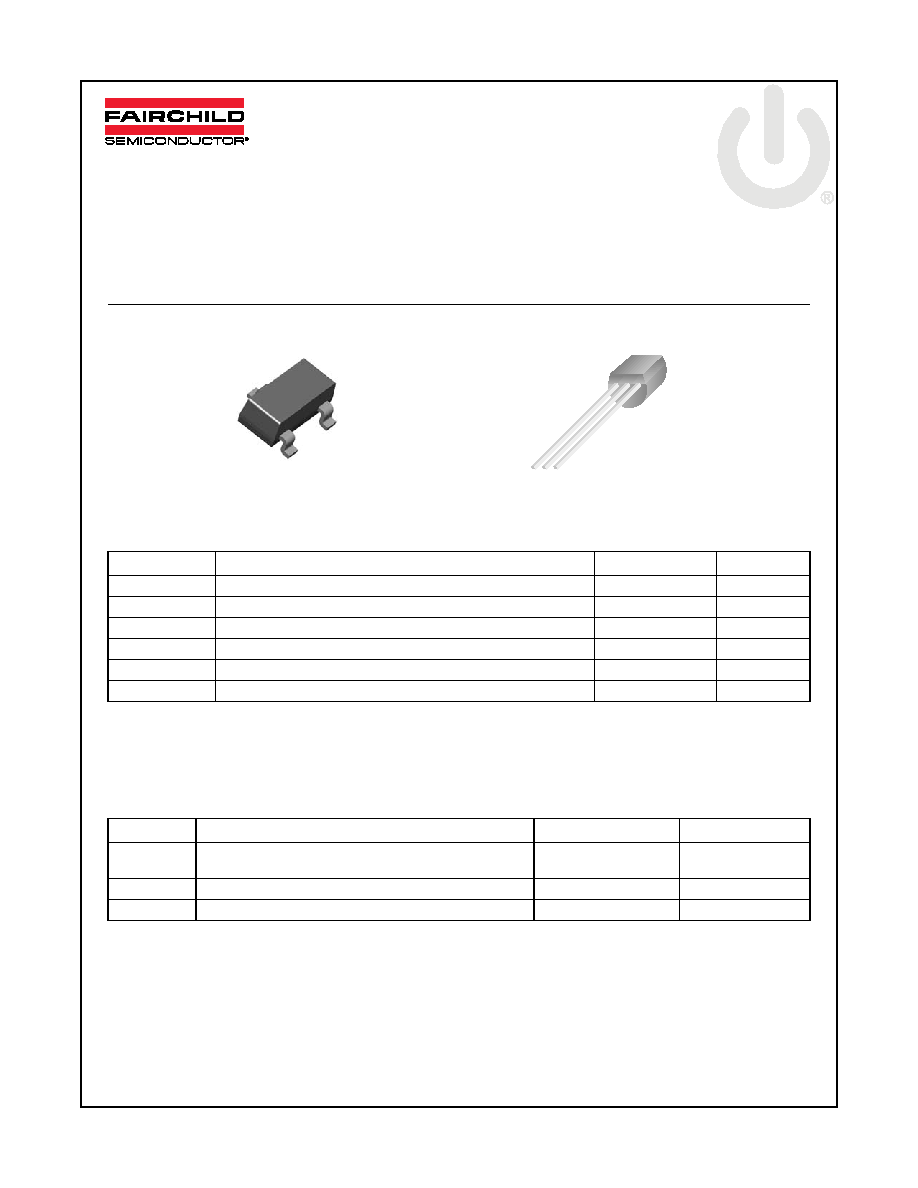

MMBT2369
/
PN2369
—
NPN
Switching
T
ransistor
2007 Fairchild Semiconductor Corporation
www.fairchildsemi.com
MMBT2369 / PN2369 Rev. 1.0.0
1
February 2008
MMBT2369 / PN2369
NPN Switching Transistor
This device is designed for high speed saturated switching at
collector currents of 10mA to 100mA.
Sourced from process 21.
Absolute Maximum Ratings * T
a = 25×C unless otherwise noted
* This ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
** Pulse Test: Pulse Width 300ms, Duty Cycle 2.0%
NOTES:
1) These rating are based on a maximum junction temperature of 150 degrees C.
2) These are steady limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics T
a = 25°C unless otherwise noted
* Device mounted on FR-4PCB 1.6” 1.6” 0.06”.
Symbol
Parameter
Ratings
Units
VCEO
Collector-Emitter Voltage
15
V
VCBO
Collector-Base Voltage
40
V
VEBO
Emitter-Base Voltage
4.5
V
IC
Collector Current
- Continuous
200
mA
ICP
**Collector Current (Pulse)
400
mA
TJ, TSTG
Operating and Storage Junction Temperature Range
-55 ~ 150
°C
Symbol
Parameter
Max.
Units
PD
Total Device Dissipation
Derate above 25
°C
350
2.8
mW
mW/
°C
RθJC
Thermal Resistance, Junction to Case
125
°C/W
RθJA
Thermal Resistance, Junction to Ambient
357
°C/W
SOT-23
B
E
C
Mark: 1J
TO-92
1. Emitter 2. Base 3. Collector
1
MMBT2369
PN2369
