| 型號： | MPXV10GC6T1 |
| 廠商： | FREESCALE SEMICONDUCTOR INC |
| 元件分類： | 壓力傳感器 |
| 英文描述： | GAGE, PEIZORESISTIVE PRESSURE SENSOR, 0-1.45Psi, 1%, 20-35mV, SQUARE, SURFACE MOUNT |
| 封裝： | SOP-8 |
| 文件頁數： | 2/9頁 |
| 文件大小： | 227K |
| 代理商： | MPXV10GC6T1 |
MPX10
Sensors
2
Freescale Semiconductor

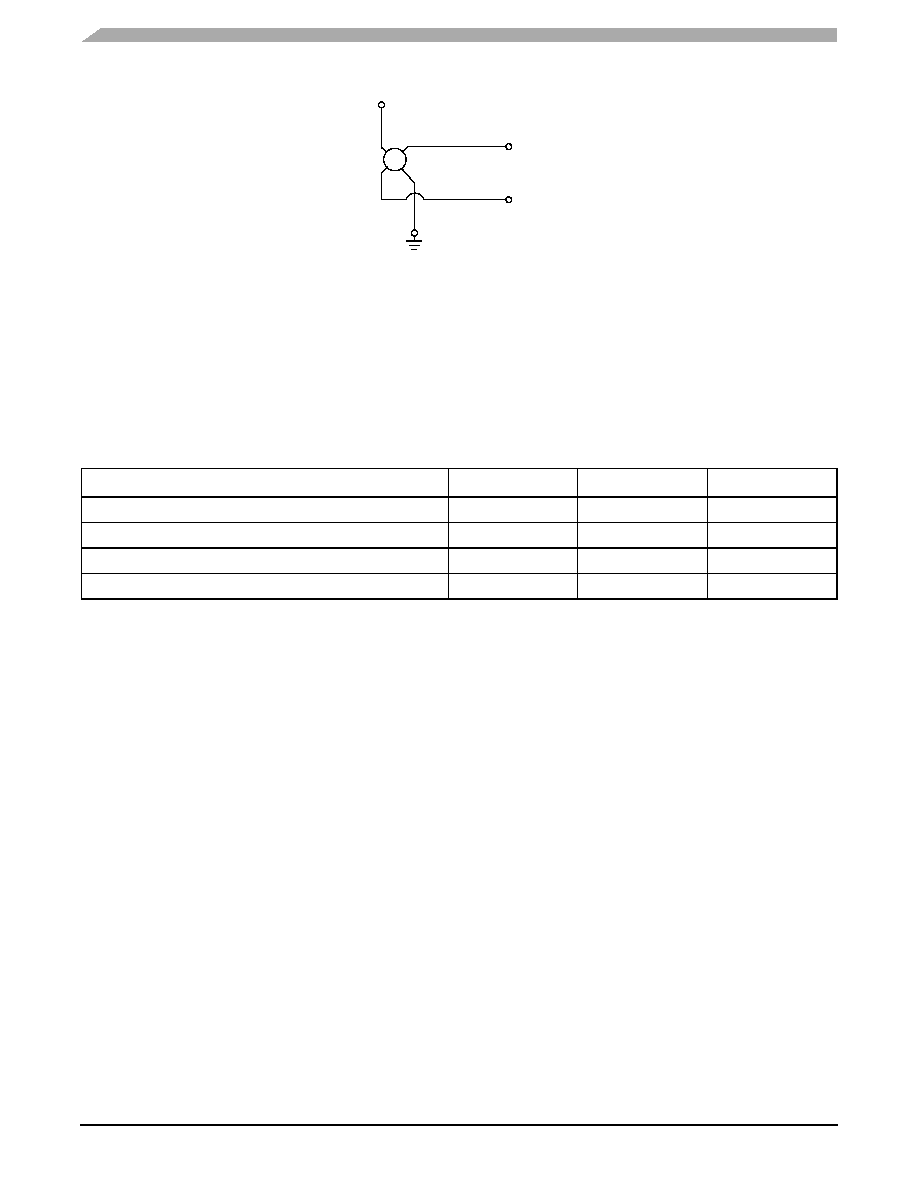

Figure 1. Uncompensated Pressure Sensor Schematic
VOLTAGE OUTPUT VERSUS APPLIED DIFFERENTIAL PRESSURE
The output voltage of the differential or gauge sensor
increases with increasing pressure applied to the pressure
side (P1) relative to the vacuum side (P2). Similarly, output
voltage increases as increasing vacuum is applied to the
vacuum side (P2) relative to the pressure side (P1).
1
2
3
4
GND
+VOUT
–VOUT
+VS
Sensing
Element
Table 1. Maximum Ratings(1)
1. Exposure beyond the specified limits may cause permanent damage or degradation to the device.
Rating
Symbol
Value
Unit
Maximum Pressure (P1 > P2)
PMAX
75
kPa
Burst Pressure (P > P2)
PBURST
100
kPa
Storage Temperature
TSTG
–40 to +125
°C
Operating Temperature
TA
–40 to +125
°C
