4/16
MSM7540/7560
Semiconductor
FEDL7540-03

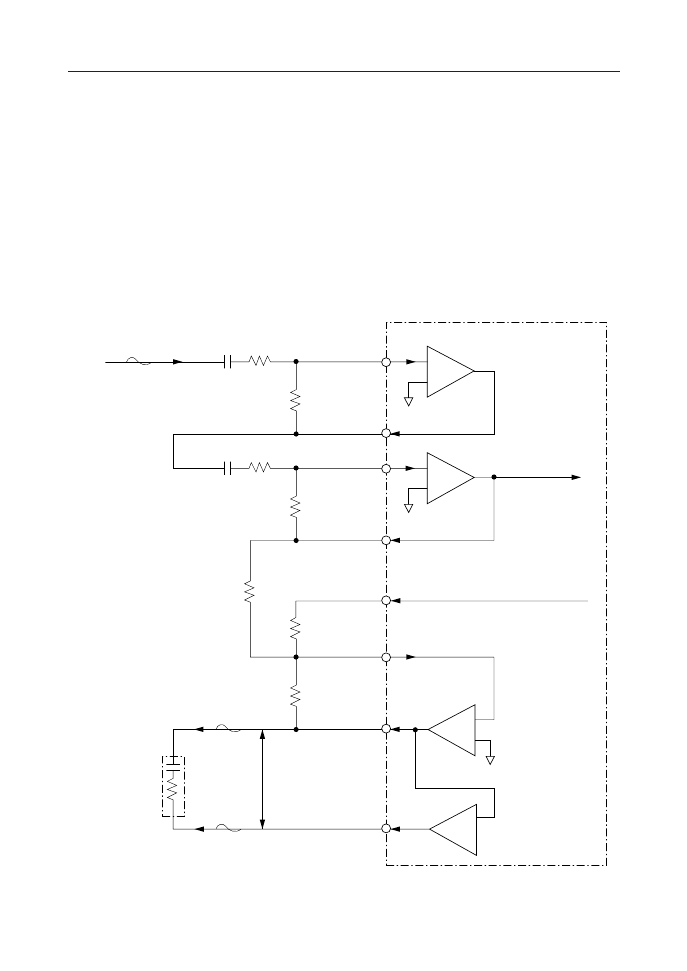

Figure 1 Analog Input/Output Interface
PIN AND FUNCTIONAL DESCRIPTIONS
AIN1, AIN2, GSX1, GSX2
Transmit analog inputs and the output for transmit gain adjustment.
AIN1 (AIN2) connects to the inverting input of the internal transmit amplifier. GSX1 (GSX2)
connects to the internal transmit amplifier output. Refer to Fig. 1 for gain adjustment.
VFRO, AOUT+, AOUT–, PWI
Receive analog output and the output for receive gain adjustment.
VFRO is the receive filter output. AOUT+ and AOUT– are differential analog signal outputs
which can directly drive Z
L
= 350
W
+ 120 nF. Refer to Fig. 1 for gain adjustment.
AIN1
GSX1
Analog Input
R2
C1
to ENCODER
R1
from DECODER
Analog Output
Z
L
=120 nF
+ 350
W
* : Side Tone Pass (Gain = R6/RS)
AIN2
GSX2
R4
C2
R3
AOUT–
PWI
R6
RS*
VFRO
R5
–1
AOUT+
–
+
–
+
–
+
Transmit Gain:
= (R2/R1)
￥
(R4/R3)
Receive Gain:
= (R6/R5)
V
0
