Q3 VCCO GND Q0 Q0 VCC
參數資料
型號: NB6HQ14MMNTXG
廠商: ON Semiconductor
文件頁數: 5/11頁
文件大小: 0K
描述: IC CLK BUFF MUX 1:4 5GHZ 16-QFN
標準包裝: 3,000
系列: ECLinPS MAX™
類型: 扇出緩沖器(分配),多路復用器
電路數: 1
比率 - 輸入:輸出: 1:4
差分 - 輸入:輸出: 是/是
輸入: CML,LVDS,LVPECL
輸出: CML
頻率 - 最大: 5GHz
電源電壓: 2.375 V ~ 2.625 V
工作溫度: -40°C ~ 85°C
安裝類型: 表面貼裝
封裝/外殼: 16-VFQFN 裸露焊盤
供應商設備封裝: 16-QFN(3x3)
包裝: 帶卷 (TR)
NB6HQ14M
http://onsemi.com
3
EQEN Q3
Q3 VCCO
GND Q0
Q0
VCC
Q1
Q2
IN
VT
VREFAC
IN
56
7
8
16
15
14
13
12
11
10
9
1
2
3
4
NB6HQ14M
Exposed Pad (EP)

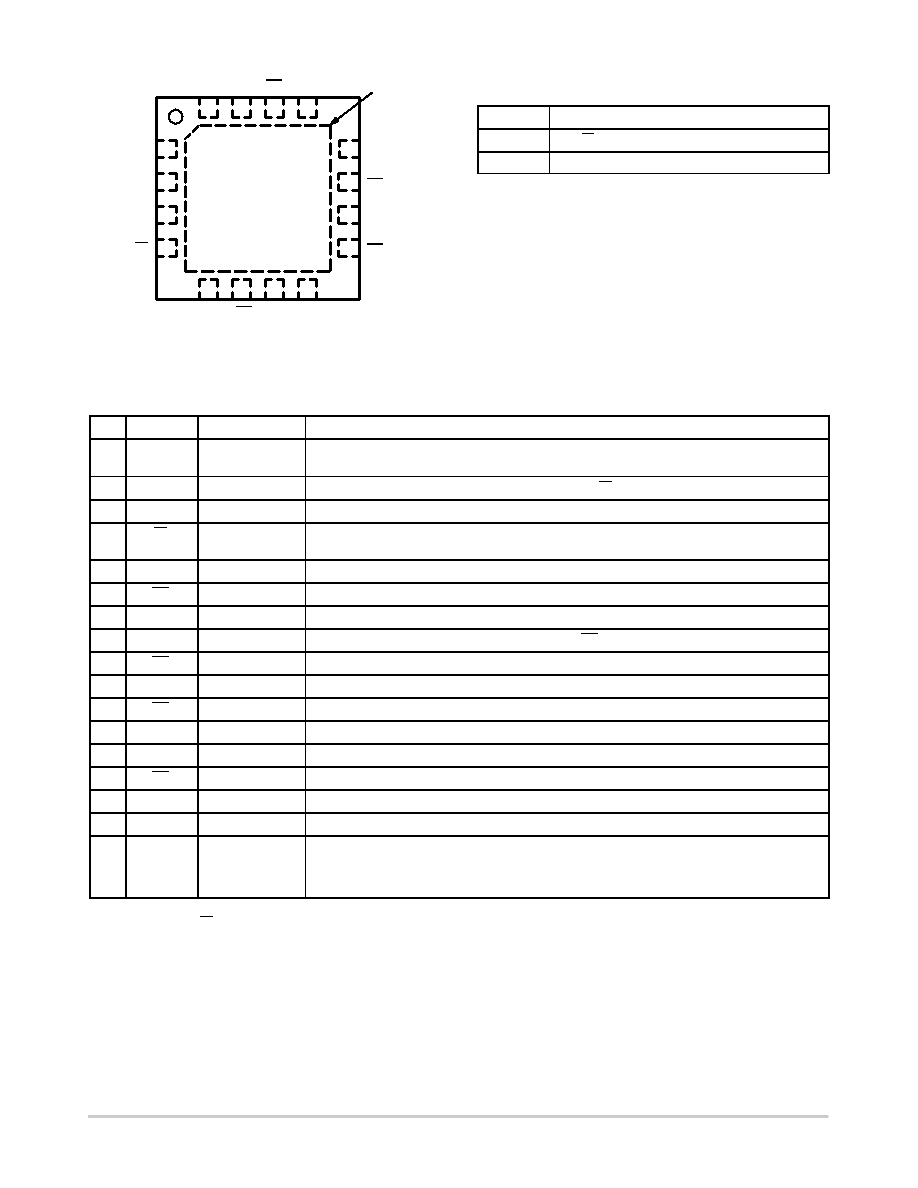

Figure 2. QFN16 Pinout (Top View)
Table 1. EQUALIZER ENABLE FUNCTION
EQEN
Function
0
IN / IN Inputs Bypass the Equalizer section
1
Inputs flow through the Equalizer
Table 2. PIN DESCRIPTION
Pin
Name
I/O
Description
1
IN
LVPECL, CML,
LVDS Input
Noninverted Differential Input. Note 1.
2
VT
Internal 100 W Centertapped Termination Pin for IN / IN
3
VREFAC
Output Voltage Reference for CapacitorCoupled Inputs, only
4
IN
LVPECL, CML,
LVDS Input
Inverted Differential Input. Note 1.
5
EQEN
LVCMOS Input
Equalizer Enable Input; pin will default LOW when left open (has internal pulldown resistor)
6
Q3
CML Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
7
Q3
CML Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
8
VCCO
1.8 V or 2.5 V Positive Supply Voltage for the Qn / Qn CML Outputs
9
Q2
CML Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
10
Q2
CML Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
11
Q1
CML Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
12
Q1
CML Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
13
VCC
2.5 V Positive Supply Voltage for the core
14
Q0
CML Output
Inverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
15
Q0
CML Output
Noninverted Differential Output. Typically Terminated with 50 W Resistor to VCC.
16
GND
Negative Supply Voltage
EP
The Exposed Pad (EP) on the QFN16 package bottom is thermally connected to the die for
improved heat transfer out of package. The exposed pad must be attached to a heatsinking
conduit. The pad is electrically connected to the die, and must be electrically and thermally con-
nected to GND on the PC board.
1. In the differential configuration when the input termination pin (VT) is connected to a common termination voltage or left open, and if no signal
is applied on IN / IN input, then, the device will be susceptible to selfoscillation.
2. All VCC, VCCO and GND pins must be externally connected to a power supply for proper operation.
