PACGAME1

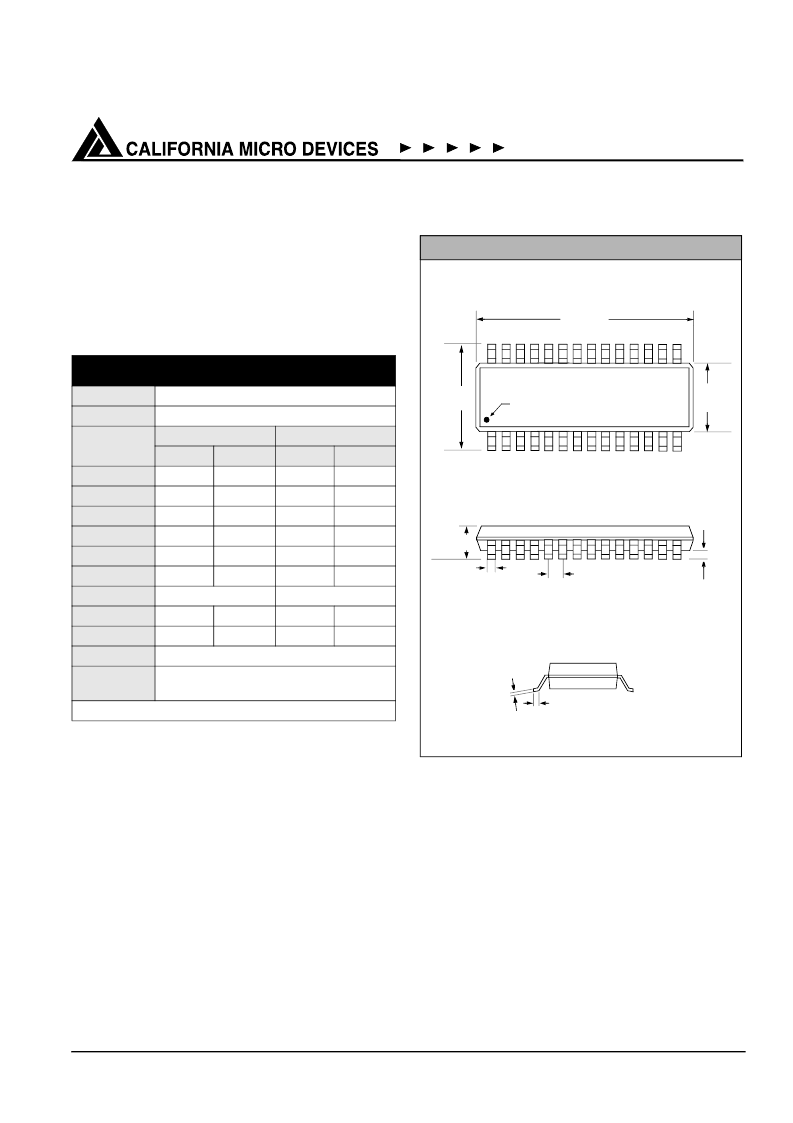

Mechanical Details
QSOP Mechanical Specifications:
PACGAME1 devices are packaged in 28-pin QSOP
packages. Dimensions are presented below.
For complete information on the QSOP-28 package,
see the California Micro Devices QSOP Package Infor-
mation document.
* This is an approximate amount which may vary.
Package Dimensions for QSOP-28
PACKAGE DIMENSIONS
Package
Pins
QSOP (JEDEC name is SSOP)
28
Dimensions
Millimeters
Min
Inches
Max
Min
Max
A
A1
1.35
1.75
0.053
0.069
0.10
0.25
0.004
0.010
B
C
0.20
0.30
0.008
0.012
0.18
0.25
0.007
0.010
D
E
9.80
9.98
0.386
0.393
3.81
3.98
0.150
0.157
e
H
0.64 BSC
0.025 BSC
5.79
6.20
0.228
0.244
L
0.40
1.27
0.016
0.050
# per tube
50 pieces*
# per tape
and reel
2500 pieces
Controlling Dimensions: inches
Mechanical Package Diagrams
E
D
H
TOP VIEW
L
END VIEW
C
e
B
A
A1
SEATING
PLANE
SIDE VIEW
5
6
7
8
9
10
11
12
1
2
3
4
24 23
22 21
20
19
18
17
28
27
26
25
Pin 1 Marking
13
14
16
15
