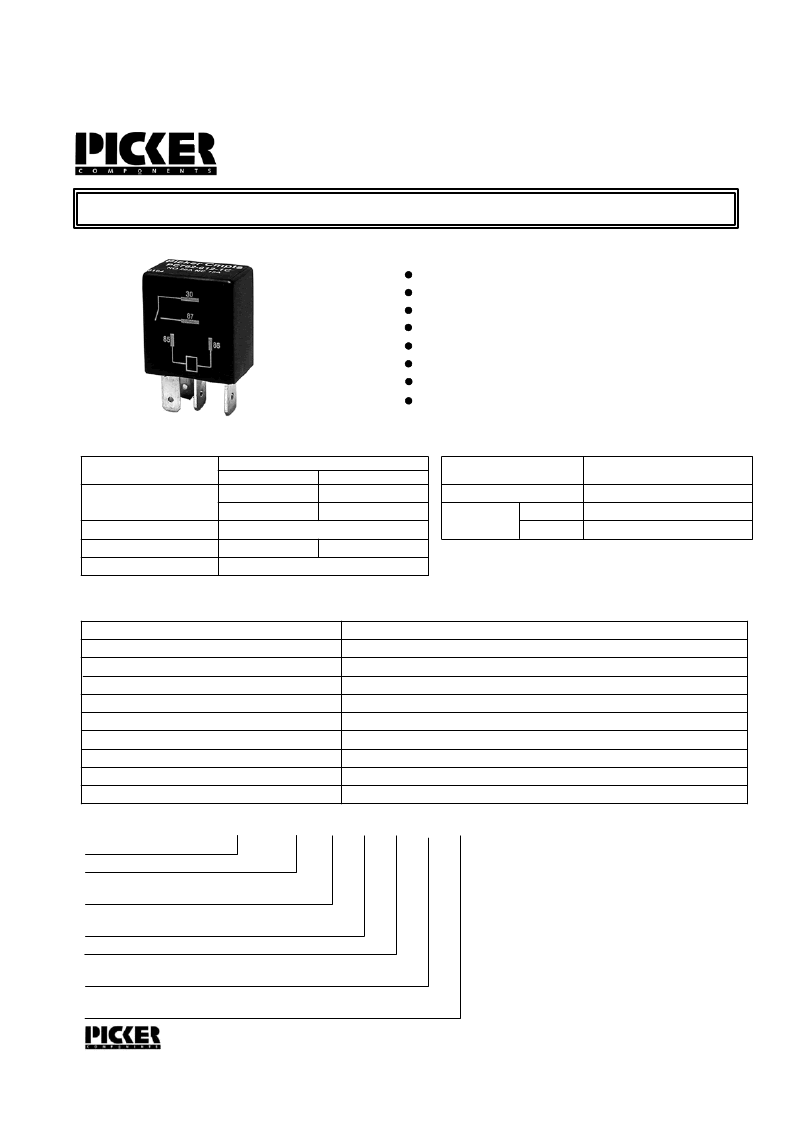

Micro Automotive Plug In / PCB Power Relay
FEATURES
Micro size plug-in design
1 A, 1 B and 1 C contact forms available
Contact switching capacity up to 90 Amps
30 Amps continuous carrying capacity
Up to 125 degrees C operating temperature
PC Board version available
Sockets available from Picker Components
Internal Diode or Resistor available
PC782
Max. Switching Voltage
Current Dependent, see curve page 2
1 Form A, 1 Form B or 1 Form C
Normally Open
CONTACT RATINGS
CHARACTERISTICS
Operate Time
9 ms. typical
Release Time
Insulation Resistance
7 ms. typical
100 megohms min, at 500VDC, 50%RH
Dielectric Strength
500 Vrms, 1 min. between coil and contacts
Shock Resistance
20 g, 11ms, functional; 200 g, destructive
Vibration Resistance
DA 1.27 mm, 10 - 40 Hz; 40-70 Hz: 5 g; DA 0.5mm, 70-100 Hz; 100-500 Hz: 10 g.
Power Consumption
1.6 W approx.
Ambient Temperature Range
-40 to 125 degrees C operating, -40 to 155 storage
Weight
Plug-In: 14 grams; PCB: 12 grams approx.
Sales: Call Toll Free (888)997-3933 Fax (818) 342-5296 email: pickerwest@sbcglobal.net URL: pickercomponents.com
3220 Commander Drive, Suite 102, Carrollton, Texas 75006
PC782 Rev B 4-13-04
PAGE 1
ORDERING INFORMATION
Example:
PC782
Model
Contact Form
1A, 1B or 1C
Mounting Version
Nil: Plug-IN; P: PCB
-1C
Parallel Component
Nil: None; D: Diode; R: Resistor
-P
CONTACT DATA
Material
Initial Contact Resistance
Service Life
Mechanical
Electrical
AgSnOInO (Silver Tin Oxide Indium Oxide)
100 milliohms max @ 0.1A, 6VDC
1 X 10
7
2 X 10
5
Operations
Operations
Coil Voltage
Enclosure
C: Dust Cover, S: Sealed Case
-12
Contact Form
Max Switching Current
Break 30 Amps
Make 90 Amps
30 Amps
AgNiO 15 (Silver Nickel Oxide 15%)
Max. Continuous Current
Minimum Load
0.1 A @ 12 VDC
S
Drop Resistance
1 Meter height drop on concrete
Normally Closed
Make 20 Amps
Break 15 Amps
20 Amps
-R
