Frame Engine and Datalink Manager
To order documentation,
send email to:
document@pmc-sierra.com
or contact the head office,
Attn: Document Coordinator
All product documentation is
available on our web site at:
http://www.pmc-sierra.com
For corporate information,
send email to:
info@pmc-sierra.com
PMC-1991477 (r2)
Copyright PMC-Sierra, Inc. 2001. All rights reserved.
S/UNI is a registered trademark of PMC-Sierra. Any-PHY,
SPECTRA-622, TEMUX-84, FREEDM-84A1024, AAL1gator,
SBI, and PMC-Sierra are trademarks of PMC-Sierra, Inc.
PROPRIETARY AND CONFIDENTIAL TO PMC-SIERRA, INC., AND FOR ITS CUSTOMERS
’
INTERNAL USE
Preliminary
PM7389 FREEDM 84A1024
HDLC
Support for up to 1024 bidirectional
HDLC channels, with individual HDLC
channel speeds ranging from 56 Kbit/s
to 52 Mbit/s. In a channelized
application, the number of time-slots
assigned to an HDLC channel is
programmable from 1 to 24 (for T1/J1)
and from 1 to 31 (for E1).
The 1024 HDLC channels can be
assigned to a mixture of physical links
via the 19.44 MHz SBI interface. The
SBI transports the equivalent of 3 STS-
1 synchronous payload envelopes
(SPE). Each STS-1 SPE can be
individually configured to carry 28
T1/J1s, 21 E1s or 1 DS3.
For each channel, supports
programmable flag sequence detection
and generation, bit stuffing and de-
stuffing, and validation and generation
of either CRC-CCITT or CRC-32 frame
check sequences.
For each channel, the receiver checks
for packet abort sequences, octet
aligned packet length and for minimum
and maximum packet length.
INTERFACES
52 MHz 16 bit Any-PHY Level 2 packet
interface for transfer of packet, frame
or fragment data using an external
controller. The interface is capable of
supporting full datagram transfer on a
per Any-PHY channel basis, or
fragmented packets or frames on a per
Any-PHY channel basis.
A 19.44 MHz SBI bus supporting up to
84 links.
3 separate clock and data interfaces to
support 3 links of arbitrary data rate up
to 52 MHz (e.g., DS3/E3). The device
can be configured to process data from
either the clock and data interfaces or
from the SBI on a per clock-data-
link/SPE basis.
A 100 MHz, 48-bit SDRAM interface
for ingress and egress per
packet/fragment storage.
A 100 MHz, 32-bit SDRAM interface
for ingress re-sequencing data.
structures.
A 100 MHz, 36-bit SSRAM interface
for Ingress/Egress Context storage.
Provides a standard 5 signal P1149.1
JTAG test port for boundary scan.
A 32-bit microprocessor interface for
configuration and status monitoring.
TECHNOLOGIES
40 mm x 40 mm, 520 pin (1.27 mm
pitch) enhanced ball grid array (SBGA)
package.
Low power 0.18 mm CMOS
technology using 1.8 V core power and
3.3 V I/O.
APPLICATIONS
IETF PPP interfaces for routers.
Frame Relay interfaces for ATM or
Frame Relay switches and
multiplexers.
Internet/Intranet access equipment.

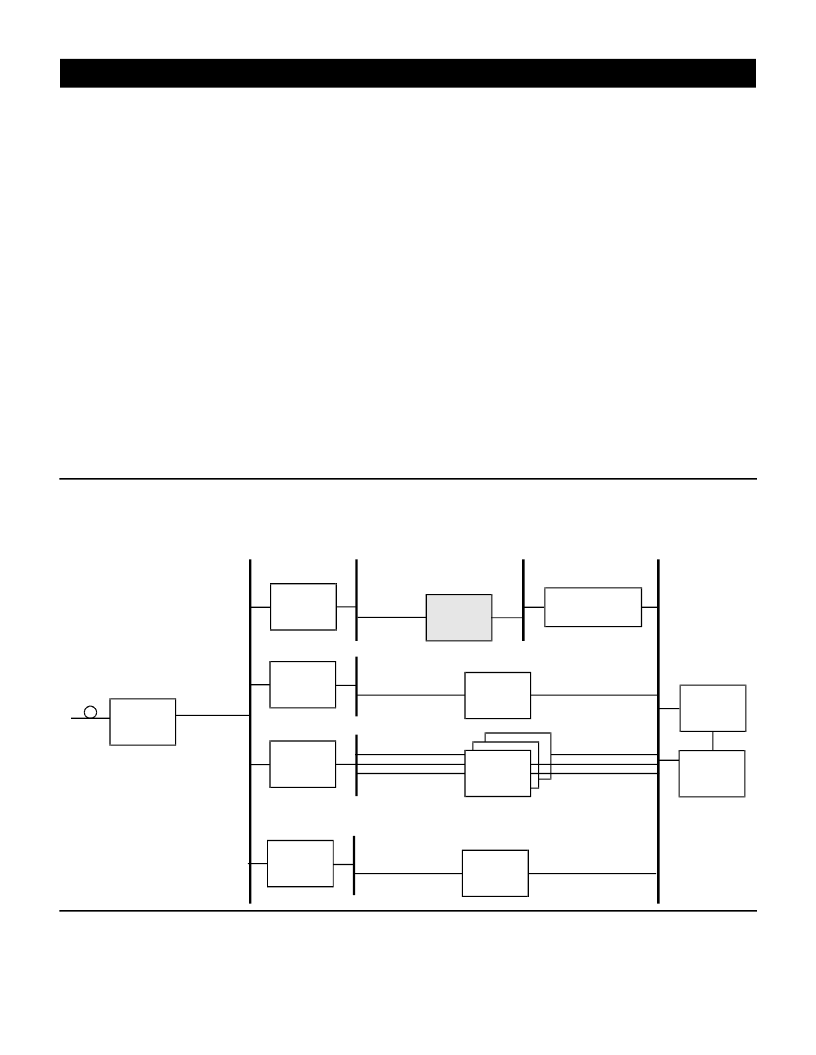

TYPICAL APPLICATION
OC-12 MULTISERVICE ARCHITECTURE
PM73122
AAL132
32
PAAL1gator-
AAL1g32
OC-12
TelecomBus
SBI
Any-PHY
(Packet)
Any-PHY
(Cell)
PM5313
SPECTRA-
622
PM7341
S/UNI-IMA-
84
PM7389
FREEDM-
84A1024
Packet/Cell
Internetworking
Function
A
A
PM7324
S/UNI-
ATLAS
PM7326
S/UNI-APEX
PM8316
TEMUX-84
PM8316
TEMUX-84
PM8316
TEMUX-84
VoATM DSP
PM8316
TEMUX-84
H-MVIP
