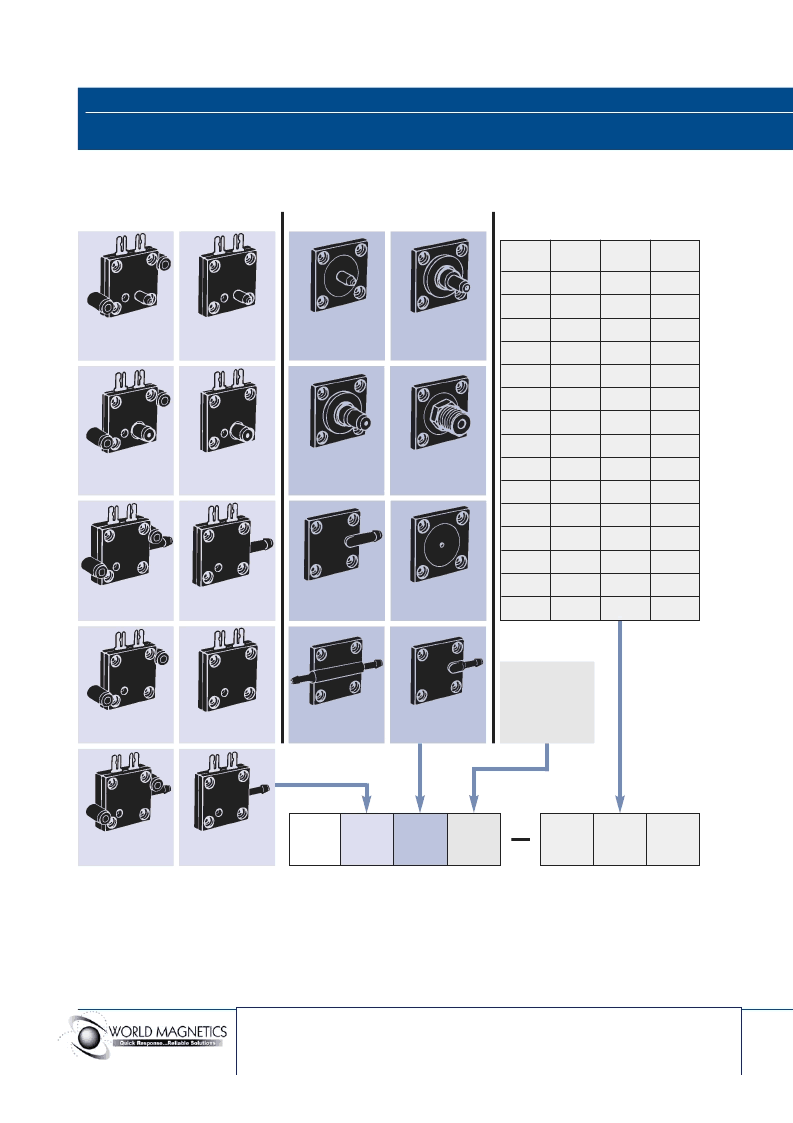

WORLD MAGNETICS ULTRA SENSITIVE PRESSURE SWITCHES
PSF101 Series
for sensing pressure, vacuum & differential pressure
5
DESIGNFLEX
OPTIONS
you can choose from these available options to custom-design a pressure switch to suit your needs.
With World Magnetics’ exclusive DesignFLEX
feature,
3
Smooth Port
.250" Diameter
for 7/32" ID Tubing
w/Mtg. Lugs
4
Smooth Port
.250" Diameter
for 7/32" ID Tubing
w/o Mtg. Lugs
5
Barbed Port
for 3/16
" ID Tubing
w/Mtg. Lugs
7
No Port
(.060" Vent Hole)
w/Mtg. Lugs
9
Barbed Port
for 1/8" ID Tubing
w/Mtg. Lugs
0
Barbed Port
for 1/8" ID Tubing
w/o Mtg. Lugs
6
Barbed Port
for 3/16
" ID Tubing
w/o Mtg. Lugs
8
No Port
(.060" Vent Hole)
w/o Mtg. Lugs
Low Port/Housing Options
1
Smooth Port
.156" Diameter
for 1/8" ID Tubing
2
Smooth Port
.187" Diameter
for 5/32" ID Tubing
3
Smooth Port
.250" Diameter
for 7/32" ID Tubing
4
1/8"
NPT Port
5
Barbed Port
for 3/16
" ID Tubing
6
No Port
(.060
"
Vent Hole)
High Port/Cover Options
Pressure Set Point Options
For higher Pressure Set Point, consult factory.
1
Polyurethane
(standard)
2
Teflon
(optional)
Option
No.
005
010
015
020
030
040
060
080
100
120
150
200
300
400
500
In.H
2
O
mbar
PSI
.1 - .5
.25 - 1.25 .004- .018
1.0
2.49
.036
1.5
3.73
.054
2.0
4.97
.072
3.0
7.46
.108
4.0
9.95
.144
6.0
14.92
.217
8.0
19.89
.289
10.0
24.86
.361
12.0
29.84
.433
15.0
37.30
.541
20.0
49.73
.722
30.0
74.59
1.083
40.0
99.46
1.444
50.0
124.32
1.804
PSF101
Series
Number
Low Port/
Housing
Option
Number
High Port/
Cover
Option
Number
Diaphragm
Option
Number
8
Three Digit Pressure Set Point
Option Number
Example:
8111-020
= PSF101 Series ultra sensitive pressure switch with Low Port/Housing, .156" Diameter, Smooth
Port with Mounting Lugs High Port/Cover, .156" Diameter, Smooth Port Standard Polyurethane Diaphragm
Pressure Set Point is factory-set at 2" H
2
O
DESIGN GUIDE
Choose one option number from each of
the above categories and arrange in the
sequence shown here.
Diaphragm
Options
7
Flow-Thru
Barbed Port
for 1/8
" ID Tubing
8
Barbed Port
for 1/8
" ID Tubing
2
Smooth Port
.156" Diameter
for 1/8" ID Tubing
w/o Mtg. Lugs
1
Smooth Port
.156" Diameter
for 1/8" ID Tubing
w/Mtg. Lugs
