For technical support and more information, see inside back cover or visit www.ti.com

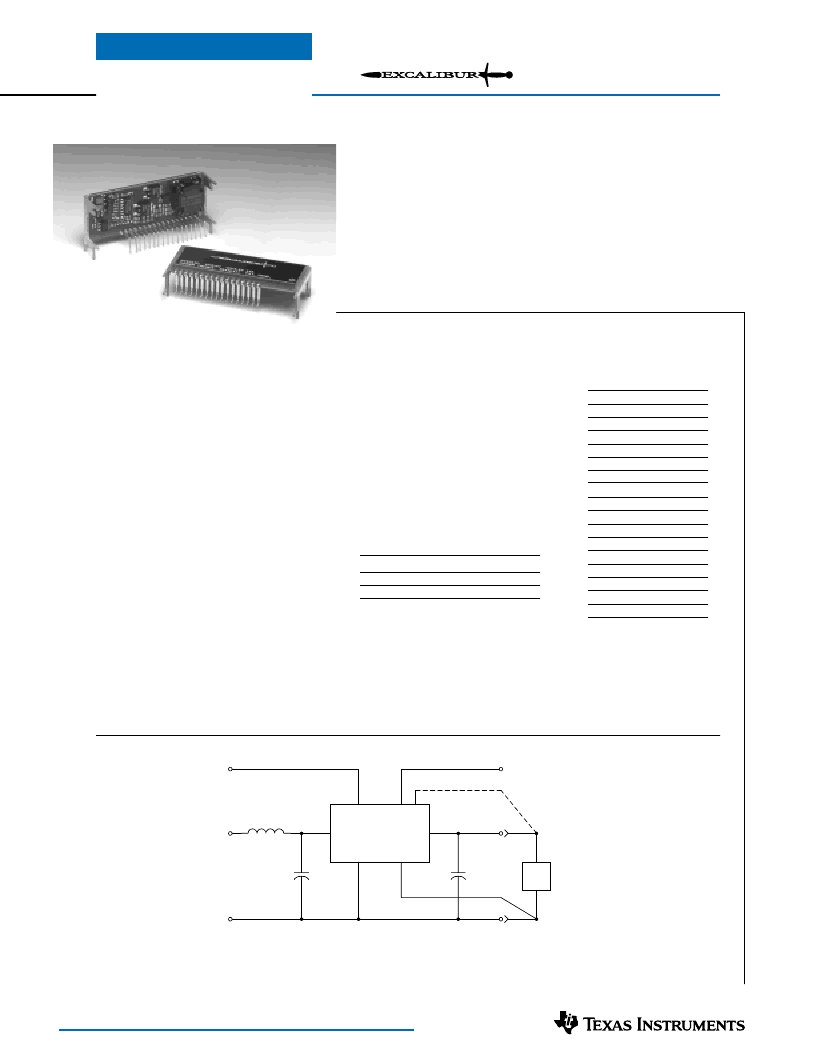

Standard Application
Features
13-A Output Current
Single Device: 3.3V/5V Input
90% Efficiency (PT6715)
On/Off Standby Function
Differential Remote Sense
Adjustable Output Voltage
Short Circuit Protection
17-pin Space-Saving Package
Solderable Copper Case
Pin-Out Information
Pin Function
1
V
o
Adjust
2
STBY*
3
Do Not Connect
4
V
in
5
V
in
6
V
in
7
Remote Sense Gnd
8
GND
9
GND
10
GND
11
GND
12
GND
13
V
out
14
V
out
15
V
out
16
V
out
17
Remote Sense V
out
*
For further information, see
application notes.
Description
The PT6715 series of power modules
are a 13-A rated integrated switching
regulator (ISR), housed in a 17-pin space
saving solderable copper package. These
modules will operate off either a 5V or
3.3V input power bus to provide a high-
performance low-voltage power source for
the industry’s latest high-speed, DSPs,
μPs, and bus drivers. This allows for the
easy integration of these new low-voltage
ICs into existing 3.3V or 5V systems with-
out re-designing the central power supply.
The series includes the standard output
bus voltage options, ranging from 1.0V
to 3.3V. Each output voltage option has
a limited adjust range.
Features include a Standby (On/Off)
function, a differential output Remote
Sense, and short circuit protection. The
modules are available in both through-
hole and surface mount configurations.
PT Series Suffix
(PT1234
x
)
Case/Pin
Configuration
Vertical
Horizontal
SMD
* Previously known as package styles 1340/50.
(Reference the applicable package code drawing
for the dimensions and PC board layout)
Order
Suffix
N
A
C
Package
C ode *
(EMD)
(EMA)
(EMC)
Ordering Information
PT 6715
PT 6716
PT 6717
PT 6718
PT 6719
PT 6714
= 3.3 Volts
= 2.5 Volts
= 1.8 Volts
= 1.5 Volts
= 1.2Volts
= 1.0Volts
3.3V Input Bus Capable
PT6715 Series
13-A 5V/3.3V-Input Adjustable
Integrated Switching Regulator
Cin= Required 1000μF electrolytic
Cout= Required 330μF electrolytic
= Optional 1μH input choke
PT6715
4 - 6
8 - 12
13 - 16
1μH
C
OUT
+
C
IN
+
7
17
L1
LOAD
REMOTE SENSE (+)
REMOTE
SENSE (-)
2
1
GND
V
OUT
Vout Adjust
V
IN
GND
STBY*
SLTS100B
(Revised 9/5/2002)
