www.ti.com
FEATURES
Up to 3-A Output Current
Wide-Input Voltage
(9 V to 29 V)
Wide-Output Voltage Adjust
(–15 V to –3 V)
High Efficiency (Up to 88%)
Undervoltage Lockout
Output Current Limit
Overtemperature Shutdown
Operating Temperature: –40°C to 85°C
Surface-Mount Package Available
APPLICATIONS
General-Purpose, Industrial Controls,
HVAC Systems
Test and Measurement,
Medical Instrumentation
AC/DC Adaptors, Vehicles,
Marine, and Avionics
DESCRIPTION
The PTN78060A is a series of high-efficiency, buck-boost, integrated switching regulators (ISR), that represent
the third generation in the evolution of the (PT)78NR100 series of products. In new designs, the PTN78060A
series should also be considered in place of the PT6640 series of single in-line pin (SIP) products. In all cases,
the PTN78060A has either similar or improved electrical performance characteristics. The caseless, double-sided
package has excellent thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free
compliance.
1
6
2
3
7
V
I
C2*
3x4.7 F
Ceramic
(Required)
m
C1*
100 F
Electrolytic
(Required)
m
C3*
100 F
(Required)
m
GND
GND
V
O
PTN78060A
(T
opV
iew)
*Seethe
forcapacitorrecommendation.
ApplicationInformation
#R
SET
isrequiredtoadjusttheoutputvoltagelowerthan-3V.Seethe
forvalues.
ApplicationInformation

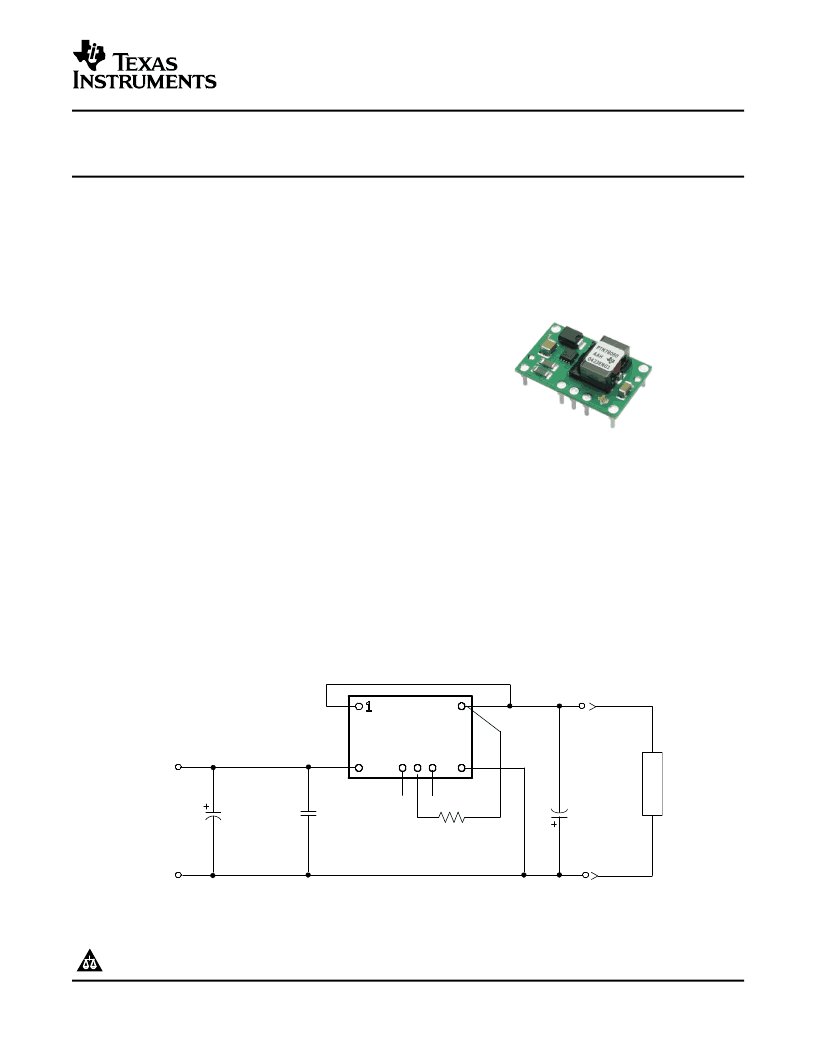

ST
ANDARD APPLICA
TION
4
5
R
S
E
T
#
1%,0.05W
(Required)
L
O
A
D
PTN78060A
SLTS245A–APRIL 2005–REVISED MAY 2005
15-W, WIDE-INPUT ADJUSTABLE POSITIVE-TO-NEGATIVE
VOLTAGE REGULATOR MODULE
Operating from a wide-input voltage range of 9 V to 29 V, the PTN78060A provides high-efficiency,
positive-to-negative voltage conversion for loads of up to 3 A. The output voltage can be set to any value over a
wide adjustment range using a single external resistor. The adjust range is –15 V to –3 V.
The PTN78060A is suited to a wide variety of general-purpose industrial applications that operate off 12-V, 24-V,
or tightly regulated 28-V dc power.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright 2005, Texas Instruments Incorporated
