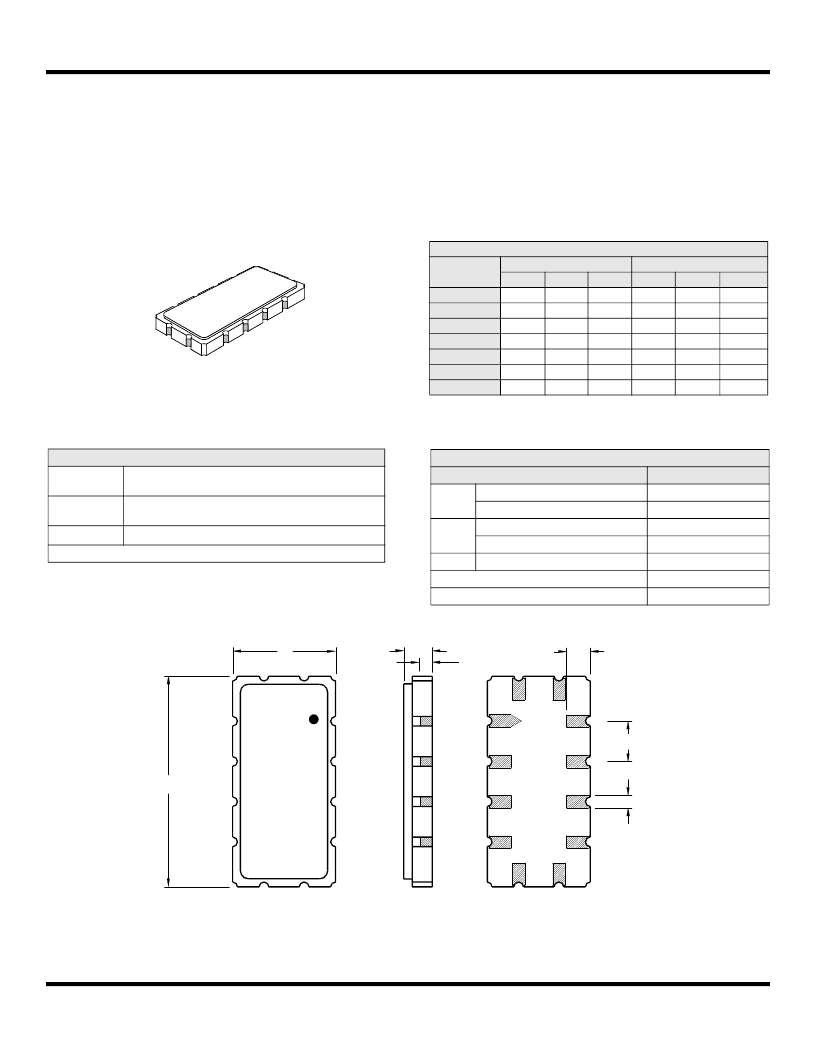

86.85 MHz SAW Filter
RF Monolithics, Inc.
RFM Europe
1999 by RF Monolithics, Inc. The stylized RFM logo are registered trademarks of RF Monolithics, Inc.
Phone: (972) 233-2903
Phone: 44 1963 251383
Fax: (972) 387-8148
Fax: 44 1963 251510
E-mail: info@rfm.com
http://www.rfm.com
PX1002 112904
SM13365-12 Case
Case Dimensions
mm
Nom
13.31
13.60
6.50
1.91
1.50
0.79
1.0
2.54
Dimension
Inches
Nom
0.524
0.256
0.075
0.059
0.031
0.039
0.100
Min
13.08
6.27
Max
Min
0.515
0.247
Max
0.535
0.268
0.079
A
B
C
D
E
H
P
6.80
2.00
12-Terminal Ceramic Surface-Mount Case
13.3 x 6.5 mm Nominal Footprint
Materials
Solder Pad
Termination
Au plating 30 - 60 uInches (76.2-152 uM) over 80-
200 uInches (203-508 uM) Ni.
Fe-Ni-Co Alloy Electroless Nickel Plate (8-11%
Phosphorus) 100-200 uInches Thick
Al
2
O
3
Ceramic
Lid
Body
Pb Free
Electrical Connections
Connection
Input or Return
Return or Input
Output or Return
Return or Output
Ground
Differential Operation
Terminals
2
3
8
9
All others
Return is ground
Return is hot
Port 1
Port 2
C
H
P (8 Places)
E (10 Places)
D
B
A
4
5
6
7
1
12
11
10
3
9
8
2
TOP VIEW
BOTTOM VIEW
2
3
8
9
1
12
11
10
4
5
6
7
