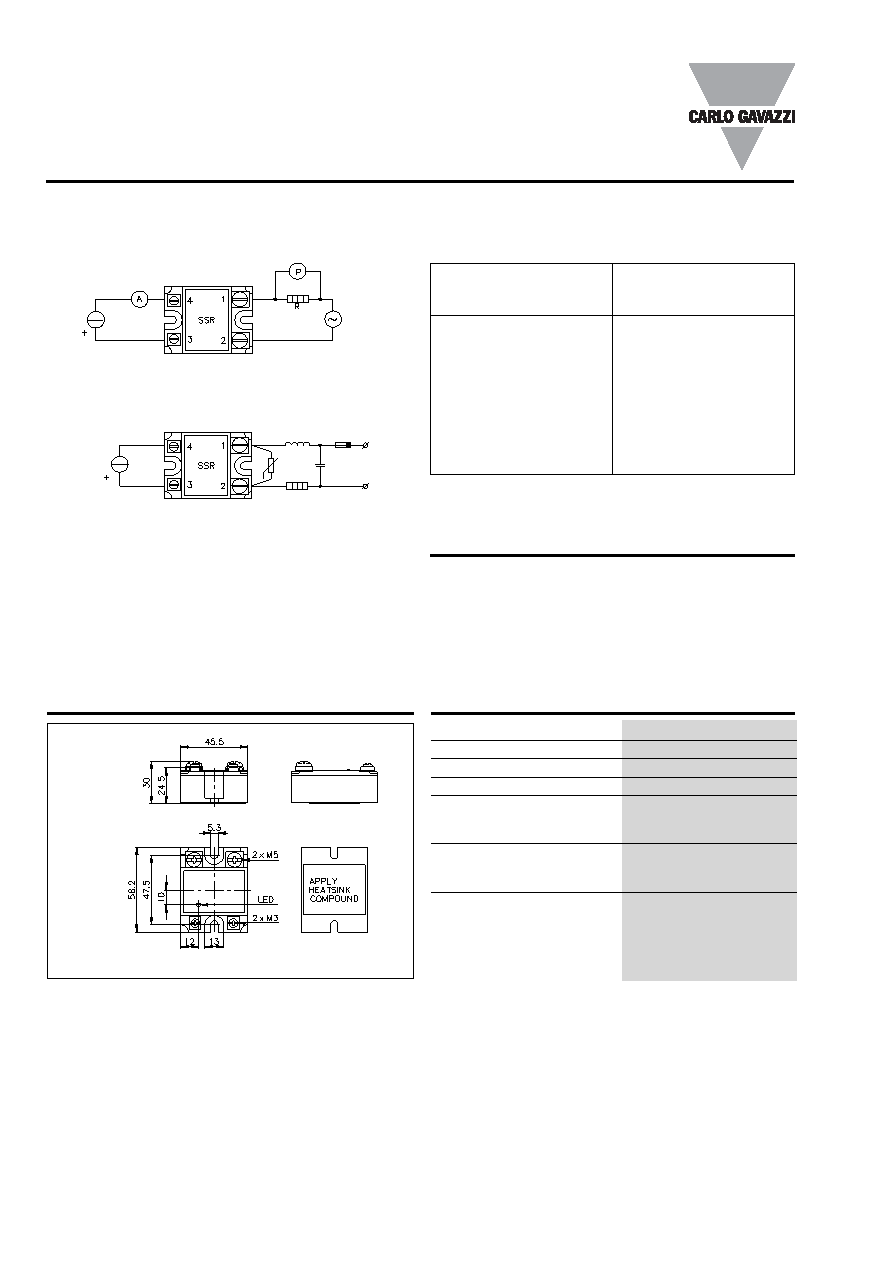

4
Specifications are subject to change without notice (30.06.1999)
RE 24.. AA 06, RE 48.. AA 12, RE 6050 AA 16
Applications
This relay is suitable for tem-
perature control or control of
lighting.
The relay can also be used for
soft turn-on of high-power in-
candescent lamps.
Load
4 to
20 mA
L
C
F
Iin
Uline
RE 24.. AA 06
UL = 230 V
RE 48.. AA 12
UL = 480 V
RE 6050 AA 16 UL = 600 V
Application hints:
L and C must be connected
as close as possible to the
SSR.
Max. unit variation:
± 5% @ Tj = 25°C
Temperature variation:
± 5% @ Tj = -20° to + 125°C
Iin [mA]
Pout [%]
typically 50/60 Hz
4
0.5
68
822
10
40
12
54
14
66
16
75
18
81
20
86
25
92
Transfer characteristics
Output power as a function of control input (4 to 20 mA)
Dimensions
**
***
*** ***
***
**
** =
± 0.4 mm
*** =
± 0.5 mm
Housing Specifications
Weight
Approx. 110 g
Housing material
Noryl GFN 1, black
Base plate
Aluminium
Potting compound
Polyurethane
Relay
Mounting screws
M5
Mounting torque
≤ 1.5 Nm
Control terminal
Mounting screws
M3 x 6
Mounting torque
≤ 0.5 Nm
Power terminal
Mounting screws
M5 x 6
Mounting torque
≤ 2.4 Nm
Accessories
Protection cover
Heatsinks
DIN rail adapter
Varistors
Fuses
L: Optional radio interfer-
ence low-pass filter com-
ponent
C: Optional radio interfer-
ence low-pass filter com-
ponent
For further information refer
to "General Accessories".
