參數資料
| 型號： | REG104FA-2.7/500 |
| 元件分類： | 固定正電壓單路輸出LDO穩壓器 |
| 英文描述： | 2.7 V FIXED POSITIVE LDO REGULATOR, 0.46 V DROPOUT, PSSO5 |
| 封裝： | D2PAK-5 |
| 文件頁數： | 8/14頁 |
| 文件大?。?/td> | 246K |
| 代理商： | REG104FA-2.7/500 |
REG104
3
SBVS025A

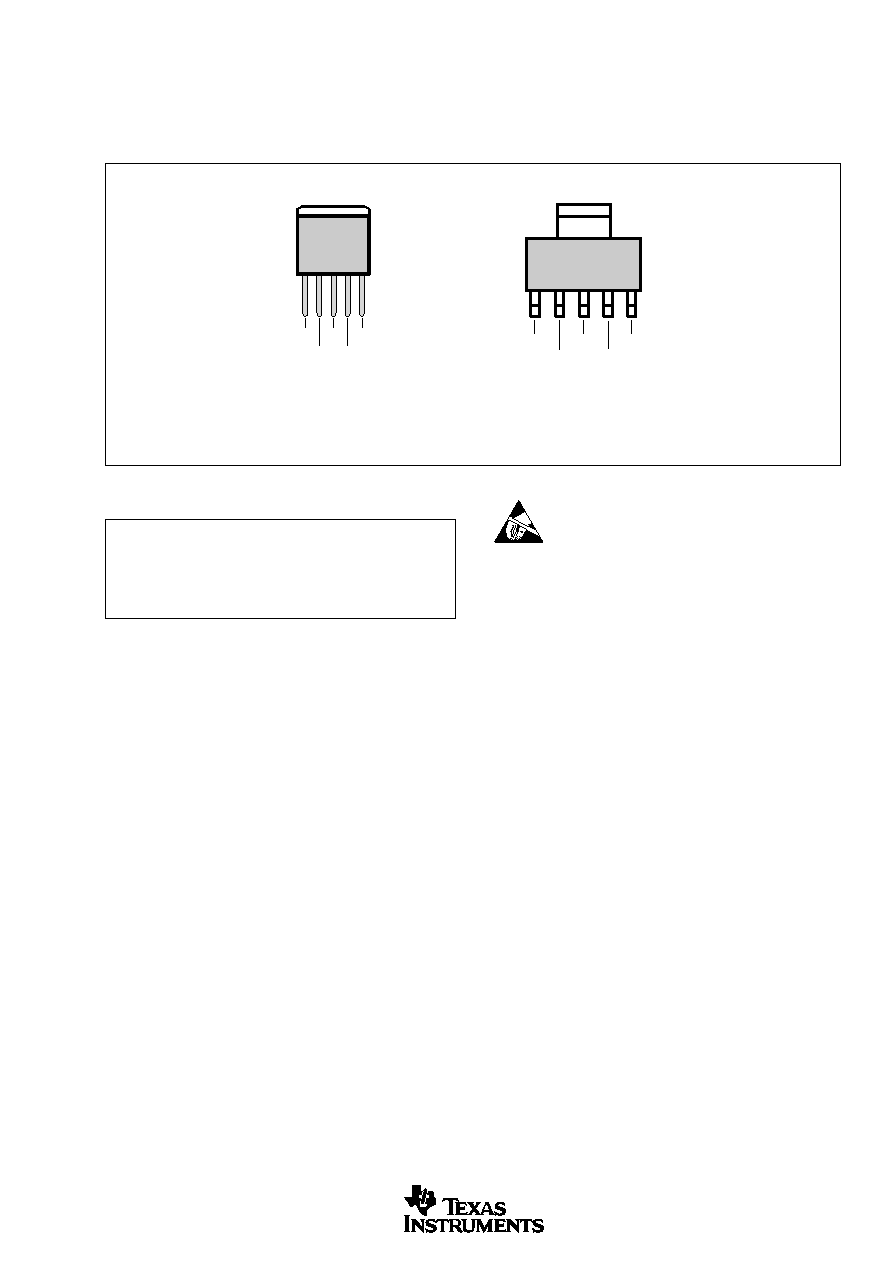

PIN CONFIGURATIONS
Top View
ABSOLUTE MAXIMUM RATINGS(1)
Supply Input Voltage, VIN ....................................................... –0.3V to 16V
Enable Input ............................................................................ –0.3V to VIN
Output Short-Circuit Duration ...................................................... Indefinite
Operating Temperature Range ....................................... –55
°C to +125°C
Storage Temperature Range .......................................... –65
°C to +150°C
Junction Temperature ..................................................... –55
°C to +150°C
Lead Temperature (soldering, 3s, SOT, and DDPAK) ........................ +240
°C
NOTE: (1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods may degrade
device reliability.
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
ESD damage can range from subtle performance degrada-
tion to complete device failure. Precision integrated circuits
may be more susceptible to damage because very small
parametric changes could cause the device not to meet its
published specifications.
NOTE: (1) For REG104A-A: voltage setting resistor pin.
All other models: noise reduction capacitor pin.
Gnd
Enable
V
IN
NR/Adjust(1)
V
O
123 4 5
DDPAK-5
SOT223-5
(F Package)
(G Package)
Tab is Gnd
Enable
NR/Adjust(1)
Gnd
V
IN
12
3
4
5
V
OUT
