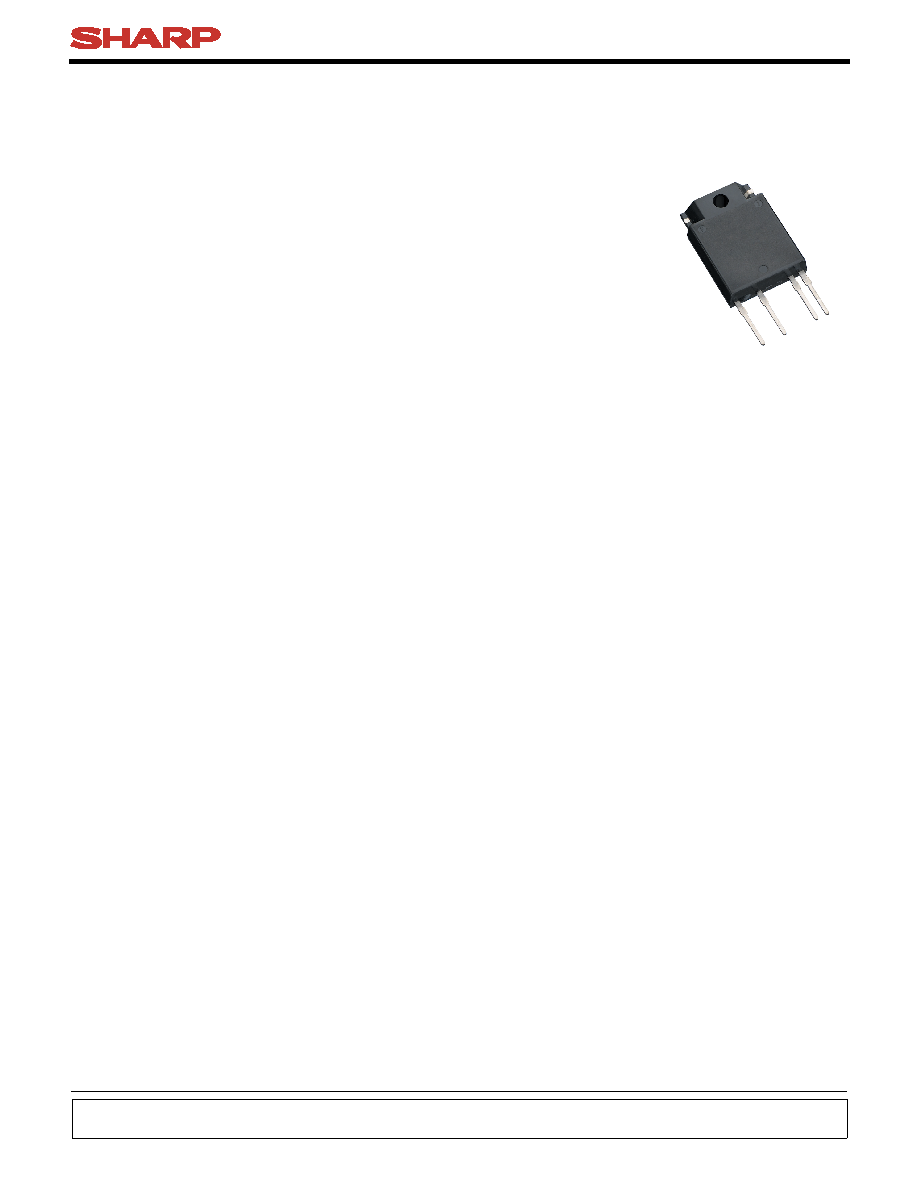

S216SE1 Series
■ Features
IT(rms)≤16A,
Reinforced Insulation Type
Non-Zero Cross type
SIP 4pin
Triac output SSR
1. Output current, IT(rms)≤16.0A
2. Non-zero crossing functionary
3. 4 pin SIP package
4. High repetitive peak off-state voltage (VDRM : 600V)
5. Reinforced insulation type (MIN. 0.4mm internal sep-
aration)
6. High isolation voltage between input and output
(Viso(rms) : 3.0kV)
7. Lead-free terminal components are also available
(see Model Line-up section in this datasheet)
8. Screw hole for heat sink
■ Description
S216SE1 Series reinforced insulation type Solid
State Relays (SSR) are an integration of an infrared
emitting diode (IRED), a Phototriac Detector and a
main output Triac. These devices are ideally suited for
controlling high voltage AC loads with solid state reli-
ability while providing 3.0kV isolation (Viso(rms)) from in-
put to output.
1
Notice The content of data sheet is subject to change without prior notice.
In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP
devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device.
S216SE1 Series
■ Agency approvals/Compliance
1. Isolated interface between high voltage AC devices
and lower voltage DC control circuitry.
2. Switching motors, fans, heaters, solenoids, and
valves.
3. Phase or power control in applications such as light-
ing and temperature control equipment.
■ Applications
1. Approved by TV EN60950 (reinforced insulation),
file No. R9051479 (as models No. S216SE1)
2. Package resin : UL flammability grade (94V-0)
Sheet No.: D4-A03401EN
Date Apr. 28. 2004
SHARP Corporation
Zero cross type is also available. (S216SE2 Series)
