Vector Modulator, 1.94 to 2.24 GHz
SA90-0001
Specifications subject to change without notice.
n
North America:
Tel. (800) 366-2266
n
Asia/Pacific:
Tel.+81-44-844-8296, Fax +81-44-844-8298
n
Europe:
Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
Visit www.macom.com for additional data sheets and product information.
V 4.00

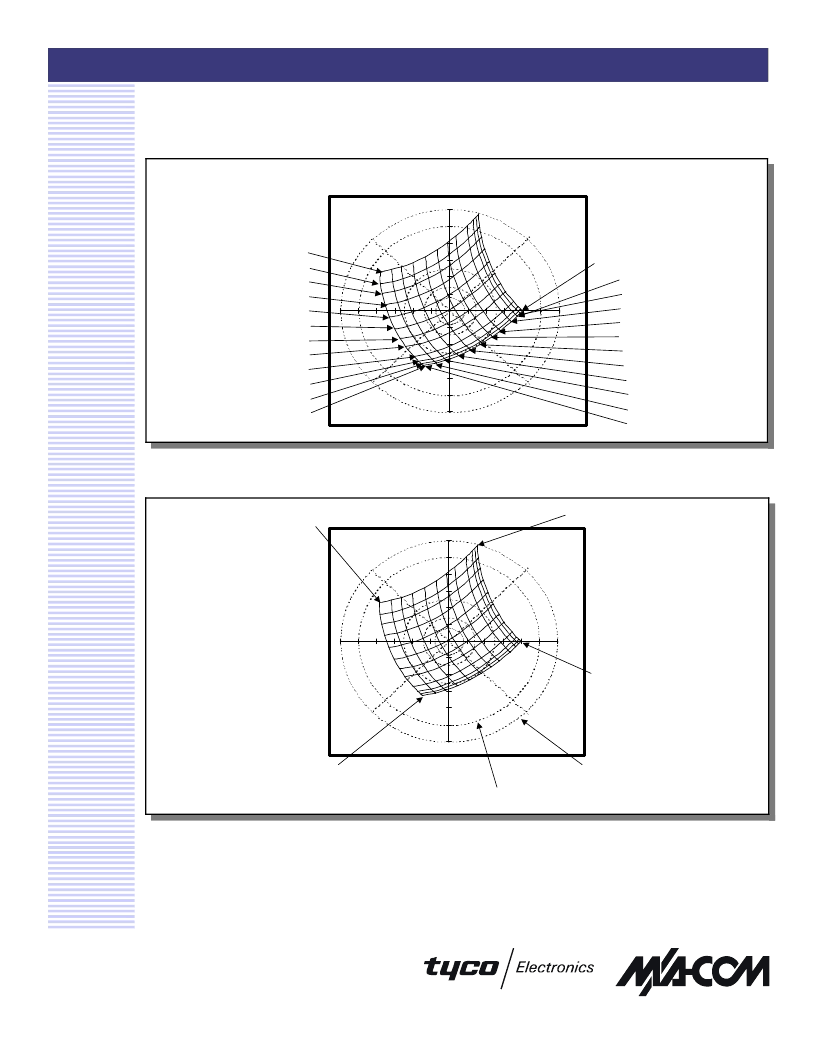

Figure 2A - Phase and Attenuation of SA90-0001 vs. Bias Current
Figure 2B
8. Tic marks on x,y axes refer to reflection coefficient in increments of 0.1. Reflection coefficients vary from -0.6 to +0.6 on both
the x and y axes.
9. The phase with the inputs to both linearizers set to +15mA is arbitrarily called zero degrees.
bias 1 = 0 μA
4 μA
9 μA
17 μA
33 μA
62 μA
112 μA
205 μA
690 μA
2.3 mA
6.7 mA
15 mA
bias 2 = 15 mA
6.7 mA
2.3 mA
690 μA
205 μA
112 μA
62 μA
33 μA
17 μA
9 μA
4 μA
0 μA
(y)
90°
45°
(x)
0°
bias 1 = 0 μA
bias 2 = 0 μA
bias 1 = 15 mA
bias 2 = 0 μA
bias 1 = 15 mA
bias 2 = 15 mA
bias 1 = 0 μA
bias 2 = 15 mA
(y)
90°
45°
(x)
0°
Reflection
coefficient = 0.5
Reflection
coefficient = 0.6
